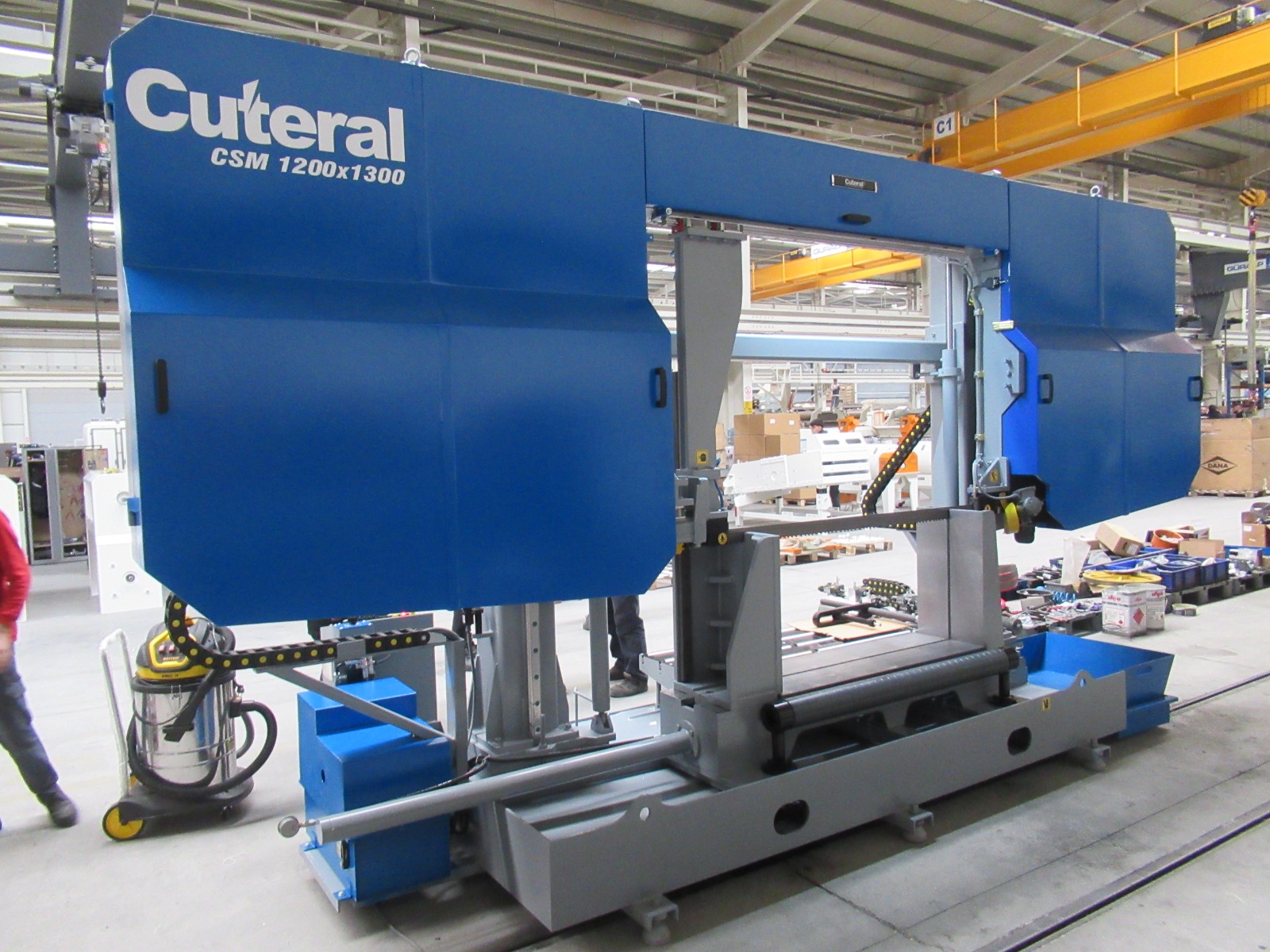

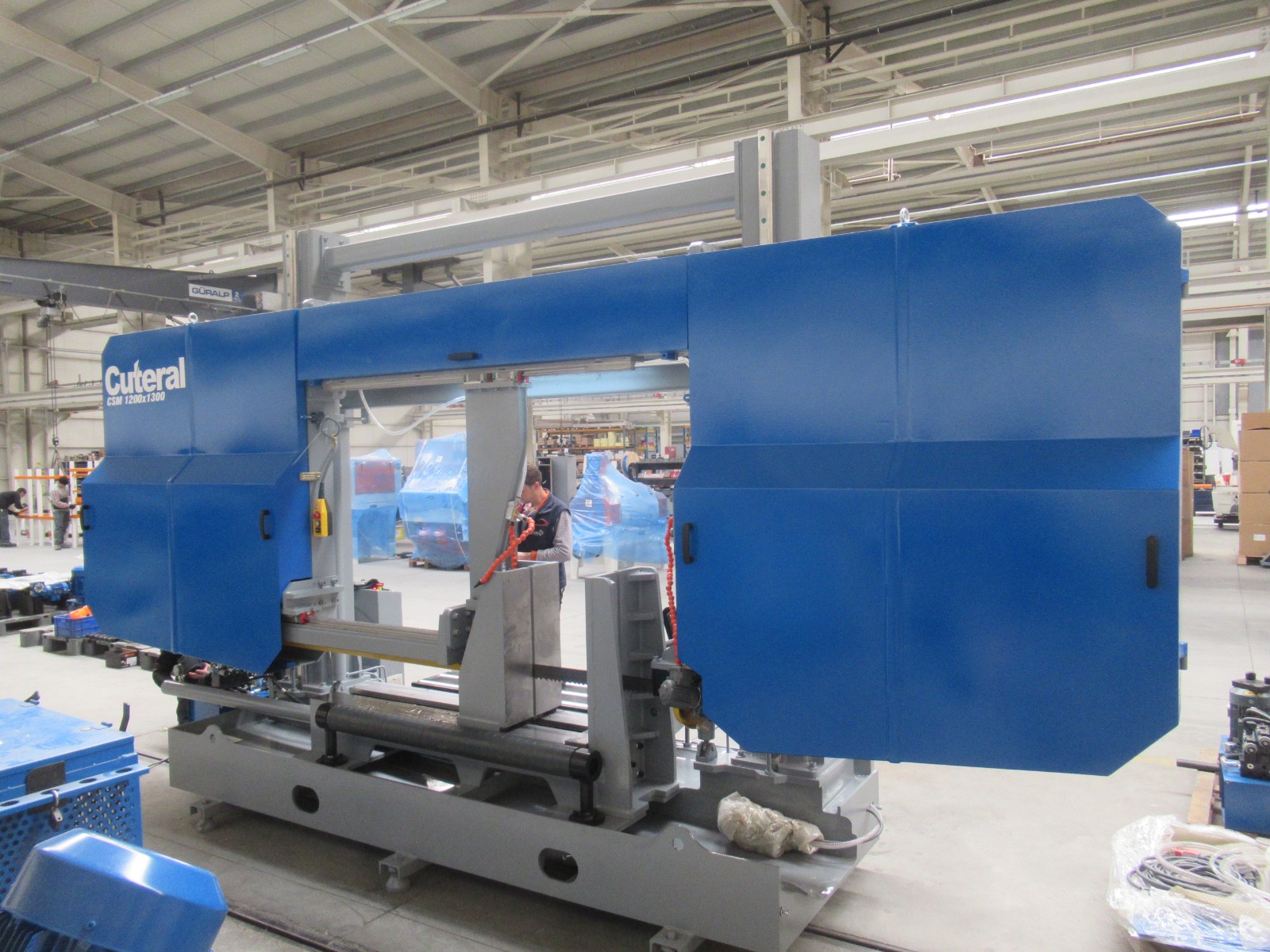

The Cuteral CSM 1200/1300 Semi-Automatic Bandsaw delivers powerful, accurate, and repeatable cutting performance for large stock materials, beams, channels, bundles, and structural steel applications.
Designed with a rigid double-column frame and hydraulic control system, this machine provides superior blade stability, smoother cutting, and long-term durability in demanding production environments.
The Cuteral CSM 1200/1300 is ideal for:
Handle large steel sections with ease:
Efficient cutting cycles with hydraulic blade movement and clamping for improved productivity.
Heavy-duty column design reduces vibration and improves cutting accuracy across large workpieces.
Optimised blade speed control helps achieve cleaner cuts across multiple material types.
Robust steel construction engineered for continuous-duty fabrication and production use.
Enhance your production workflow with optional features including:
| Cutting Capacity (mm) | Round | Square | Rectangle |
|---|---|---|---|
| 0° | 1200 mm | 1200 mm | 1200mm x 1300 mm |
| 30° L | n/a | n/a | n/a |
| 45° L | n/a | n/a | n/a |
| 60° L | n/a | n/a | n/a |
| 30° R | n/a | n/a | n/a |
| 45° R | n/a | n/a | n/a |
| 60° R | n/a | n/a | n/a |
| TECHNICAL DATA | |
|---|---|
| Blade Motor
|
10 hp – 1500 rpm
|
| Chip Brush M.
|
0.09 kw – 1500 d/dk
|
| Hydraulic Pump Motor
|
4 hp – 1500 rpm
|
| Blade size
|
67 mm x 1.6 mm x 12450 mm
|
| Blade Speed
|
100 m/dk – 328 ft/min
|
| Machine Dimensions
|
5625 mm x 3725 mm
|
| Machine Weight
|
7000 Kg
|
If you need further assistance, please don’t hesitate to give us a call or reach out to us directly.
0114 234 7352
