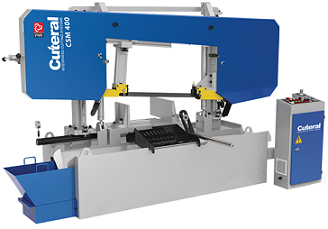

The Cuteral CSM 400 is a semi – automatic double column type bandsaw with one way mitering up to 45 degrees left.
• Blade Tensioning
• Material Feeding System
• Control Panel
• Miter Cutting
| Cutting Capacity (mm) | Round | Square | Rectangle |
|---|---|---|---|
| 0° | 400 mm | 400 mm | 400 mm x 490 mm |
| 30° L | 400 mm | 400 mm | 400 mm x 400 mm |
| 45° L | 300 mm | 300 mm | 400 mm x 300 mm |
| 60° L | n/a | n/a | n/a |
| 30° R | n/a | n/a | n/a |
| 45° R | n/a | n/a | n/a |
| 60° R | n/a | n/a | n/a |
| TECHNICAL DATA | |
|---|---|
| Blade Motor
|
5.36 hp – 1000 rpm
|
| Feeding Motor
|
Manual
|
| Hydraulic Pump Motor
|
0.5 hp – 1500 rpm
|
| Blade size
|
41 mm x 1.3 mm x 5715 mm
|
| Blade Speed
|
100 m/dk – 328 ft/min
|
| Machine Dimensions
|
3022 mm x 1975 mm
|
| Machine Weight
|
1220 Kg
|
