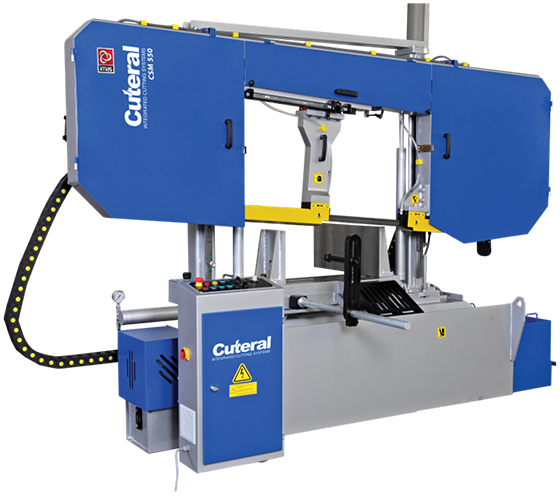

The Cuteral CSM 550 is a semi- automatic double column type bandsaw with one way mitering up to 45 degrees.
• Blade Tensioning
• Miter Cutting
• Linear Guiding
• Material Clamping System
| Cutting Capacity (mm) | Round | Square | Rectangle |
|---|---|---|---|
| 0° | 550 mm | 550 mm | 550 mm x 600 mm |
| 30° L | 460 mm | 460 mm | 550 mm x 460 mm |
| 45° L | 370 mm | 370 mm | 550 mm x 370 mm |
| 60° L | n/a | n/a | n/a |
| 30° R | n/a | n/a | n/a |
| 45° R | n/a | n/a | n/a |
| 60° R | n/a | n/a | n/a |
| TECHNICAL DATA | |
|---|---|
| Blade Motor | 5.36 hp – 1000 rpm |
| Feeding Motor | Manual |
| Hydraulic Pump Motor | 1.46 hp – 1500 rpm |
| Blade size | 41 mm x 1.3 mm x 6850 mm |
| Blade Speed | 100 m/dk – 328 ft/min |
| Machine Dimensions | 3200 mm x 2410 mm |
| Machine Weight | 2100 Kg |
