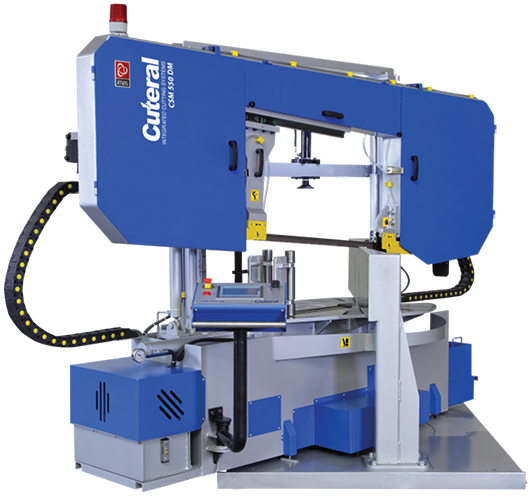

The Cuteral CSM 550/800 DM is a double miter semi – automatic double column type bandsaw. With two way mitering up to 45° left and up to 60° right.
• Touchscreen LCD
• Linear guiding column
• Blade linear guides
• Stepless blade speed setting
• Easily cleaning portable coolant reservoir and swarf bin
• Double mitre cut
• Automatic angle setting
• Precision head lowering speed
• After cutting finished automatic stop and hydraulic head lifting
• Hydraulic blade tension
• Hydraulic material clamping
• Adjustable material clamping pressure
• Steel material clamping and vices
• Coolant system from blade guides
• Steel centre housing
• Blade breakage switch, phase protection relay
• Cast iron blade pulleys
• Electrical motor with thermal protection
• Board and blade cover security switches
• Bi-metal bandsaw blade
• Blade guiding twin bearings
• Single bearing guides blade top
• Adjustable blade guides and carbide guides
• Adjustable top limit switch
• Easy hydraulic system control by manometers
• Cooling liquid and hydraulic oil level indicators
• Bundle clamping
| Cutting Capacity (mm) | Round | Square | Rectangle |
|---|---|---|---|
| 0° | 550 mm | 550 mm | 550 mm x 800 mm |
| 30° L | 550 mm | 550 mm | 550 mm x 610 mm |
| 45° L | 550 mm | 550 mm | 550 mm x 500 mm |
| 30° R | 550 mm | 550 mm | 550 x 610 mm |
| 45° R | 500 mm | 500 mm | 550 mm x 500 mm |
| 60° R | 300 mm | 300 mm | 550 x 300 mm |
| TECHNICAL DATA | |
|---|---|
| Blade Motor | 4 Kw 1500 rpm |
| Feeding Motor | Manual |
| Hydraulic Pump Motor | 1.1 Kw – 1500 rpm |
| Blade size | 51 mm x 1.6 mm x 7220 mm |
| Blade Speed | 15 – 100 |
| Machine Dimensions | 3160 mm x 2437 mm |
| Machine Weight | 4000 Kg |
| Coolant motor | 0,12 Kw 2800 rpm |
| Voltage V | 400 V |
| Max power | 5,97 kw |
