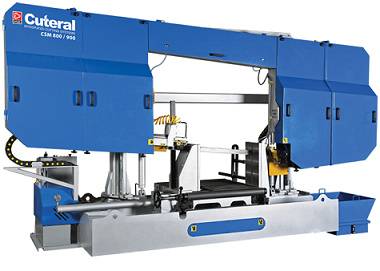

The Cuteral CSM 800 / 900 is a semi – automatic straight cutting double column type bandsaw.
• Blade Tensioning
• Chip Brush
• Linear Guiding
• Clamping System
| Cutting Capacity (mm) | Round | Square | Rectangle |
|---|---|---|---|
| 0° | 800 mm | 800 mm | 800 mm x 900 mm |
| 30° L | n/a | n/a | n/a |
| 45° L | n/a | n/a | n/a |
| 60° L | n/a | n/a | n/a |
| 30° R | n/a | n/a | n/a |
| 45° R | n/a | n/a | n/a |
| 60° R | n/a | n/a | n/a |
| TECHNICAL DATA | |
|---|---|
| Blade Motor
|
7.3 hp – 1500 rpm
|
| Feeding Motor
|
Manual
|
| Hydraulic Pump Motor
|
4 hp – 1500 rpm
|
| Blade size
|
54 mm x 1.6 mm x 9800 mm
|
| Blade Speed
|
100 m/dk – 328 ft/min
|
| Machine Dimensions
|
4406 mm x 2990 mm
|
| Machine Weight
|
3120 Kg
|
