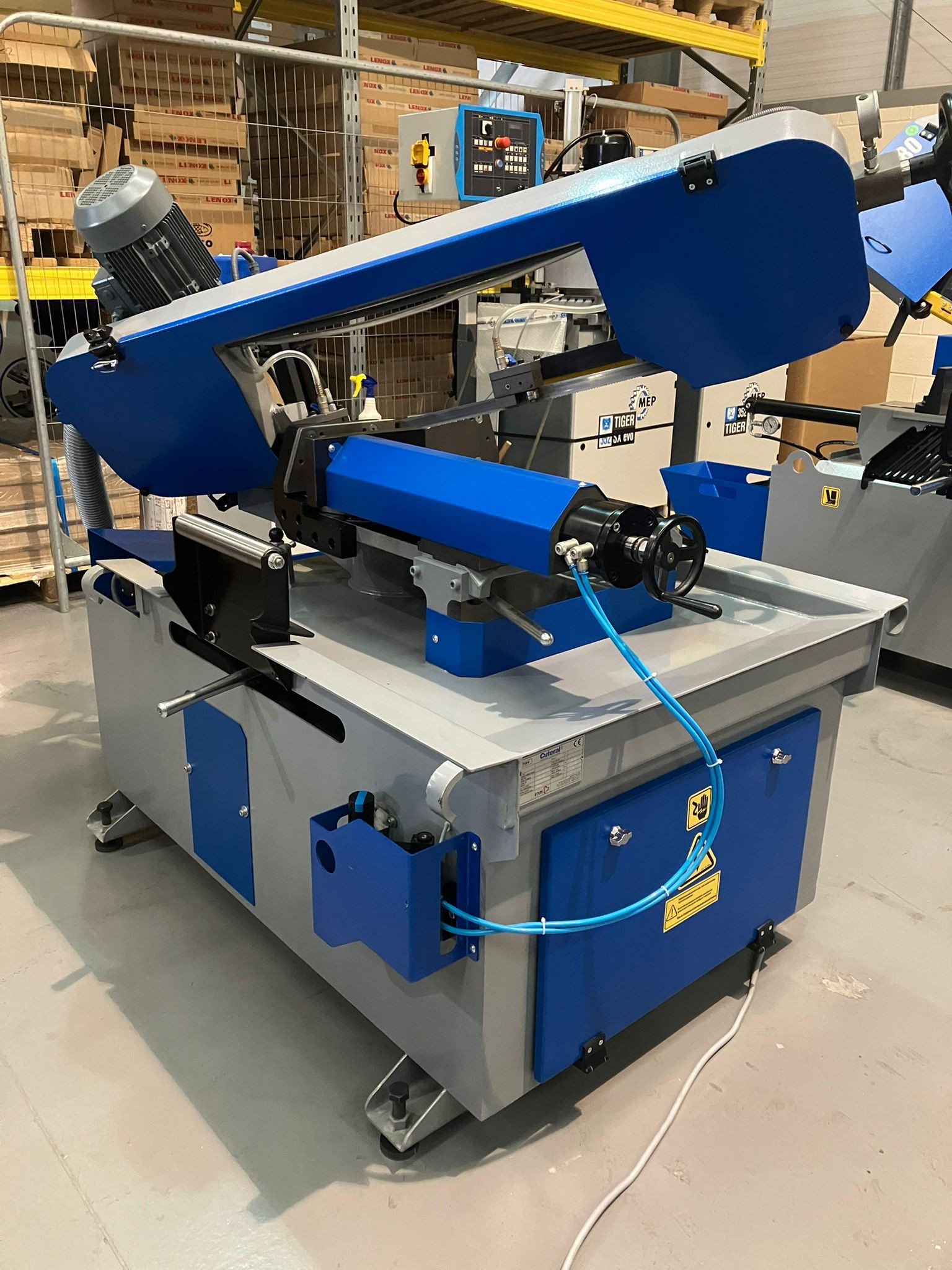

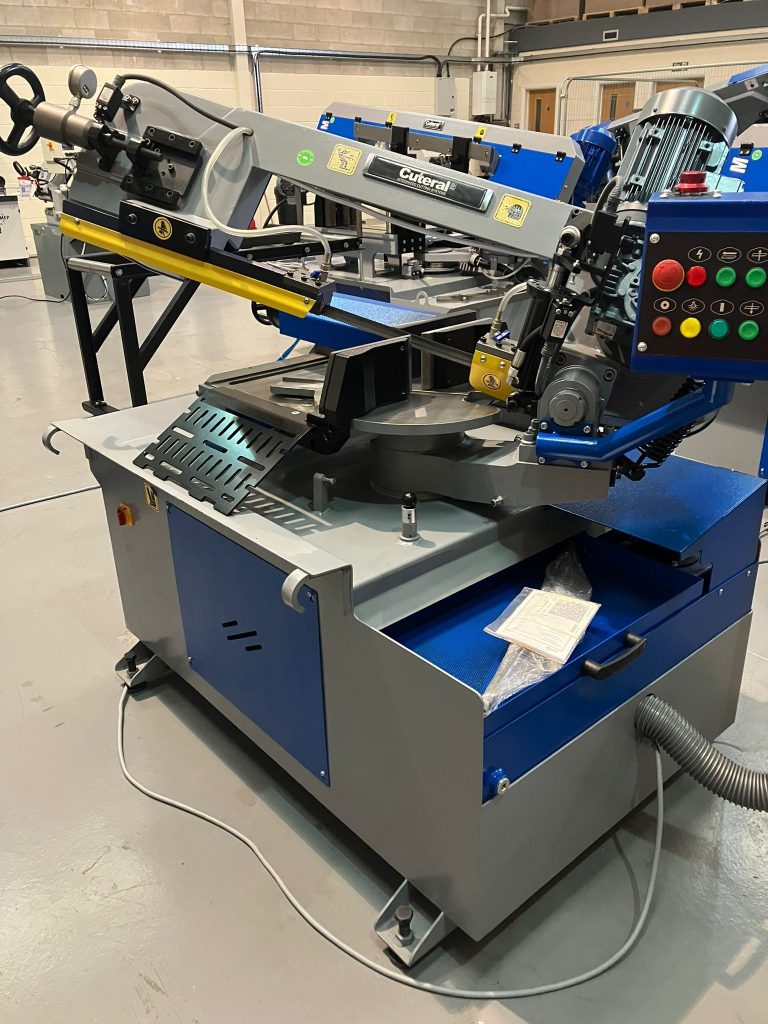

The Cuteral PSM 220/330 DM is a semi-automatic bandsaw with two way mittering, with the ability to cut 0-45° left to 0-60° right
• Material Clamping System
• Fixing Miter Degree
• Control Panel
• Miter Cutting
| Cutting Capacity (mm) | Round | Square | Rectangle |
|---|---|---|---|
| 0° | 220mm | 220mm | 220mm x 330mm |
| 30° L | 220mm | 220mm | 220mm x 330mm |
| 45° L | 220mm | 175mm | 200mm x 160mm |
| 30° R | 220mm | 220mm | 220mm x 230mm |
| 45° R | 180mm | 180mm | 210mm x 180mm |
| 60° R | 100mm | 90mm | 90mm x 90mm |
| TECHNICAL DATA | |
|---|---|
| Blade Motor | 1.47 kw – 1000 rpm |
| Feeding Motor | Manual |
| Hydraulic Pump Motor | 0.34 hp – 1500 rpm |
| Blade size | 27 mm x 0.9mm x 3175mm |
| Blade Speed | 100 m/dk – 328 ft/min |
| Machine Dimensions | 1780mm x 2060mm |
| Machine Weight | 500Kg |
If you need further assistance, please don’t hesitate to give us a call or reach out to us directly.
