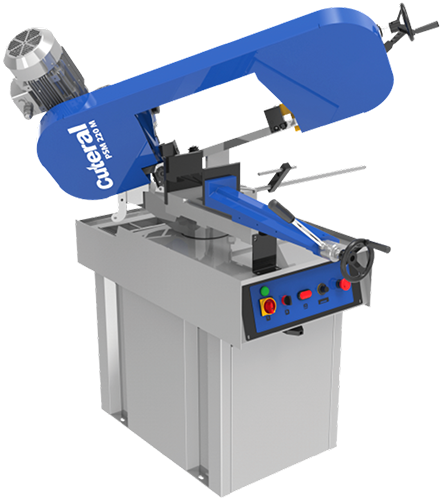

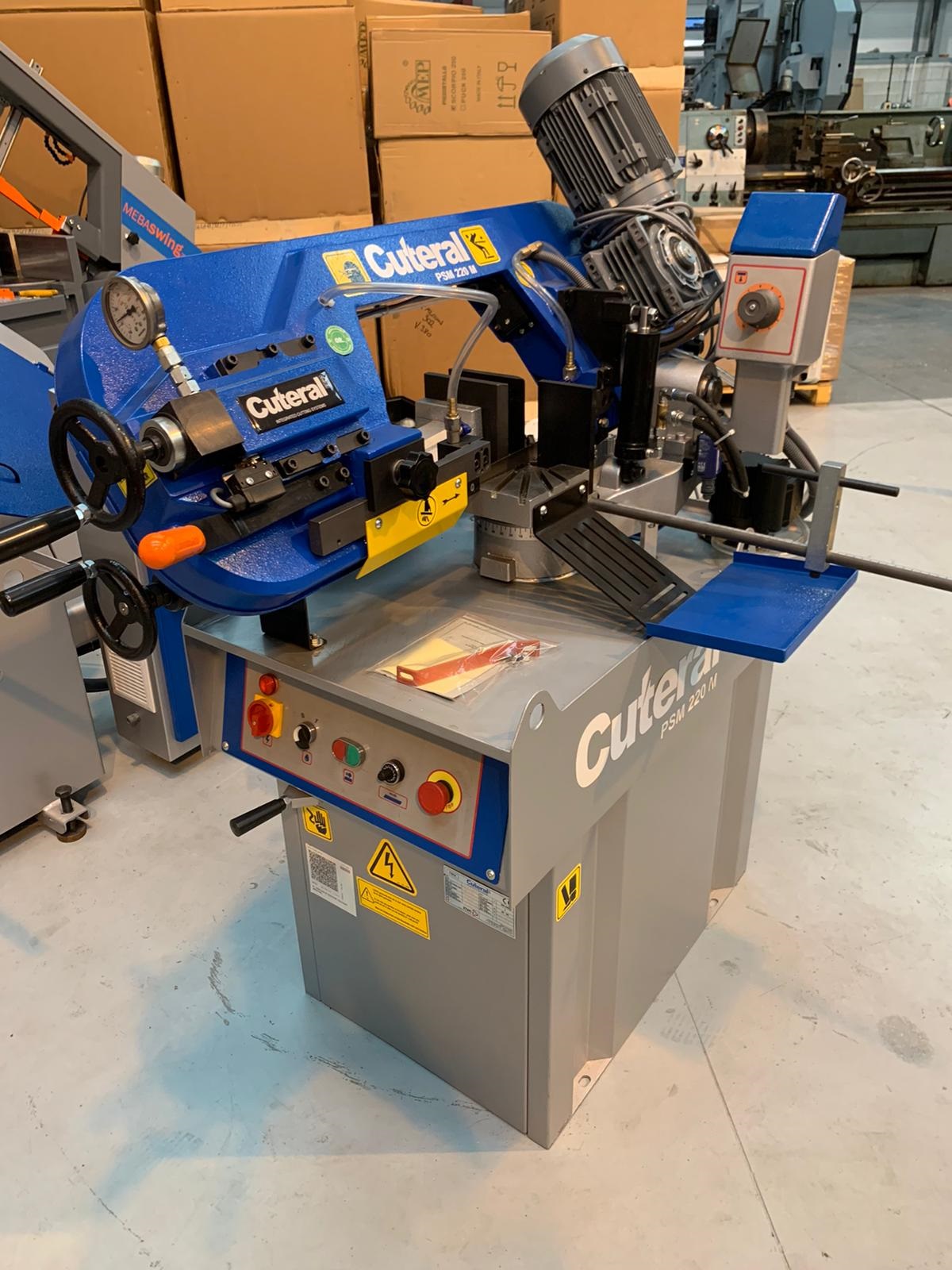

The Cuteral PSM 220 M is a manual single phase 220 volt bandsaw with one way mitering up to 60 degrees.
Capacity: 170mm x 250mm
• Material Clamping System
• Control Panel
• Fixing Miter Degree
• Miter Cutting
| Cutting Capacity (mm) | Round | Square | Rectangle |
|---|---|---|---|
| 0° | 220 mm | 220 mm | 170mm x 25 0mm |
| 30° L | n/a | n/a | n/a |
| 45° L | n/a | n/a | n/a |
| 60° L | n/a | n/a | n/a |
| 30° R | 200 mm | 180 mm | 200 mm x 180 mm |
| 45° R | 150 mm | 140 mm | 140 mm x 150 mm |
| 60° R | 80 mm | 80 mm | n/a |
| TECHNICAL DATA | |
|---|---|
| Blade Motor
|
1.47 hp – 1400 rpm
|
| Feeding Motor
|
Manual
|
| Hydraulic Pump Motor
|
1 hp – 1400 rpm
|
| Blade size
|
27 mm x 0.9 mm x 2500 mm
|
| Blade Speed
|
90 m/dk – 295 ft/min
|
| Machine Dimensions
|
1406 mm x 1800 mm
|
| Machine Weight
|
250 Kg
|
