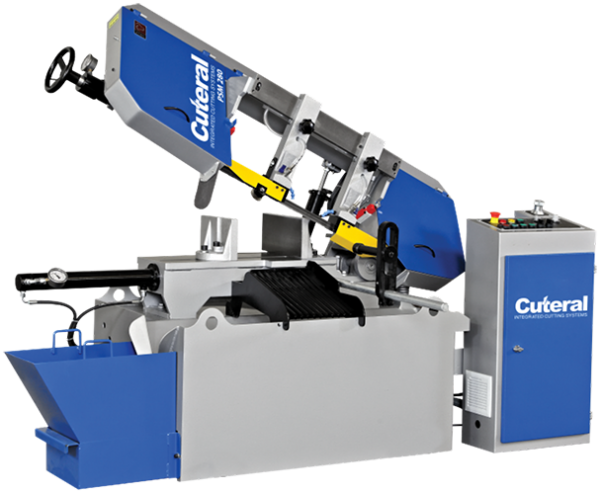

The Cuteral PSM 280 is a semi – automatic pivot style bandsaw with one way mitering up to 45 degrees.
• Material Clamping System
• Control Panel
• Blade Tensioning
• Miter Cutting
| Cutting Capacity (mm) | Round | Square | Rectangle |
|---|---|---|---|
| 0° | 280mm | 250mm | 280mm x 300mm |
| 30° L | 280mm | 280mm | 280mm x 280mm |
| 45° L | 250mm | 210mm | 200mm x 210mm |
| 60° L | n/a | n/a | n/a |
| 30° R | n/a | n/a | n/a |
| 45° R | n/a | n/a | n/a |
| 60° R | n/a | n/a | n/a |
| TECHNICAL DATA | |
|---|---|
| Blade Motor
|
2 hp – 1500 rpm
|
| Feeding Motor
|
Manual |
| Hydraulic Pump Motor
|
1 hp – 1400 rpm
|
| Blade size
|
27 mm x 0.9 mm x 3670 mm
|
| Blade Speed
|
130 m/dk – 426 ft/min
|
| Machine Dimensions
|
2200 mm x 1880 mm
|
| Machine Weight
|
662 Kg
|
