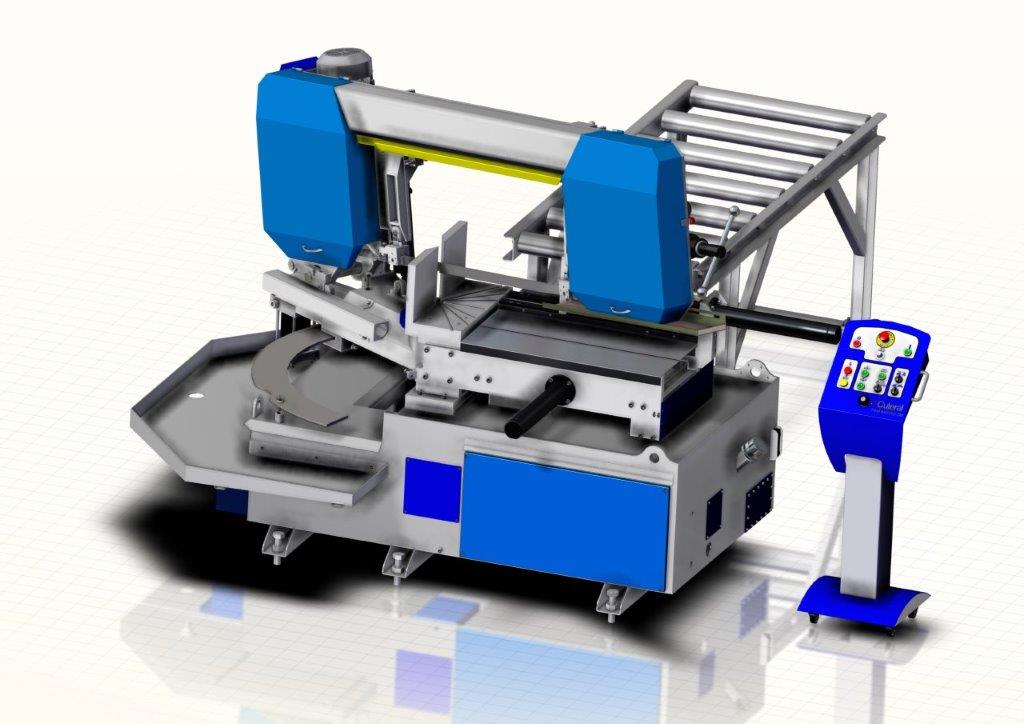

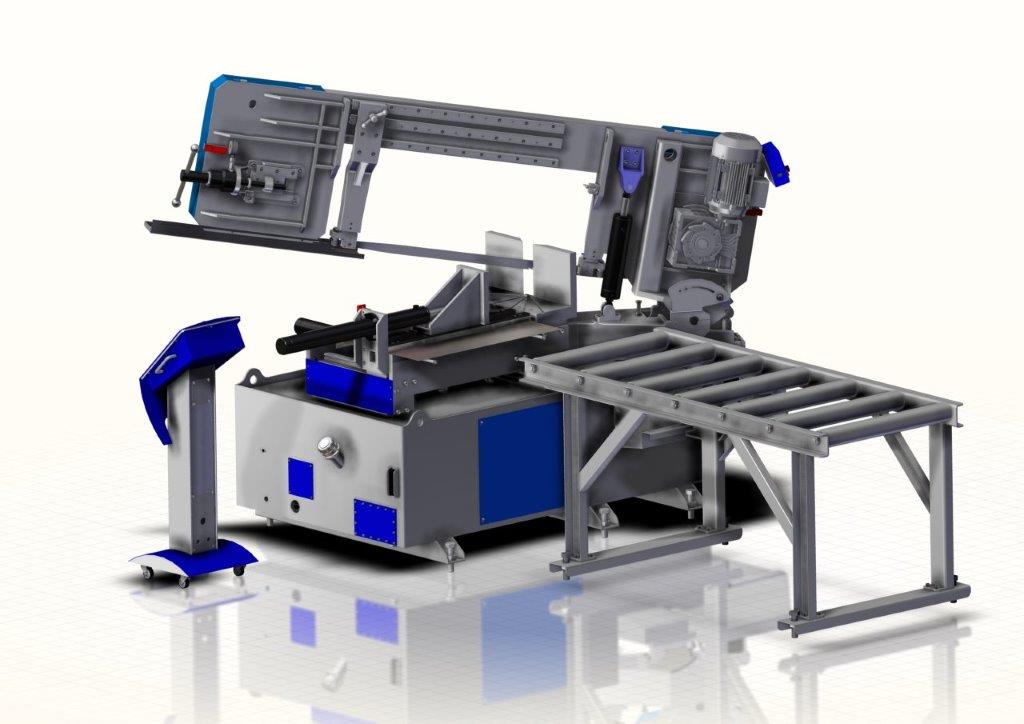

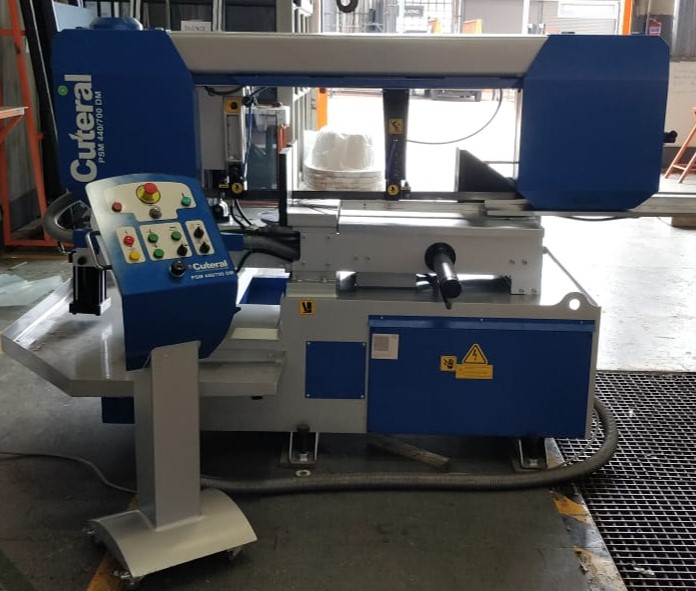

Cuteral PSM 440/700 DM – Semi-Automatic Bandsaw Machine

Standard Features:

CUTERAL 440/700 DM is a Semi-Automatic Bandsaw with two- way mitring up t0 60 degrees.

Capacity: 440mm x 700mm

Digital angle screening
Linear-guide blade straightening guides
Stepless blade speed control
Easily cleanable, movable cooling liquid tank
Double mitre cutting
Precision head going down speed
Automatic stop after material cut and hoisting
Hydromechanical blade tensioning
Hydraulic material clamping
Adjustable material clamping pressure
Steel material clamping jaws
Cutting fluid system mounted on blade guide
Steel center body
Blade breakage switch, phase protection relay
Casting blade pulleys
Thermic-protected electric motors
Control panel and blade cover safing switches
Bi-metal band saw blade
Two bearings for blade guiding
Adjustable blade guides and carbide blocks for guidance
Adjustable top-limit switch
Easy hydraulic system control by pressure gauge
Cooling liquid and hydraulic oil level indicators
Walking clamps
Hydraulic miter lock
Heavy duty construction
High quality electrics

Optional Features

Cutting Capacity (mm)	Round	Square	Rectangle
0°	420 mm	420 mm	420 mm x 600 mm
30° L	420 mm	420 mm	420 mm x 600 mm
45° L	420 mm	420 mm	250 mm x 500 mm
60° L	330 mm	270 mm	190 mm x 310 mm
30° R	n/a	n/a	n/a
45° R	n/a	n/a	n/a
60° R	n/a	n/a	n/a

TECHNICAL DATA
Blade Motor	5.36 hp – 1500 rpm
Feeding Motor	Manual
Hydraulic Pump Motor	1 hp – 1400 rpm
Blade size	41 mm x 1.3 mm x 5280 mm
Blade Speed	100 m/dk – 328 ft/min
Machine Dimensions	2920 mm x 2380 mm
Machine Weight	1454 Kg
