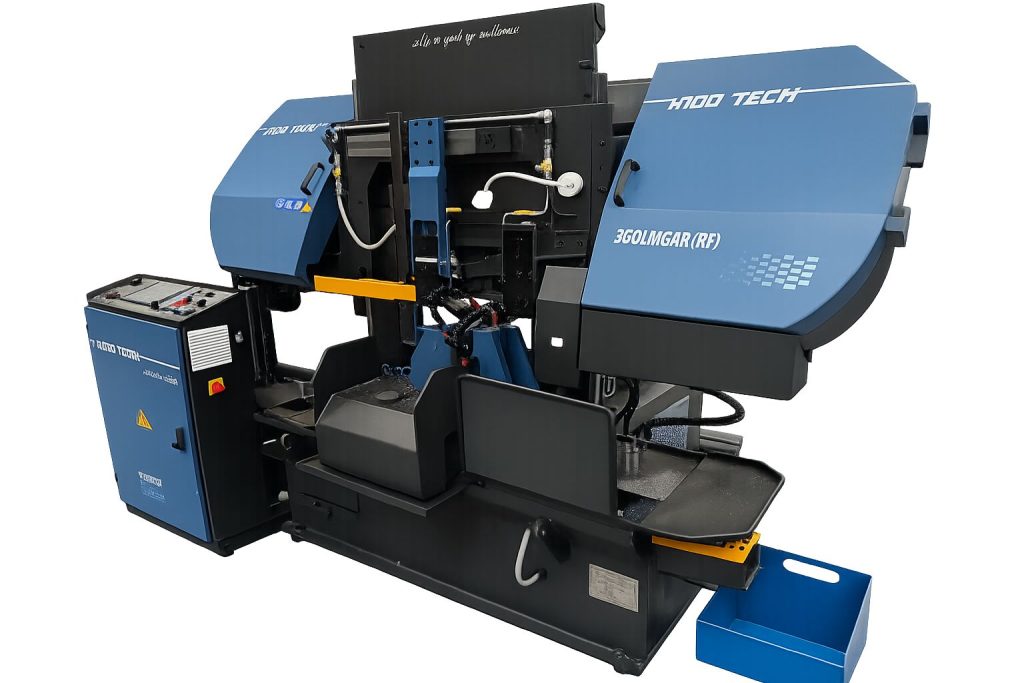

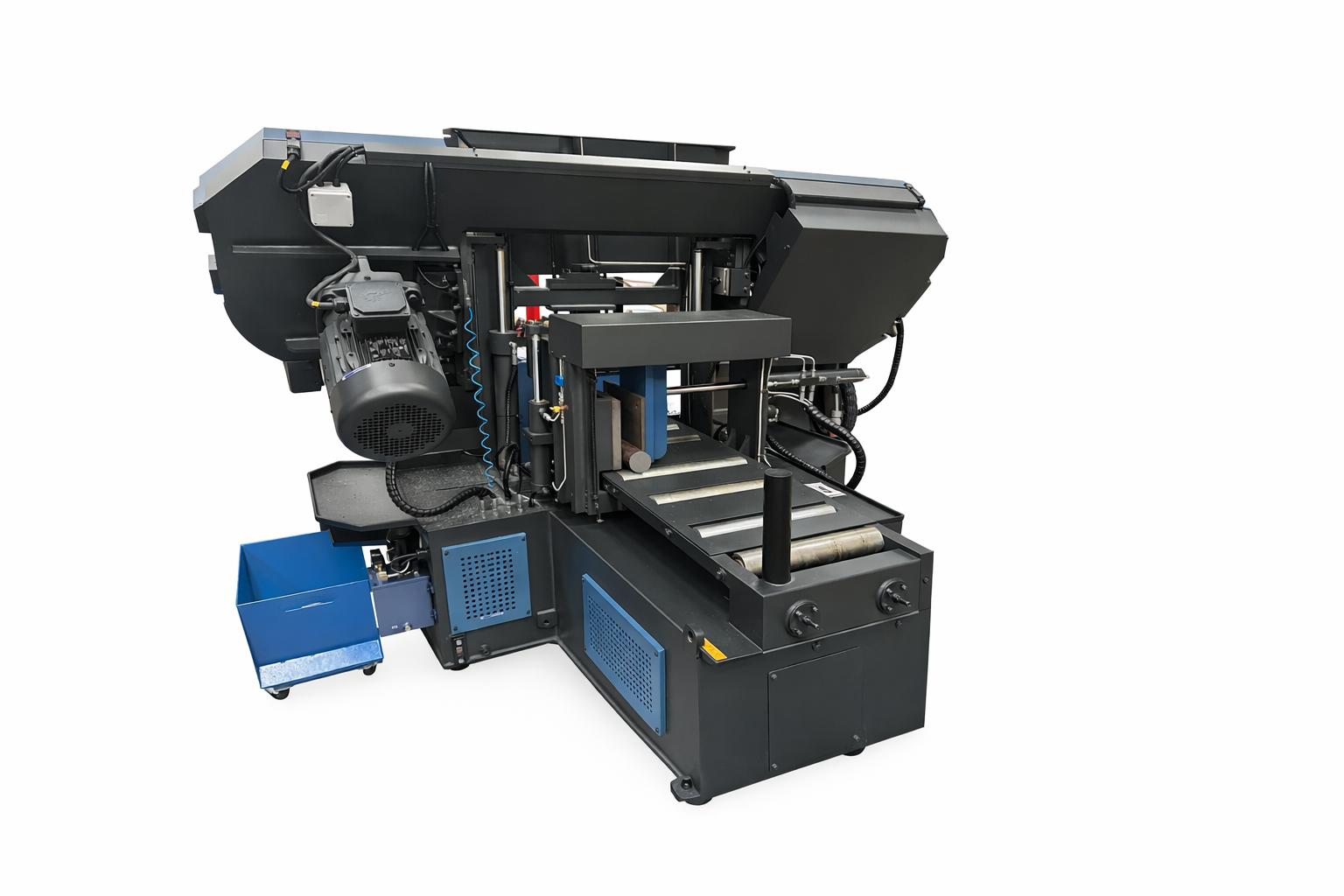

The ITM 360 LMGA is a heavy-duty fully automatic twin column horizontal metal cutting bandsaw designed for high-volume cutting of steel sections, bars, tubes and bundles.
Engineered for steel stockholders, fabrication workshops and engineering manufacturers, the ITM 360 LMGA delivers accurate, reliable serial cutting with minimal operator intervention. Its robust double-column design, hydraulic automation and intelligent control system ensure consistent performance in demanding production environments.
The machine is designed to handle continuous cutting operations where accuracy, repeatability and productivity are critical.
With an automatic indexing shuttle feed and PLC controlled programming, operators can quickly set cutting lengths and batch quantities, allowing the machine to complete repetitive cutting cycles automatically.
This makes the ITM 360 LMGA ideal for businesses processing large volumes of steel sections or bundle cutting applications.
Automatic Indexing Shuttle Feed
Hydraulic shuttle feed with 600 mm stroke length (reduced to 550 mm for bundle cutting) synchronised with the automatic cutting cycle for accurate repetitive production cutting.
Powerful Hydraulic System
Equipped with an 80 litre hydraulic power pack providing smooth, reliable performance for heavy-duty steel cutting.
Variable Vice Pressure
Adjustable hydraulic vice pressure ensures secure clamping of different materials while preventing deformation of thin-walled sections or tubes.

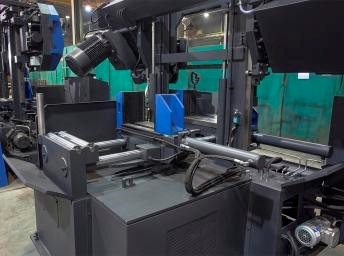

Hydraulic Bundle Clamps
Allows multiple bars or pipes to be cut simultaneously, increasing productivity during batch cutting operations.
Variable Blade Speed
AC variable frequency drive (VFD) allows infinitely variable band speed control from the control panel to suit different materials.
PLC Touchscreen Control Panel
User-friendly PLC touchscreen interface allows simple programming of multiple cuts and batch quantities.
Digital Length Positioning
Cutting length is set via a digital linear scale with sensor, ensuring precise positioning and repeatable automatic cuts.

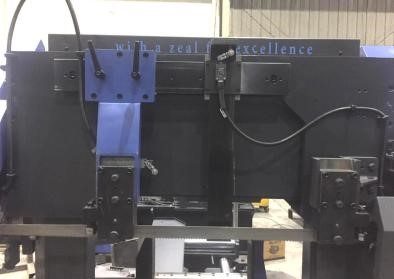

Precision Saw Head Movement
Saw head runs on pre-hardened, pre-loaded linear guides for friction-free movement and long-term cutting accuracy.
Blade Life Protection System
Pressure control valve balances the saw frame during cutting depending on the material, helping maximise blade life and cutting performance.
The ITM 360 LMGA includes a range of features designed to support continuous operation and reduce maintenance downtime:
Driven swarf conveyor for automatic chip removal
Powered swarf brush to keep the blade clean during operation
Automatic blade guide adjustment
Automatic hydraulic blade tensioning system
| Specification | 360 LMGA/LMGS |
|---|---|
| Cutting Capacity (mm) Square | 360×360 |
| Cutting Capacity (mm) Round | 360 |
| Cutting Speed (mtr/min) | 20-100 |
| Blade Size (mm) | 4400x41x1.3 |
| Blade Tension | Hydraulic |
| Saw Motor Capacity (hp) | 7.5 |
| Hyfraulic Motor Capacity (hp) | 1 |
| Coolant Motor Capacity (hp) | 0.16 |
| Job Indexing Available in | LMGA Version |
| Hydraulic Reservoir (ltr) | 80/40 |
| Approx Weight (Kg) LMGA(RF) | 2350 |
| Approx Weight (Kg) LMGS | 1950 |
| Overall Dimension (mm) LMGA(RF) | 3000x1950x1950 |
| Overall Dimension (mm) LMGS | 3000x1500x1950 |
