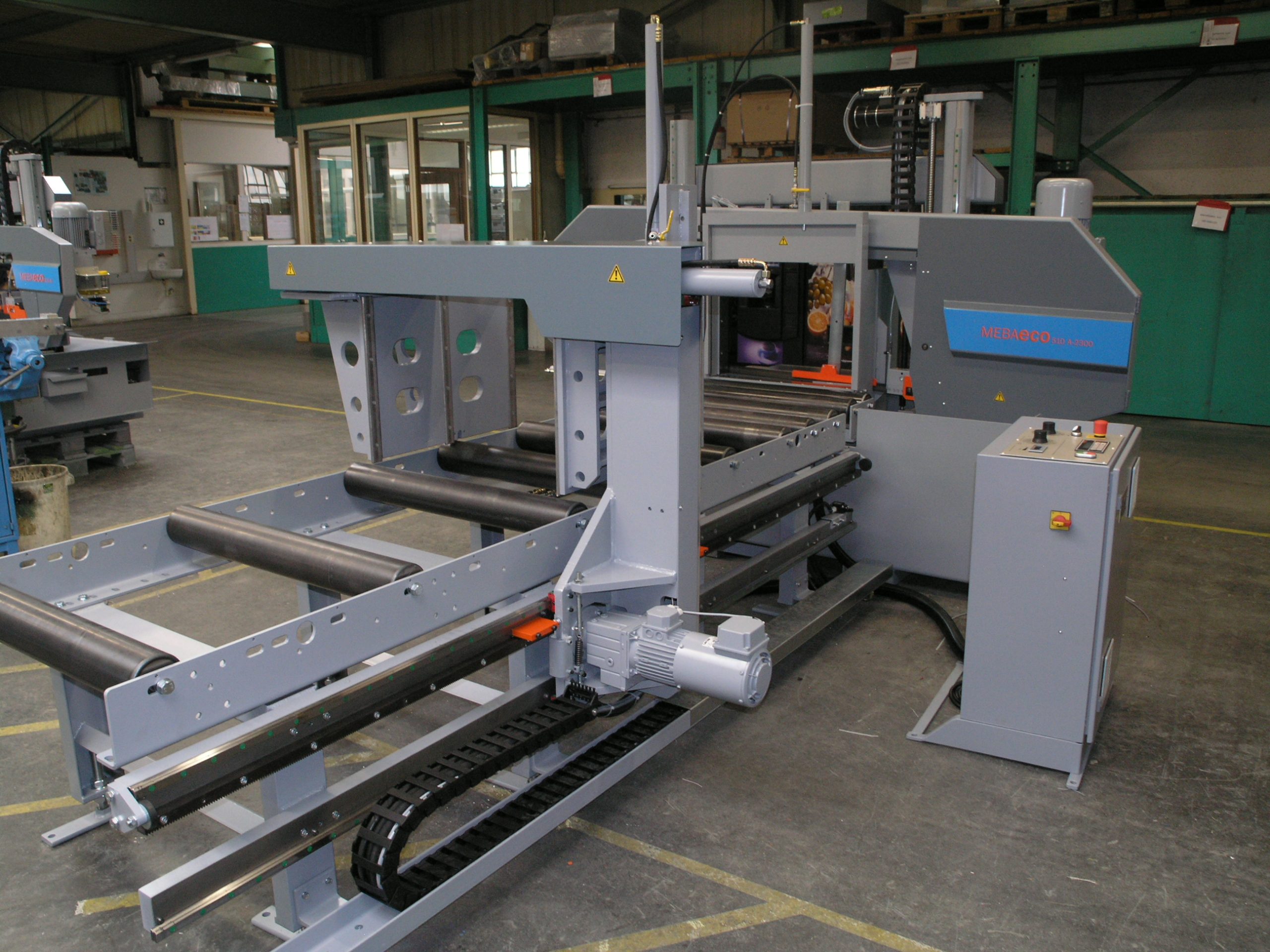

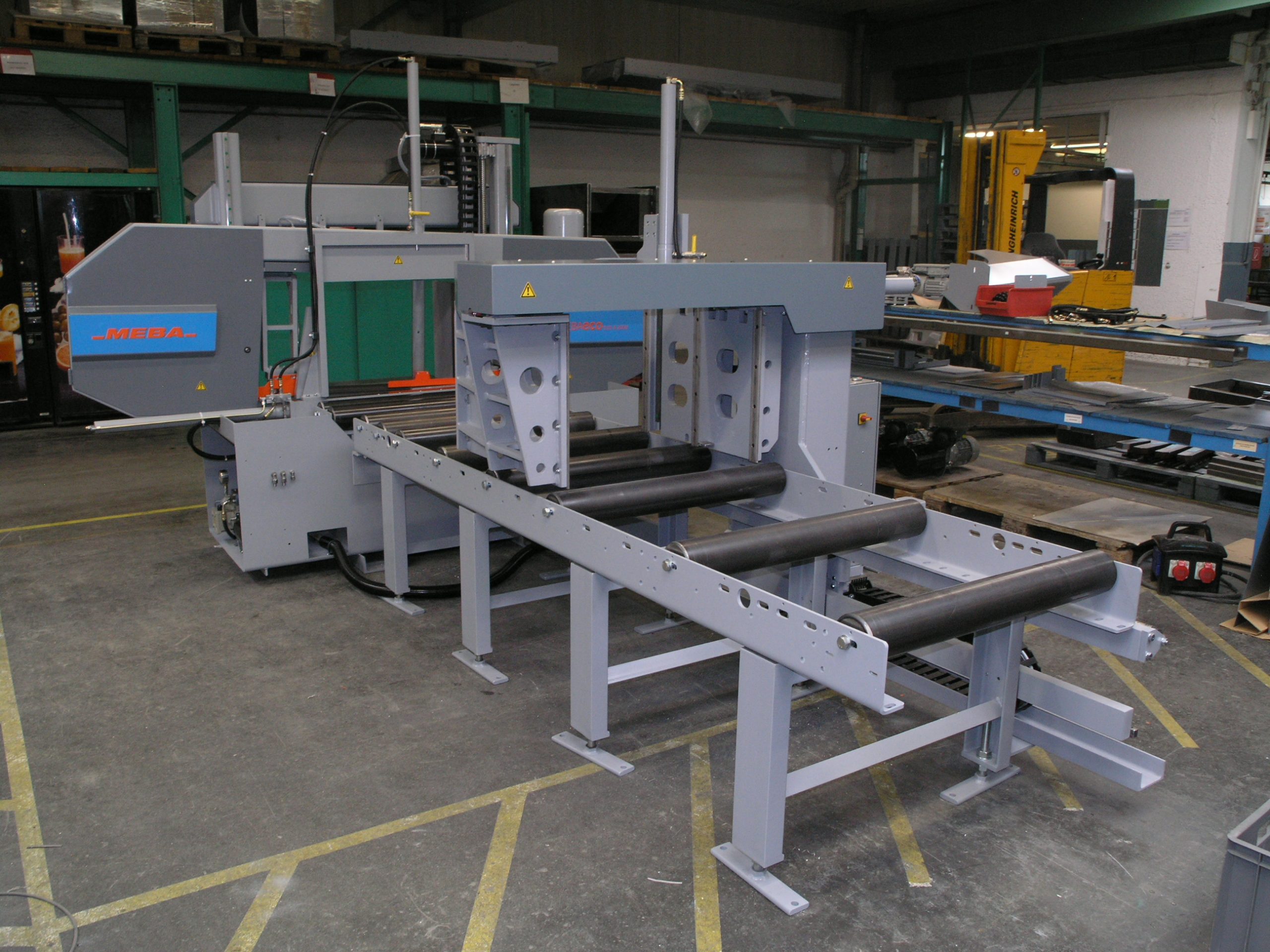

MEBA 510 A-1300 NC – Automatic Bandsaw Machine

Standard Features:

The MEBA ECO 510 A -1 300 is a automatic straight cutting bandsaw machine, suitable for a wide range of sawing applications. Featuring an electric saw feed by ball screw techniqiue for ultimate cutting performance and linear guides for smooth solid cutting.

Optional Features

  • An innovative electric saw feed by ball screw technique provides ultimate cutting performance and quality while minimizing blade wear
  • Uses of latest linear ball guideway to provide solid smooth running, maintenance-free performer
  • Automatic cutting pressure- and feed control
  • Frequency-controlled AC-drive
  • Hydraulic material full stroke clamping
  • Central and easy to use control panel
  •  Movable blade guide arm, adjustable to suit material width
  • Combined precise saw blade carbide-roller guidance with saw blade brush
  • Saw blade tension with torque wrench
  •  Coolant equipment can be combined with MEBA micro-coolant system
  •  MEBA power package
  • Lifting and lowering of the saw frame with a frequency regulated lead screw drive, with automatic cutting pressure and feed regulator.
  • Rapid lowering of the saw frame via button until material edge
  • Powerful, frequency-controlled saw blade drive
90° Ø 510 700 x 500
motor 7,5 kW
saw blade 6100 x 41 x 1,3 mm
saw blade speed 15–150 m/min.
length of remaining piece without bundle clamp min. manual: 75 mm automatic: 175 mm
length of remaining piece with bundle clamp min. manual: 180 mm automatic: 250 mm
max. material size with bundle clamp Ø 510 / 700 x 500
shortest Ø 5 mm
dimension (L xWxH) 3500 x 3100 x 2200 mm
working height 750 mm
weight 3300 kg
PDF icon Download PDF
