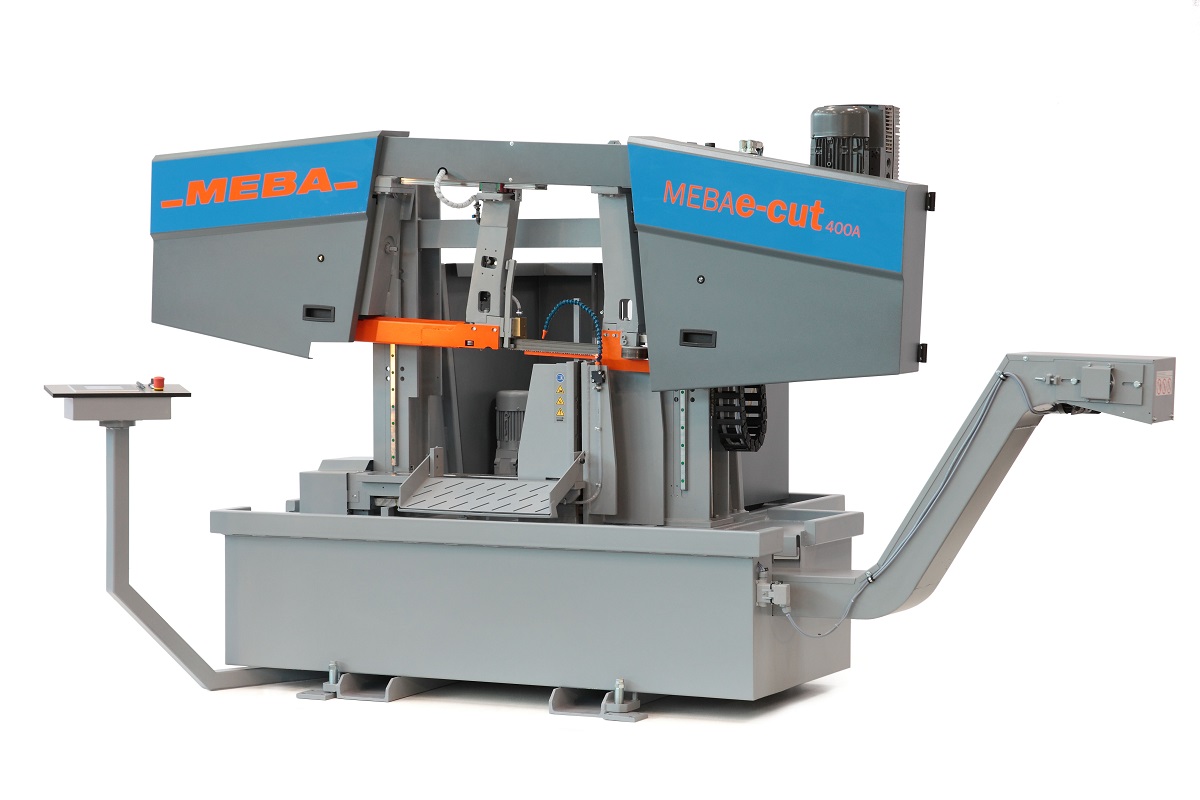

MEBA E-Cut 400A NC – Automatic Bandsaw Machine

The MEBA E-Cut 400A NC Automatic horizontal bandsaw with a cutting capacity of 500mm x 400mm, with a heavy duty motor of 5.5kw and 41mm blade, making this saw a powerful choice for customers with high production requirements. It is energy efficient, with electric drives for clamping and electric ball screw feeding system.

• MEBA POWER PACKAGE: Lifting and lowering of the saw frame with a frequency regulated lead screw drive, with automatic cutting pressure and feed regulator
• Rapid lowering of the saw frame via button into the material with an automatic material height detector
• Electric material clamping on main and infeed vice via full stroke clamp over frequency regulated lead screw drive to ensure clean and gentle sawing – energy efficient
• Automatic adjustment of saw blade guidance to material width
• Central and easy to use control with moveable panel for flexible operation
• Bearing for band wheels on both sides for high rigidity
• Minimum speed and saw blade control on the band wheel
• AC Drive 15-150m/min
• Powerful, frequency controlled saw blade drive
• Robust 2 column linear guided saw frame
• Saw frame guidance by pre-stressed linear guide ways and warp resistant frame construction
• Ribbed clamping bars on infeed and main vice
• Driven saw blade cleaning brush
• Double clamping on main vice
• Inclination of saw blade is at 3°
• Combined precise saw blade carbide roller guidance
• Saw blade tension by torque wrench
• Integrated and removable chip collection tray
• Coolant equipment can be combined with MEBA spray mist system

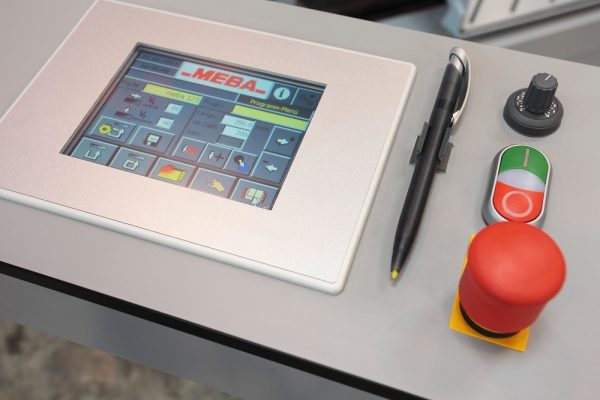

• Controlled operator friendly NC Dialog control with text display, CE Panel
• Program memory – 50 programs with 20 sets each
• Innovative electric saw feed by ball screw technique on linear guides – provides ultimate cutting performance and quality while minimizing blade wear
• Cutting canal is calculated automatically on multi stroke function
• 3 counters for total production time, saw blade service life and production order
