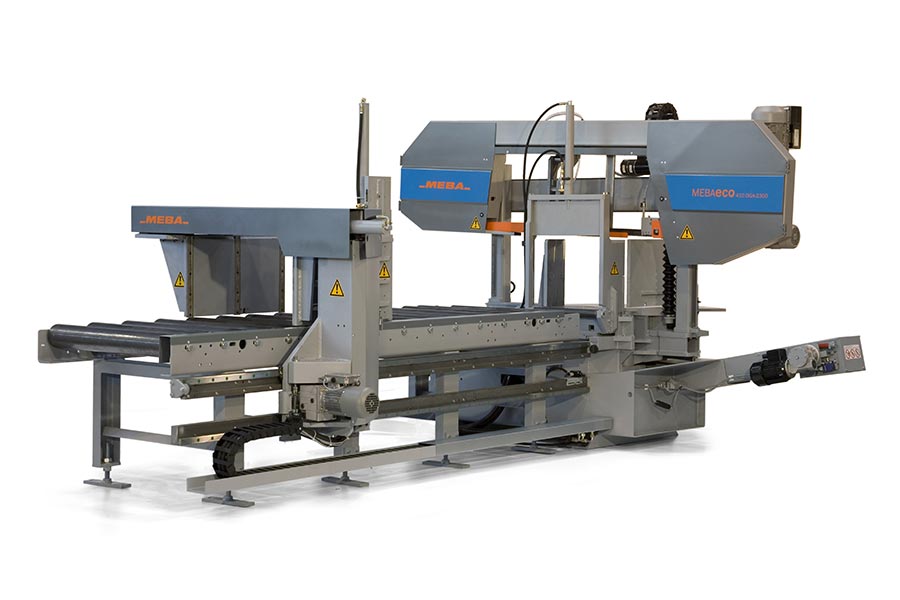

MEBA ECO 410 DGA 2300 – CNC Automatic Bandsaw Machine

Standard equipment

• Minimum speed- and saw blade control on the bandwheel
• Automatic cutting pressure- and feed control
• Frequency-controlled AC-drive 15-150 m/min
• Hydraulic material full stroke clamping
• Electric mitre swivelling by servo motor
• Visualized program input by CNC-control

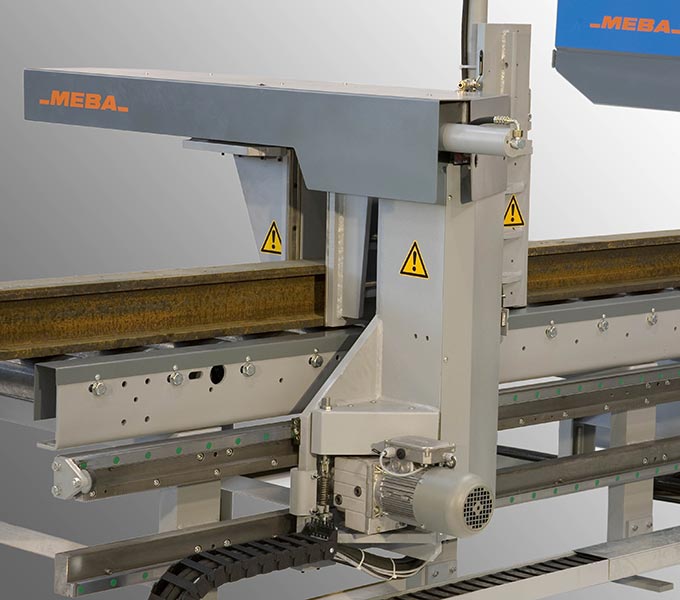

• Integrated infeed shuttle system of 5-2300mm per stroke with integrated roller track

Highlights

• Ergonomic panel based on “Windows CE” system software
• The WEB-capable industry control can be linked and provides several options:
  -Teleservice for remote maintenance
  -Creation of saw programs in the office
  -Imports saw programs from CAD with DSTV-interface and data export
• Automatic material feed:
  Compact design for short sections and flexible infeed shuttle system for almost any length available
• Accurate positioning of the material by servo-positioning technique
• Innovative electric saw feed by ball screw technique:
  An innovative electric saw feed by ball screw technique provides ultimate cutting performance and quality while minimizing blade wear
• Uses of latest linear ball guideways to provide solid smooth running, maintenance-free performer
• Unique, patented double-mitre system allows the material to always be clamped at 90° to the saw blade
• Infeed shuttle can be extended in steps of 1000mm
