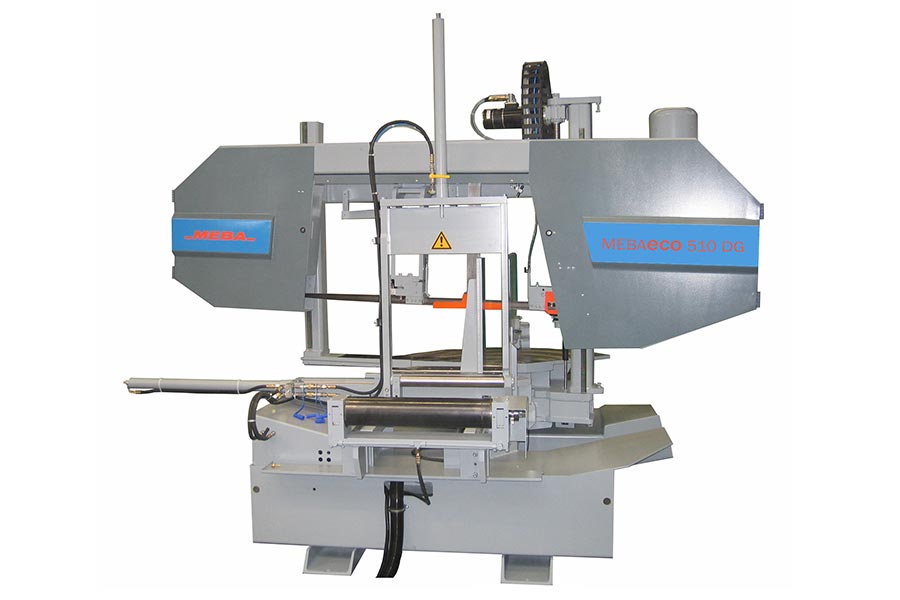

MEBA ECO 510 DG – Semi-Automatic Double Mitre Bandsaw Machine

Standard Features:

The MEBA ECO 510 DG is a semi-automatic double mitre automatic bandsaw with innovative design and automatic material flexible infeed shuttle system.

  • Innovative electric saw feed by spindle technique:
    An innovative electric saw feed by ball screw technique provides ultimate cutting performance and quality while minimizing blade wear
  • Uses of latest linear ball guideway to provide solid smooth running, maintenance-free performer

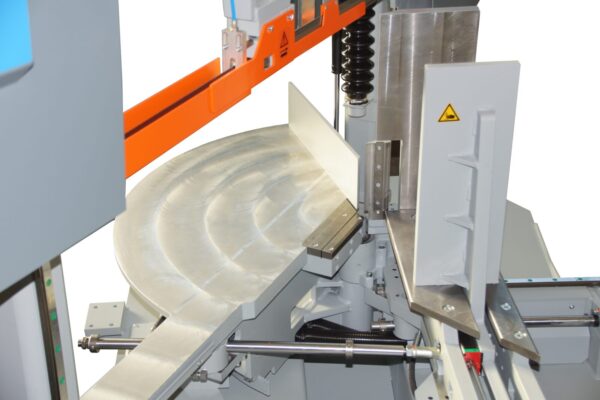

  • Unique, patented double-mitre system allows the material to always be clamped at 90° to the saw blade

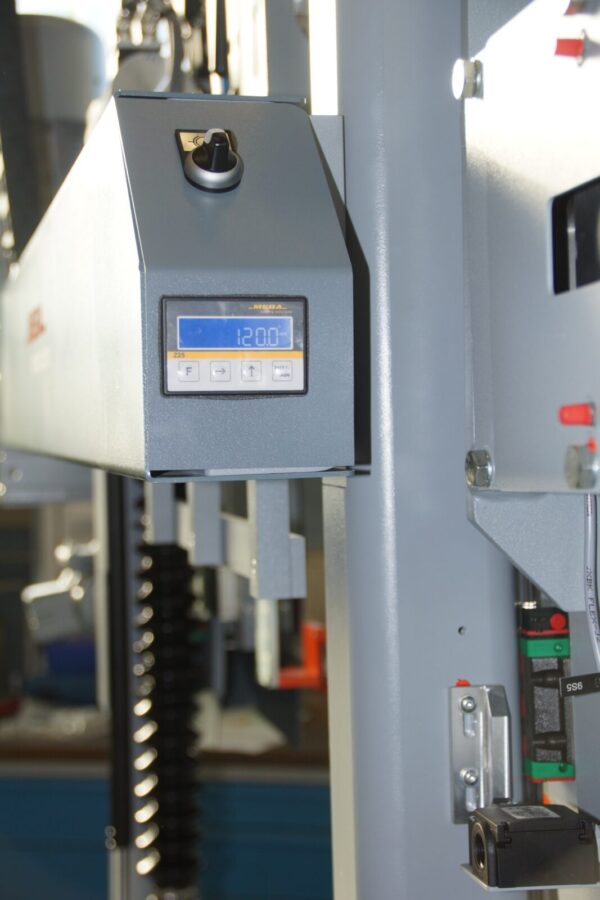

  • Digital mitre display up to 0.1°
  • Automatic cutting pressure- and feed control
  • Frequency-controlled AC-drive
  • Hydraulic material full-stroke clamping

Optional Features

  • 2300mm and 3300mm Shuttle Feed Available
  • Laser Light
  • Driven Swarf Brush
  • MEBA spray mist system
  • Hydraulic clamping pressure regulator
  • Hydraulic bundle clamping (full stroke width)
  • NC Server – Data transfer & production planning
  • Zero face positioning (Bar end finder)
  • LED Work light
  • Hydraulic saw blade clamping
  • Swarf conveyor
  • Swarf bucket
  • Roller track also available for infeed and outfeed
45° L Ø 430 mm 430 x 500 mm
90° Ø 510mm 700 x 500 mm
45° R Ø 510mm 500 x 500 mm
30° R Ø 320mm 320 x 500 mm
motor 7,5 kW
Saw blade size 6100 x 41 x 1,3 mm
Saw blade speed 15–150 m/min.
length of remaining piece without bundle clamp manual: 75mm automatic: –
length of remaining piece with bundle clamp manual: 260mm automatic: –
max. material size with bundle clamp Ø 430 / 430 x 500
shortest Ø 5mm
Dimensions (L x W x H) 1700 x 3000 x 2200 mm
Working Height 750mm
Weight 2000 kg
