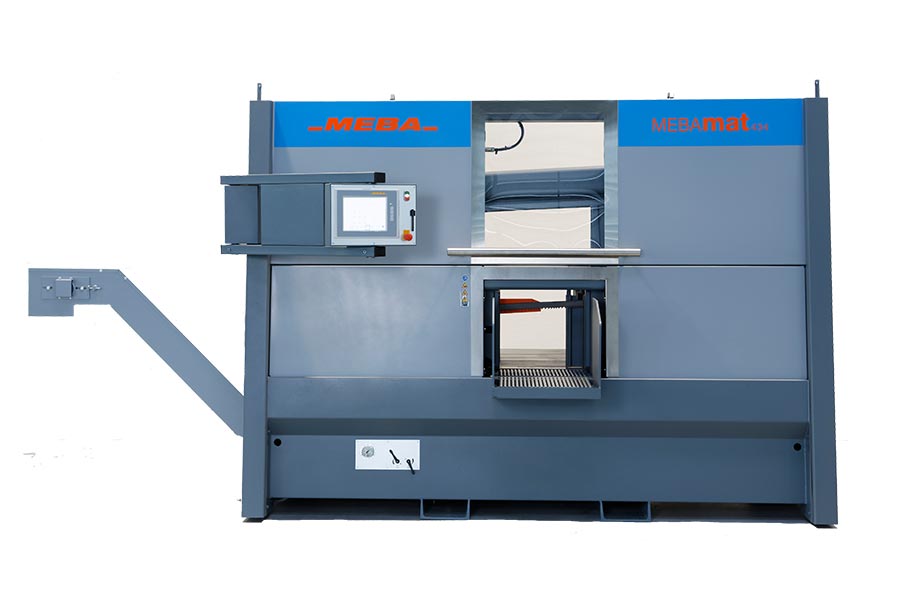

MEBA MAT 434 – Automatic Bandsaw Machine

The MEBA MAT 330 is a fully enclosed high performance bandsaw with compact design.

• Compact and practical construction: space saving, easy to access during machine commissioning, saw blade change and maintenance activities
• Carbide compatible MEBA Power Package: Lifting & lowering of the saw frame by frequency regulated lead screw drive with automatic cutting pressure and feed regulator – Trouble free cutting of hardened solid, tube and profile material whilst saving blade life
• Runs in single and multi-shift operation

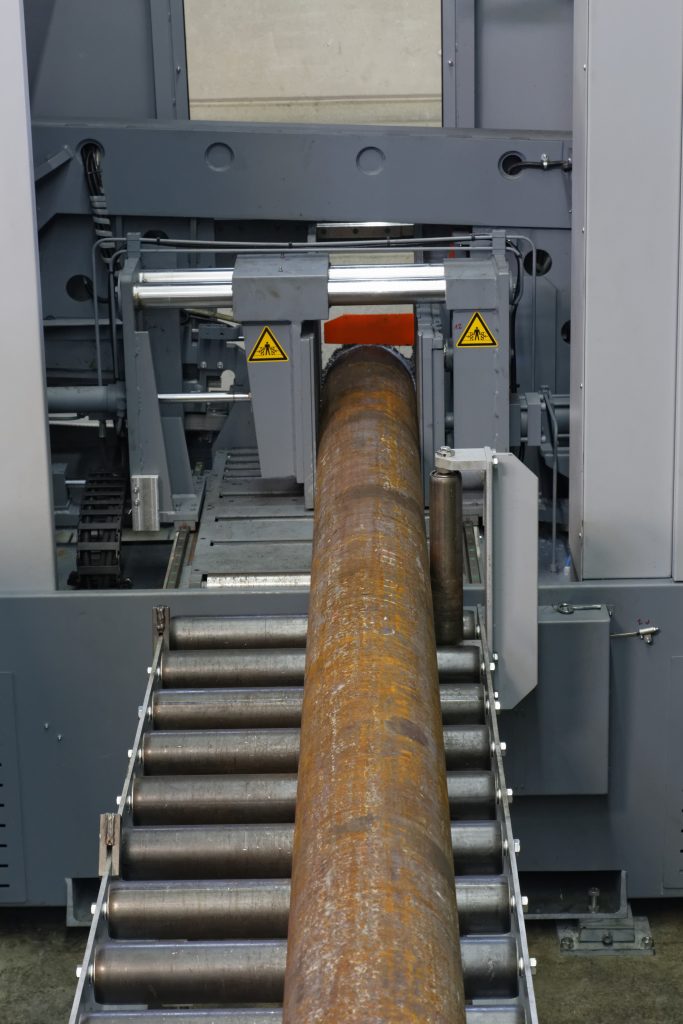

• Secure transport of material by closed roller table. Increased hardened tensioning elements and a high clamping force guarantee an efficient transportation of material
• Saw feed & material feed by ball lead screw with servo motor for accurate cuts
• Linear ball guides for smooth solid running of the saw
• innovative vice system to reduce remnant material wastage
• control panel on moveable panel for ease of use and flexible operation: can be linked for remote maintenance, creation of jobs in the office, importing saw programs from CAD with DSTV interface and data export, job library, material database
• Intelligent control: networking and communication between drive systems and control unit thus all-important parameters are monitored
• Hydraulic material clamping with full stroke cylinder
• hydraulic and constant blade tensioning
• hydraulically preloaded carbide roller guides
• Stepless regulation of saw blade speed
• Operating hour counter for total time, saw time and order time
• Driven saw blade cleaning brush
• Vibration optimised, torsion resistant, robust construction
