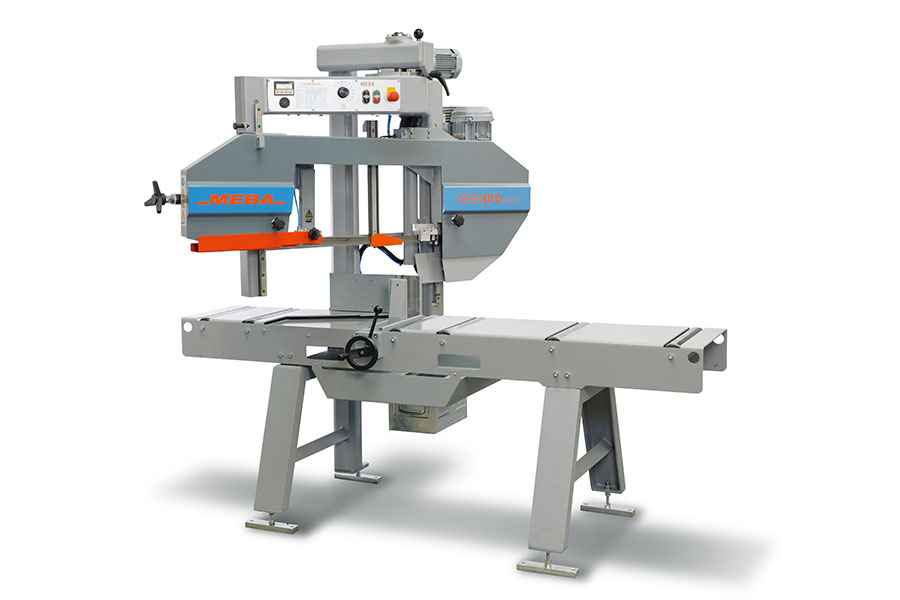

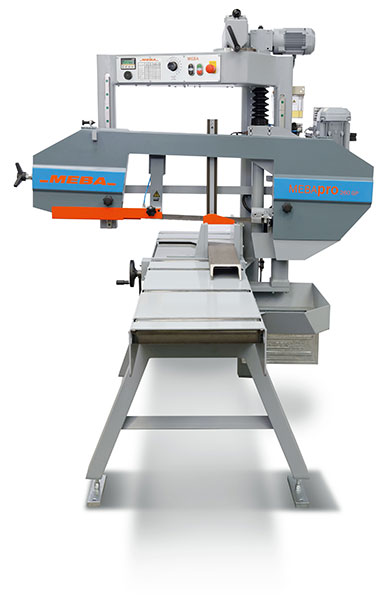

MEBA Pro 260 GP – Semi-Automatic Bandsaw

MEBApro 260 GP is a Semi-automatic Mitre-cut bandsaw 30°-90°

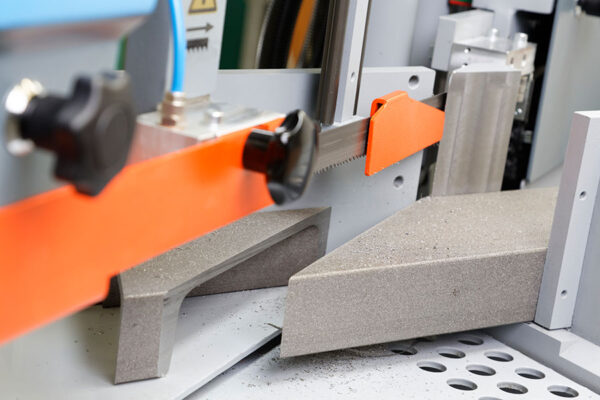

Unique mitre bearing with digital display:

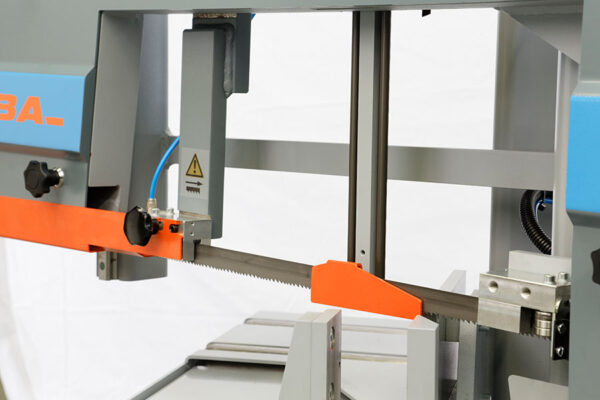

All sensitive parts like guide elements and the mitre measuring systemare out of reach from damaging chips and coolant
Mitre range up to +30° right hand
An innovative electric saw feed by ball screw technique:
An innovative electric spindle saw feeding system provides ultimate cutting performance and quality while minimizing blade wear

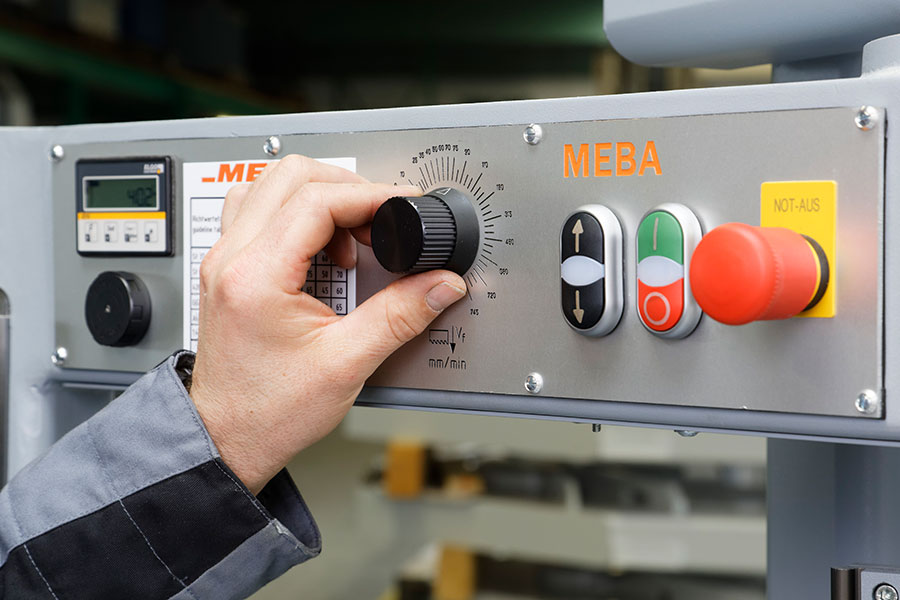

Stepless, frequency-regulated saw blade drive
Integrated material support with 2m roller track
Environmentally-friendly micro spray lubrication system

Cutting capacity	mm
90°	Ø 260300 x 260
45° right	Ø 230220×260
30° right	Ø 140140 x 200
motor	1,5 kW
saw blade	3350 x 27 x 0,9 mm
saw blade speed	15–150 m/min.
length of remaining piece without bundle clamp	manual: 20 mm automatic: –
max. material size with bundle clamp	option not available
shortest	Ø 5 mm
dimensions (L xWxH)	2000 x 1650 x 1850 mm
working height	750 mm
weight	625 kg
