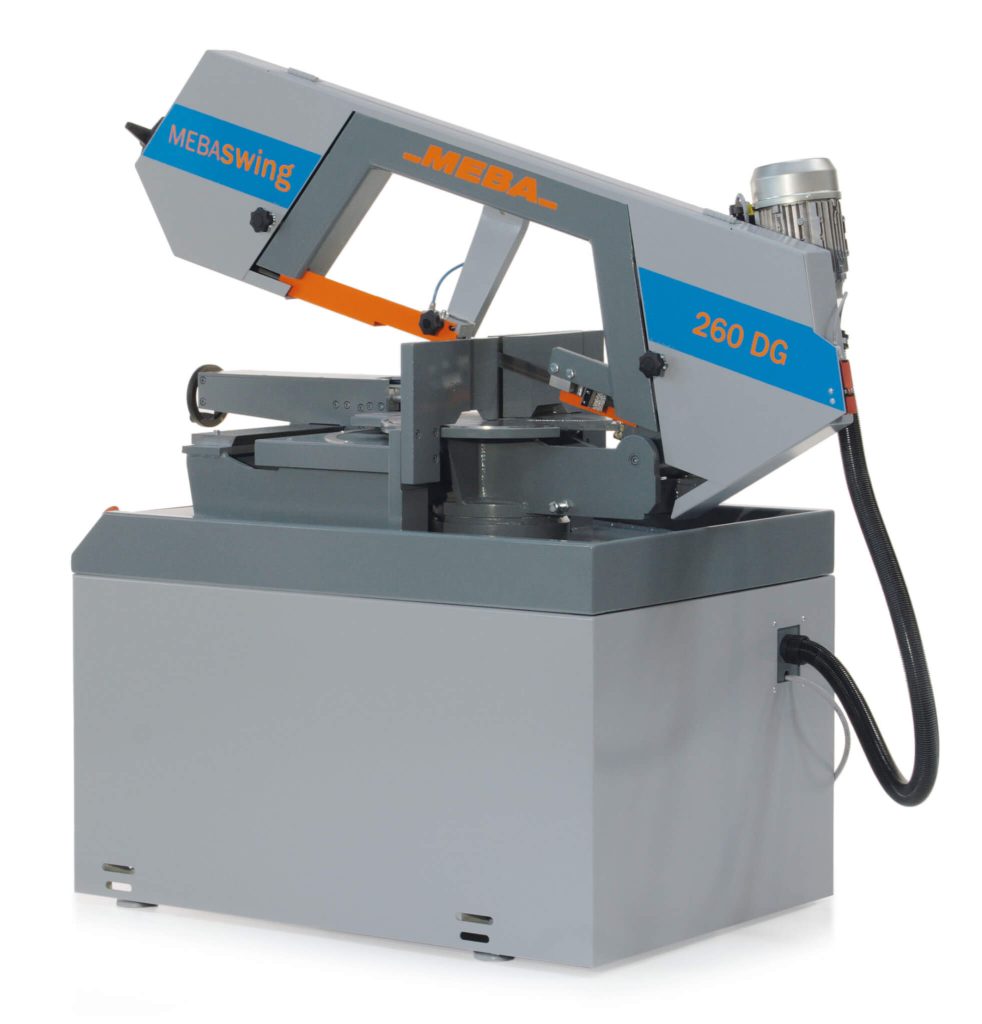

MEBA Swing 260DG HS – Semi-Automatic Double Mitre Bandsaw Machine

Machine Description

  • Compact design
  • Two way mitring up to 30° left and right
  • Fast adjustment of mitre by scale

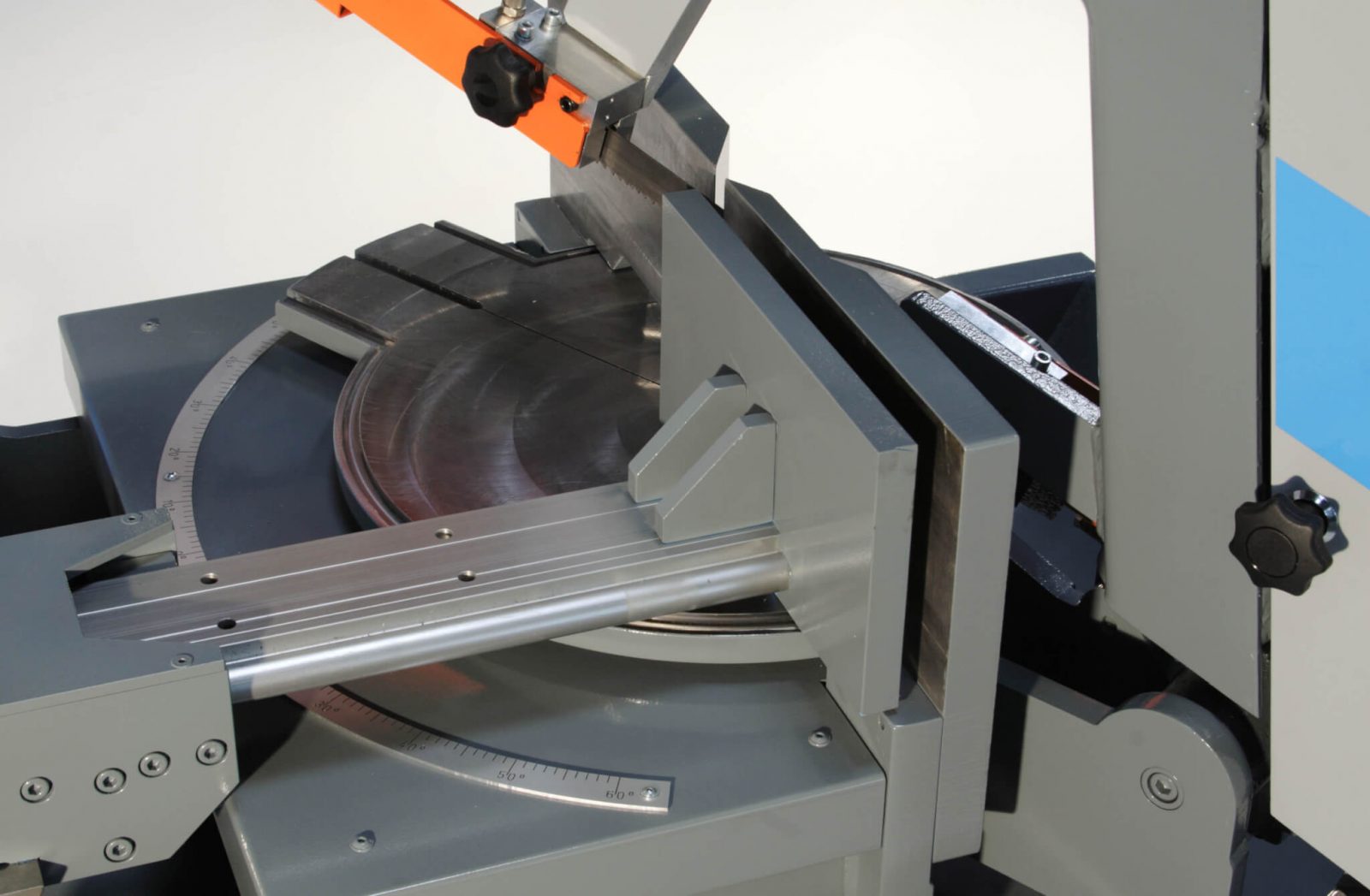

  • The swivel is directly above the intersection of the saw blade and the fix vice jaw so that there is a datum measuring point which does not change with the mitre angle
  • Manual material clamping. Material is always clamped at 90° regardless of the angle to be cut
  • Stepless cutting pressure regulation through weight of the heavy and rigid saw frame and the fine tuning depending on cross-section by hydraulic damping cyclinder
  • Integrated chip collection tray
  • Saw blade drive stops after the finished cut

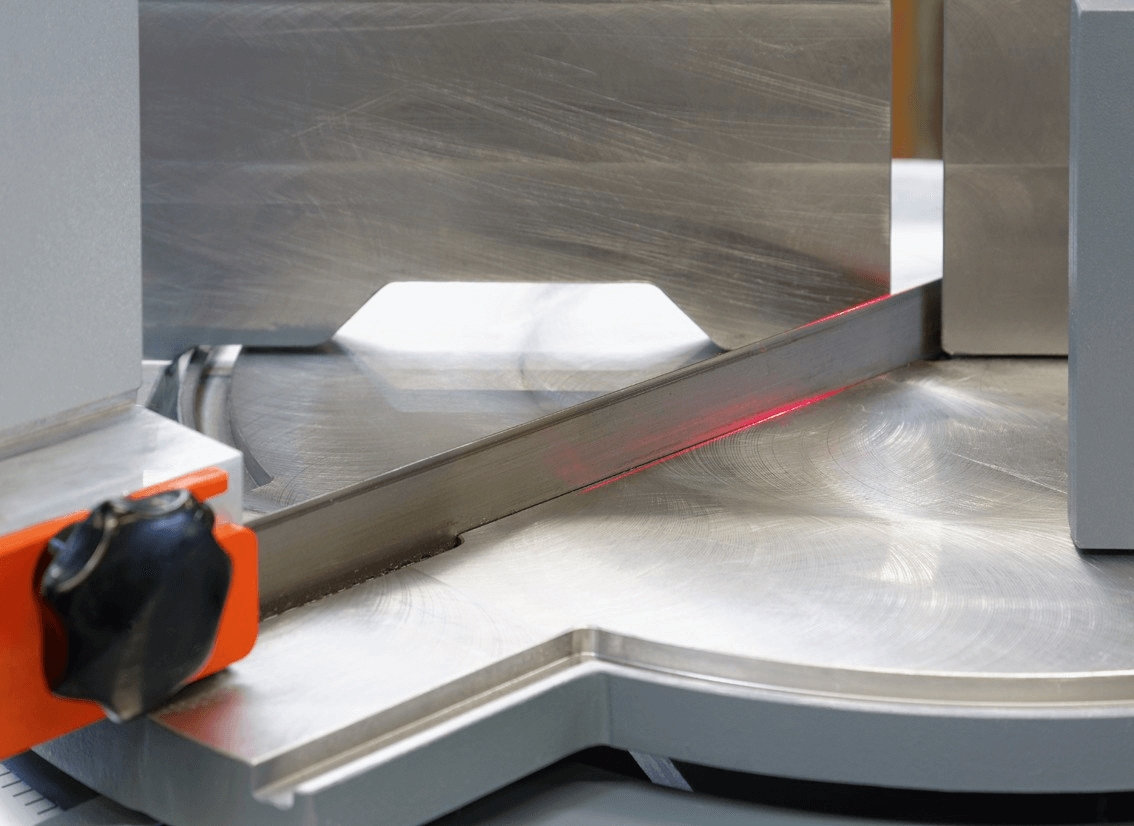

  • High precision carbide roller guides

Standard Features

Optional Features

Additional standard equipment for MEBA Swing 230 G/ 230 DG

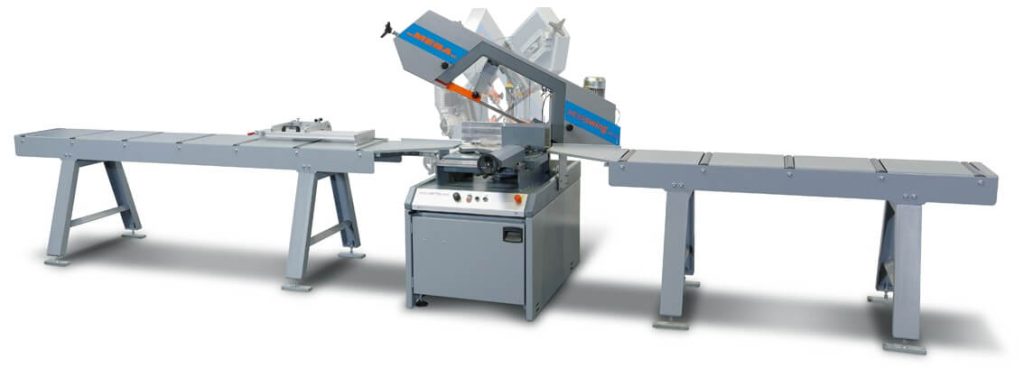

  • Measuring device with scale up to 500mm
  • Complete coolant system with immersed pump can be combined with micro coolant system

Additional standard equipment 260 DG

  • MEBA micro-coolant system (without flood cooling)
  • Rapid lowering of the saw frame via a button into the cut

Additional standard equipment 260 DG-HS

  • MEBA micro coolant system (without floor cooling)
  • Semi Automatic sawing cycle
  • Hydraulic material clamping
  • Hydraulic lifting of saw frame
  • Rapid lowering of the saw frame via a button into the cut
  • Saw frame lifts to just above the material after the cut is finished

Additional standard equipment 260 GA

  • Hydraulic material clamping
30° L Ø 130 mm 120 x 120 mm
45° L Ø 200 mm 180 x 180 mm
90 ° Ø 260 mm 300 x 260 mm
45° R Ø 200 mm 180 x 180 mm
30 ° R Ø 130 mm 120 x 120 mm
Motor 1,1/1,9 KW
Saw blade 3350 x 27 x 0,9
Cutting speed 35/75 min
Dimensions 800 x 1720 x 1450 mm
Weight 710 kg
