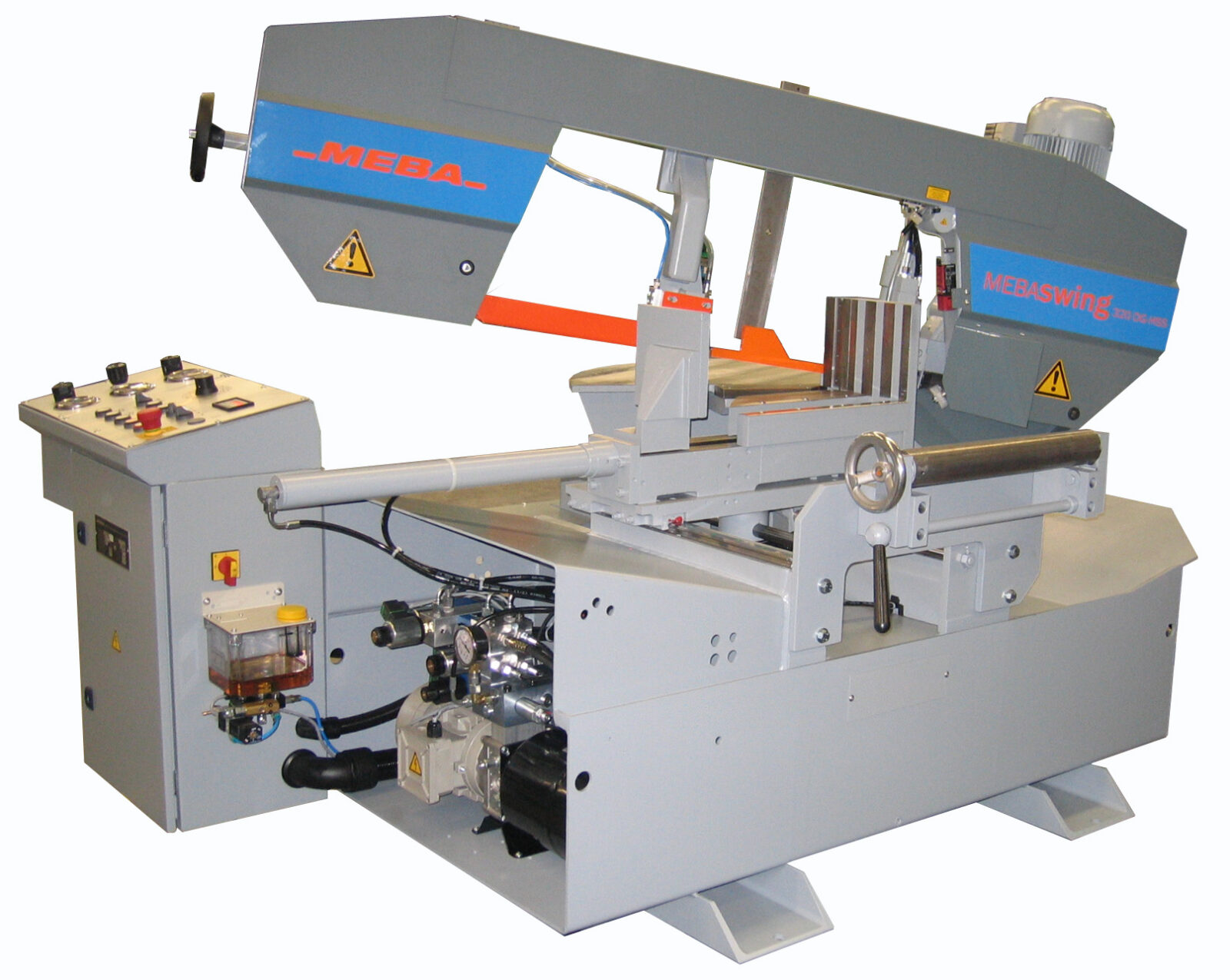

MEBA Swing 320 DG – Semi-Automatic Bandsaw Machine

Machine Description

The MEBA Swing 320 DG is a semi automatic bandsaw with mitring up to 30 degrees right and 45 degrees left featuring a powerful 3Kw saw blade drive, hydraulic clamping, lifting and feed and stepless adjustable cutting speed.

The MEBA Swing 320 DG is a semi automatic bandsaw with mitring up to 30 degrees right and 45 degrees left featuring a powerful 3Kw saw blade drive, hydraulic clamping, lifting and feed and stepless adjustable cutting speed.

  • Patented mitre system
  • Cutting speed can be adjusted steplessly
  • Hydraulic feed control
  • Hydraulic lifting and lowering of the saw frame
  • Hydraulic clamping of material
  • Powerful, frequency-controlled saw blade drive
  • Swivelling area 30° r.h / 45° l.h
  • Fast material clamping. Material is always clamped at 90° regardless of the angle to be cut
  • Lowering speed is displayed on scale
  • Cutting pressure is displayed on manometer
  • Rapid lowering of the saw frame via button until material edge

Standard Features

Optional Features

  • Automatic clamping after the sawing cut
  • Work light
  • Spray mist
  • Laser light (laser cutting line indication)
  • Minimum speed rotation monitor on the band wheel
  • Hydraulic clamping pressure regulator
  • Hydraulic bundle clamping
  • Driven swarf brush
  • Roller tables and supports also available
45° L Ø 300mm 300 mm x 300mm
90° Ø 325 mm 500 mm x 300mm
45° R Ø 300 300 mm x 300 mm
30° R Ø 200 200 mm x 200 mm
motor 3.0 Kw AC
Saw blade size 4200 x 34 x 1,1 mm
Saw blade speed 15-150 m/min
length of remaining piece without bundle clamp manual: 85 mm automatic: –
length of remaining piece with bundle clamp manual: 260mm automatic: –
max. material size with bundle clamp Ø 320 320 x 300 mm
shortest Ø 5mm
Dimensions 1450 x 2200 x 1400 mm
Working Height 750mm
Weight 1190 kg
PDF icon Download PDF

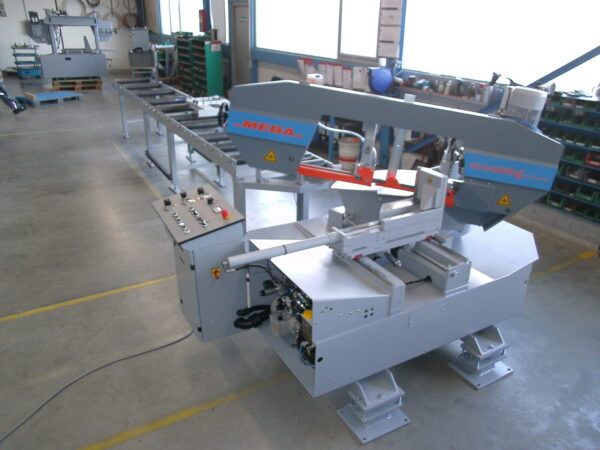

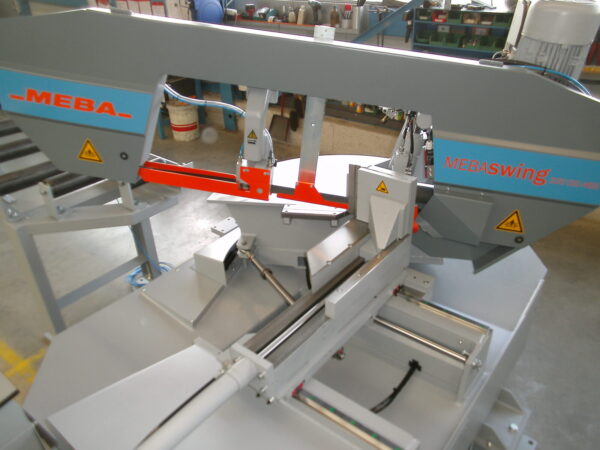

Gallery
