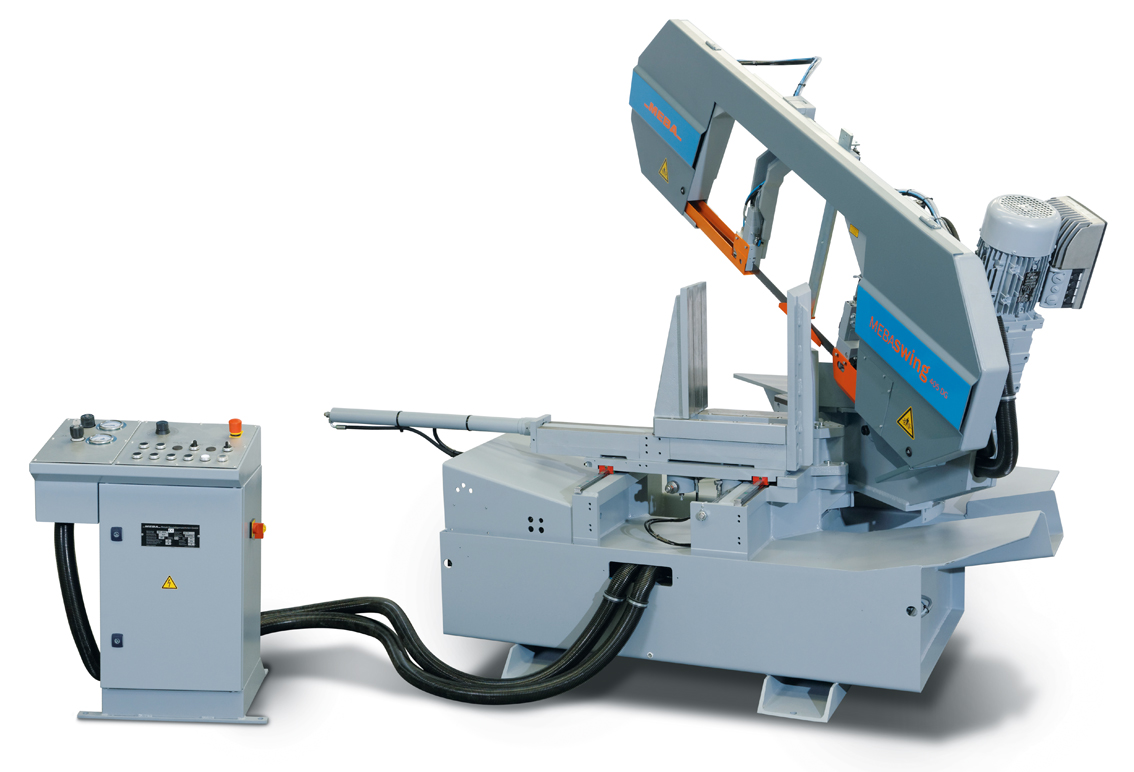

MEBA Swing 405 DG – Semi-Automatic Bandsaw Machine
MEBA Swing 405 DG – Semi-Automatic Bandsaw Machine image 1 MEBA Swing 405 DG – Semi-Automatic Bandsaw Machine image 2 MEBA Swing 405 DG – Semi-Automatic Bandsaw Machine image 3 MEBA Swing 405 DG – Semi-Automatic Bandsaw Machine image 4 MEBA Swing 405 DG – Semi-Automatic Bandsaw Machine image 5 MEBA Swing 405 DG – Semi-Automatic Bandsaw Machine image 6 MEBA Swing 405 DG – Semi-Automatic Bandsaw Machine image 7 MEBA Swing 405 DG – Semi-Automatic Bandsaw Machine image 8 MEBA Swing 405 DG – Semi-Automatic Bandsaw Machine image 9

MEBA Swing 405 DG – Semi-Automatic Bandsaw Machine

The MEBAswing 405 DG semi-automatic miter bandsaw offers stepless 30°–135° angle adjustment, hydraulic clamping, a high-precision carbide roller guide, and an efficient coolant system, delivering excellent performance for varying materials and profiles.

Semi-automatic sawing cycle with workpiece clamping – cutting – lifting to the preset height after completion of the cut

MEBA high-performance package: stepless hydraulic monitoring of cutting pressure and feed at the back of the saw blade, ensuring optimal conditions for every sawing task, i.e., constant pressure for solid material and constant feed for thin-walled profiles

Material height detection with automatic switching from rapid to cutting feed

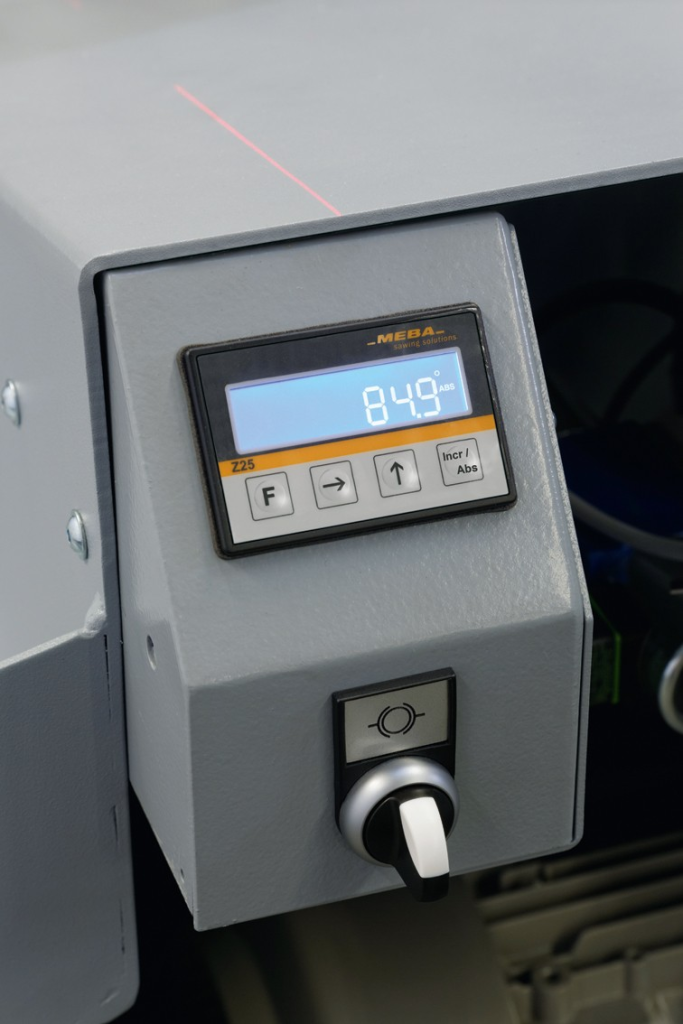

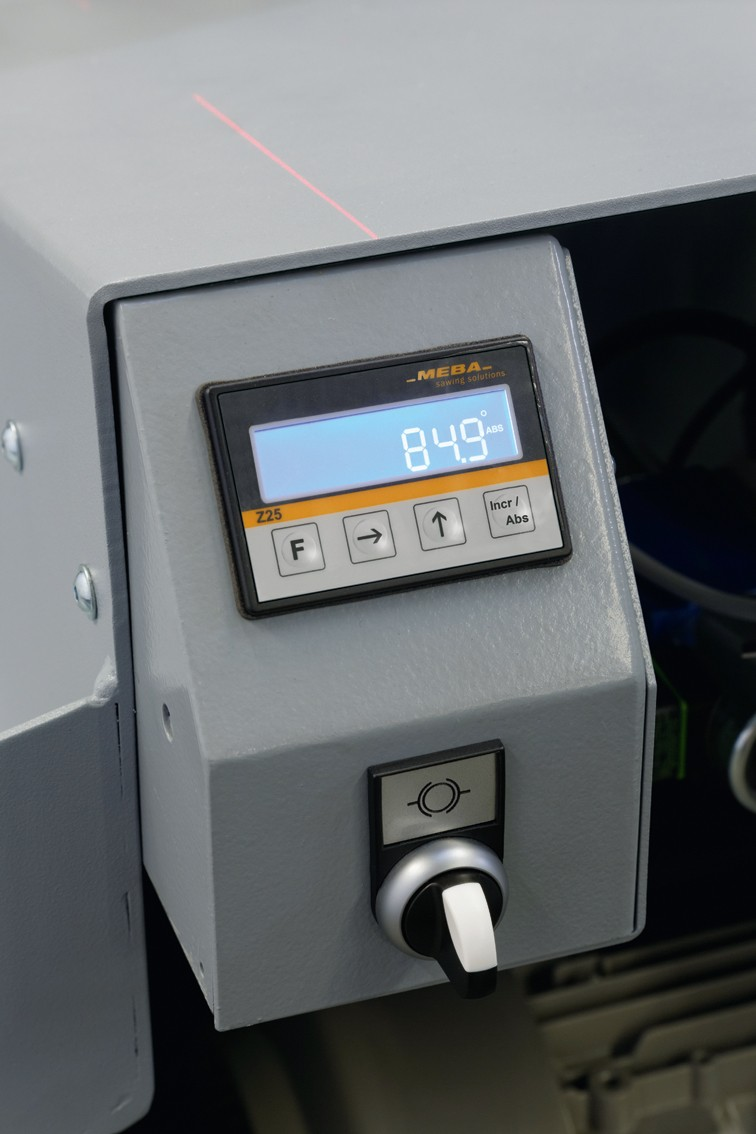

Manual miter adjustment from 30° to 135°, digitally displayed

The miter pivot point is at the intersection of the saw blade and the fixed clamping jaw, ensuring no change in length when the angle setting is changed

Hydraulic full-stroke workpiece clamping – CETOP hydraulic system

Rapid material clamping: at any saw frame angle, the material is clamped parallel at 90°

Complete coolant system with electric submersible pump

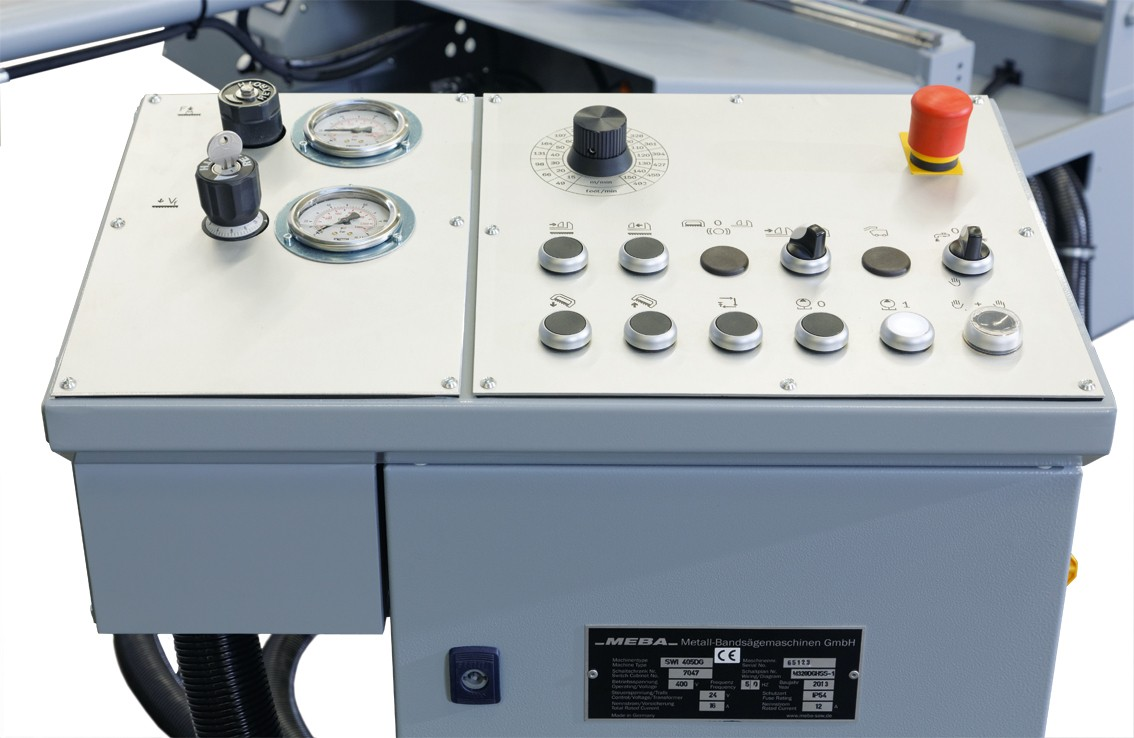

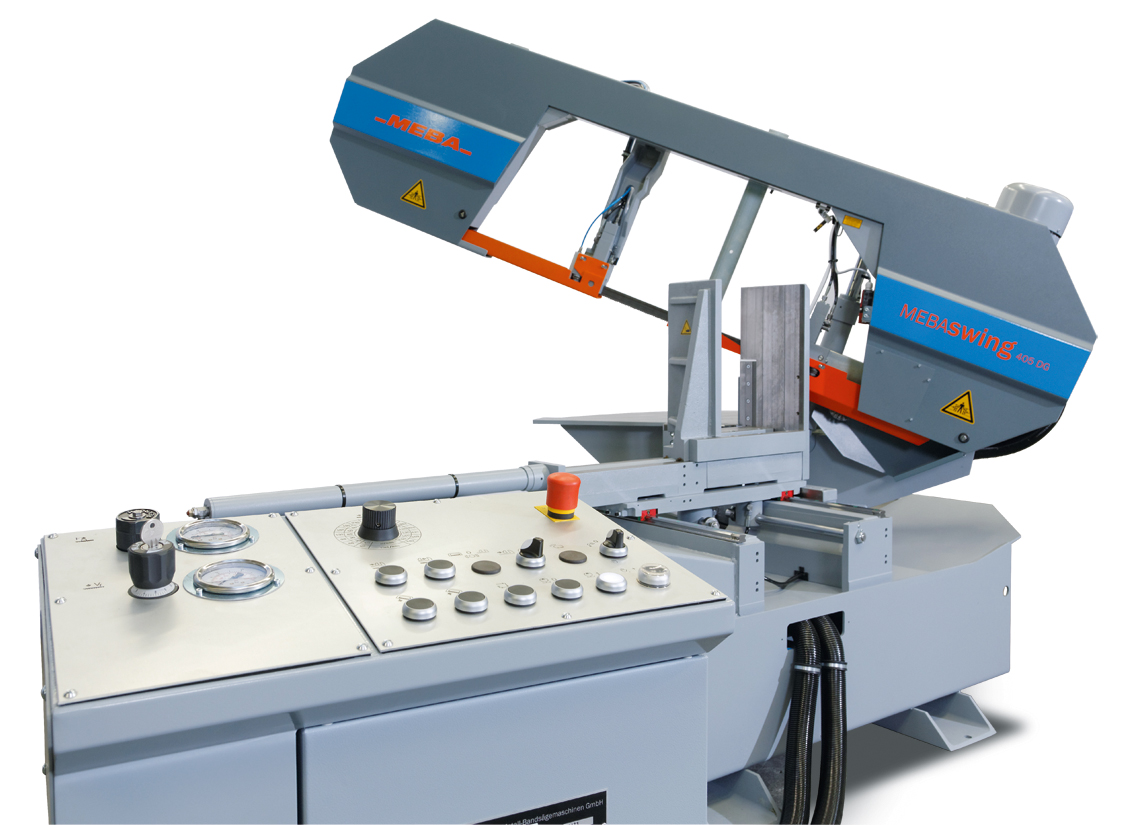

Central machine operation

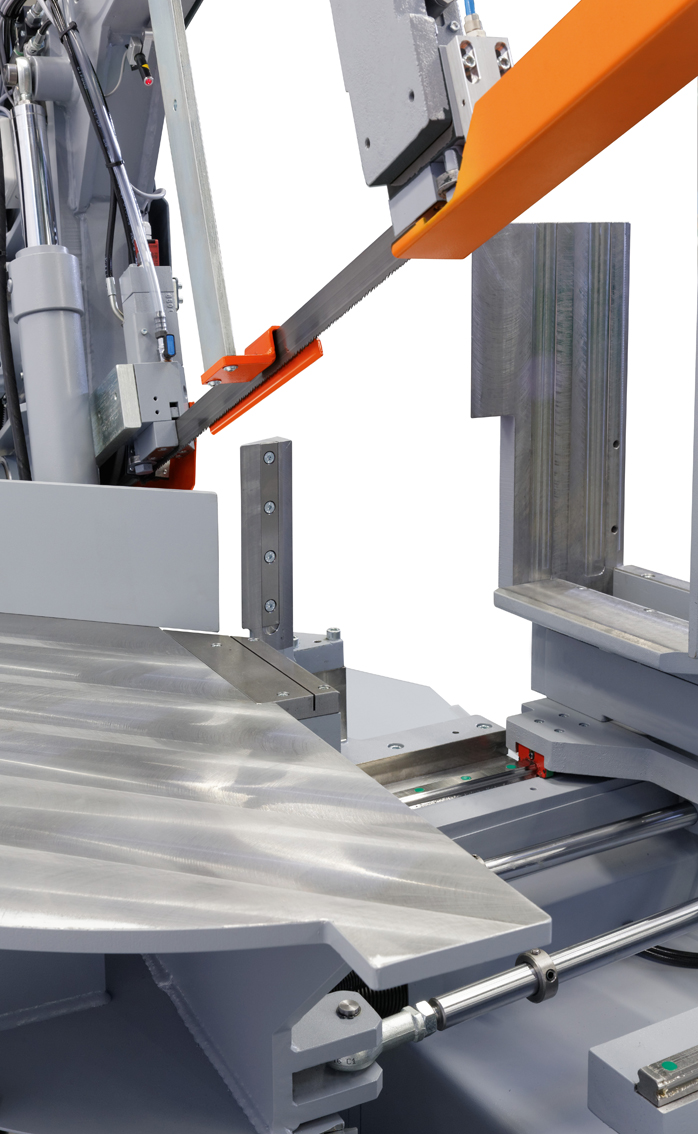

Movable band guide arm, adjustable to material width

Saw blade guide rollers with carbide guides

Chip cleaning brush running with the saw

Saw blade tensioning with torque wrench

Operating manual and spare parts list (digital)

1 MEBA bimetal saw blade 4/6 TPI supplied with the machine

Paint finish silver gray / blue gray (RAL 7001 / RAL 7031)

Enquire about this machine
ISO 9001:2015 certified
25+ years' experience
UK-wide service engineers
Download PDF datasheet

Optional extras

Main vice opens after the cut is completed
LED machine light (spotlight)
Micro-dosing system
Laser pointer for cut line marking / layout cuts
Minimum speed monitoring for MEBAswing 405 DG
Clamping pressure regulation for separately positioned control panel
Hydraulic material bundle clamping
Driven chip brush
Special 2-color paint finish according to RAL chart
Manual lifting roller
Compressor for micro-dosing system
Setup elements (4 × M16)
Water spray gun
Roller conveyors available in various lengths

Technical data

45° L
Ø 300mm
90°
Ø 410 mm
45° R
Ø 410
30° R
Ø 300
motor
3.0 Kw AC
Saw blade size
5000 x 34 x 1,1 mm
Saw blade speed
15-150 m/min
Dimensions
1450 x 2450 x 1420 mm
Working Height
750mm
Weight
1300kg

MEBA Swing 405 DG – Semi-Automatic Bandsaw Machine

Machine Description

The MEBAswing 405 DG semi-automatic miter bandsaw offers stepless 30°–135° angle adjustment, hydraulic clamping, a high-precision carbide roller guide, and an efficient coolant system, delivering excellent performance for varying materials and profiles.

  • Semi-automatic sawing cycle with workpiece clamping – cutting – lifting to the preset height after completion of the cut
  • MEBA high-performance package: stepless hydraulic monitoring of cutting pressure and feed at the back of the saw blade, ensuring optimal conditions for every sawing task, i.e., constant pressure for solid material and constant feed for thin-walled profiles
  • Material height detection with automatic switching from rapid to cutting feed
  • Manual miter adjustment from 30° to 135°, digitally displayed
  • The miter pivot point is at the intersection of the saw blade and the fixed clamping jaw, ensuring no change in length when the angle setting is changed
  • Hydraulic full-stroke workpiece clamping – CETOP hydraulic system
  • Rapid material clamping: at any saw frame angle, the material is clamped parallel at 90°
  • Complete coolant system with electric submersible pump
  • Central machine operation
  • Movable band guide arm, adjustable to material width
  • Saw blade guide rollers with carbide guides
  • Chip cleaning brush running with the saw
  • Saw blade tensioning with torque wrench
  • Operating manual and spare parts list (digital)
  • 1 MEBA bimetal saw blade 4/6 TPI supplied with the machine
  • Paint finish silver gray / blue gray (RAL 7001 / RAL 7031)

Standard Features

Optional Features

  • Main vice opens after the cut is completed
  • LED machine light (spotlight)
  • Micro-dosing system
  • Laser pointer for cut line marking / layout cuts
  • Minimum speed monitoring for MEBAswing 405 DG
  • Clamping pressure regulation for separately positioned control panel
  • Hydraulic material bundle clamping
  • Driven chip brush
  • Special 2-color paint finish according to RAL chart
  • Manual lifting roller
  • Compressor for micro-dosing system
  • Setup elements (4 × M16)
  • Water spray gun
  • Roller conveyors available in various lengths
45° L Ø 300mm 300 mm x 300mm
90° Ø 410 mm 620 mm x 410mm
45° R Ø 410 420 mm x 360 mm
30° R Ø 300 300 mm x 300 mm
motor 3.0 Kw AC
Saw blade size 5000 x 34 x 1,1 mm
Saw blade speed 15-150 m/min
Dimensions 1450 x 2450 x 1420 mm
Working Height 750mm
Weight 1300kg
