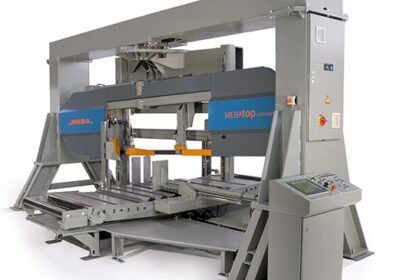

MEBA Top 1270 DGP – Semi-Automatic Bandsaw

MEBA Top 1270 DGP is a Semi-automatic Double mitre-cut bandsaw 30°-135°

Wide swivel range up to ±30° on both sides
Digital mitre display 30°-135°
Because the swivel bearing and mitre measuring and locking systems are mounted overhead, they are clear of contamination from chips and coolant
Stepless cutting speed by AC-drive
Saw blade guidance can be adjusted to material width
Driven saw blade cleaning brush
MEBA comfort package: NC mitre swivelling by program input, movable, hydraulic guide arm, the compact design allows material flow in either direction.
Unique mitre bearing above the material achieves unequalled advantages:
– Wide swivel range up to ±30° on both sides
– Material can be fed from either side of machine
– The material is always clamped at 90 °to the blade

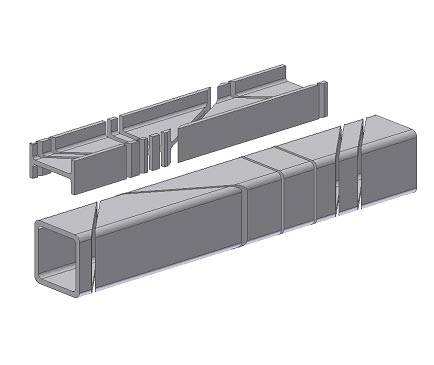

– Almost no remaining pieces
Extremely rugged and powerful saw blade drive

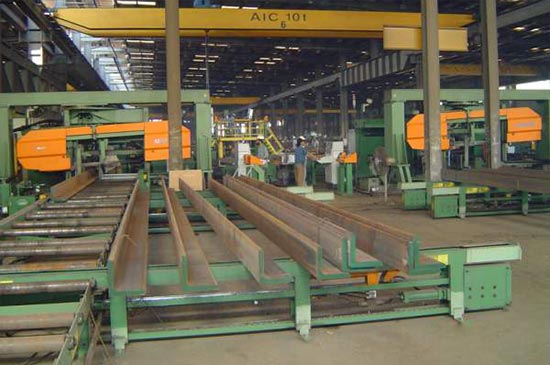

Continous and driven material roller track until close to the saw blade:
Short sections are carried in and out of the machine smooth and problem-free
Liftable vice on the material lay-on edge for a frictionless material handling

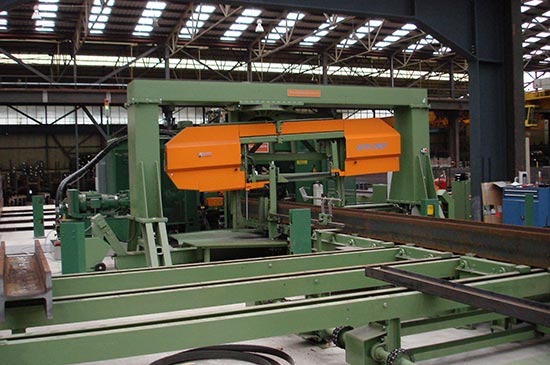

In combination with a drill, MEBAtop achieves a unique productivity.
In co-operation with Peddinghaus Corporation we have been designing and building successfull sawing-drilling plants throughout the world, for many years.

Cutting capacity	mm
30° left	–
45° left	Ø 600900 x 600
90°	Ø 6001270 x 600
45° right	Ø 600850 x 600
30° right	Ø 520520 x 600
motor	14,5 kW
saw blade	9800 x 67 x 1,6 mm
saw blade speed	15/150 m/min.
length of remaining piece without bundle clamp	manual: 40 mm automatic: –
max. material size with bundle clamp	option not available
