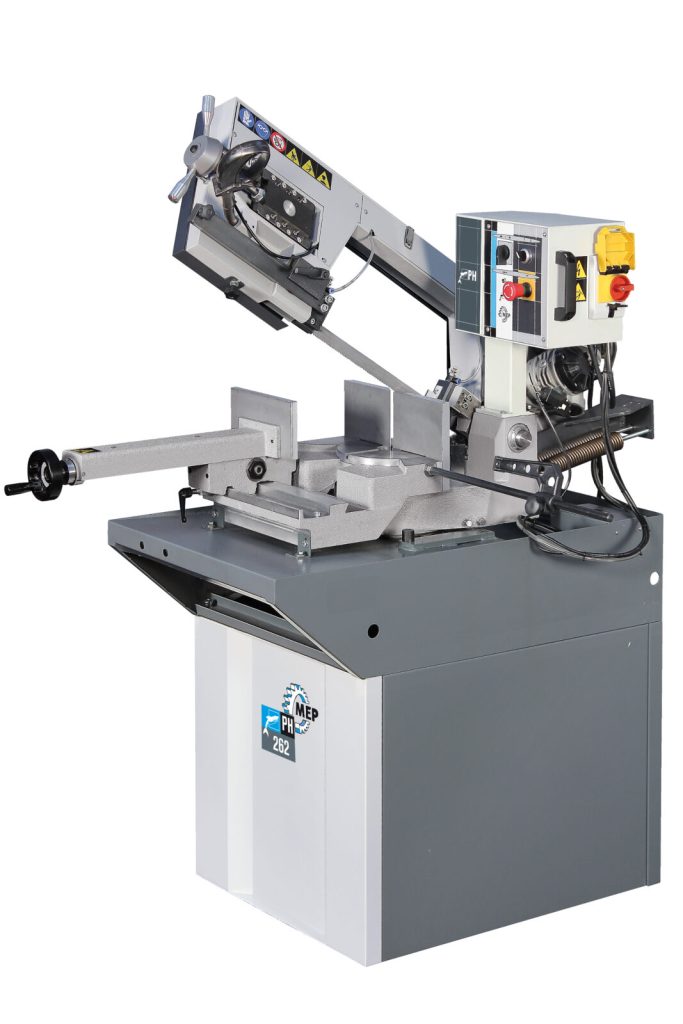

The PH262 is a manual pulldown bandsaw machine with two way mitring -45° to +60°.
Capacity: 240mm x 160mm
The PH262 is a manual pulldown bandsaw machine with one way mitring from -45° to +60°. Featuring a capacity of 240mm x 160mm.
Sturdy cast iron structure
Electrical control board with 24v equipped with motor overload protection
Carbide blade guides instead of bearings to ensure better stability
Quick release lever for mitring
Saw head pivots with tapered bearings
Vice with quick release lever
Self-contained coolant system within the saw base with electric pump
Double spring for counter balance for head return
Swarf brush driven by blade
Measuring rod with scale for repeat cutting Instruction manual and spare parts list also supplied.
Hydraulic circuit with control valve for downfeed
1.5 K200 Roller Table for Infeed and Outfeed
R1, and R2 Measuring system with flip over stop
| Cutting Capacity (mm) | Round | Square | Rectangle |
|---|---|---|---|
| 0° | 225mm | 200mm | 240mm x160mm |
| 45° | 160mm | 140mm | 155mm x 115mm |
| 60° | 90mm | 90mm | 90mm x 90mm |
| TECHNICAL DATA | |
|---|---|
| Electric Motor Single Phase
<br>
Electric Motor Three Phase | 0.75 KW
<br>
0.70/0.81 KW |
| Blade Size | 2450mm x 27 x 0.9 |
| Variable Blade Speed – Single Phase
<br>
Variable Blade Speed – Three Phase | N/A
<br>
46/92 m/min |
| Machine Dimensions | 1700mm x 715mm |
| Machine Weight | 240Kg |
