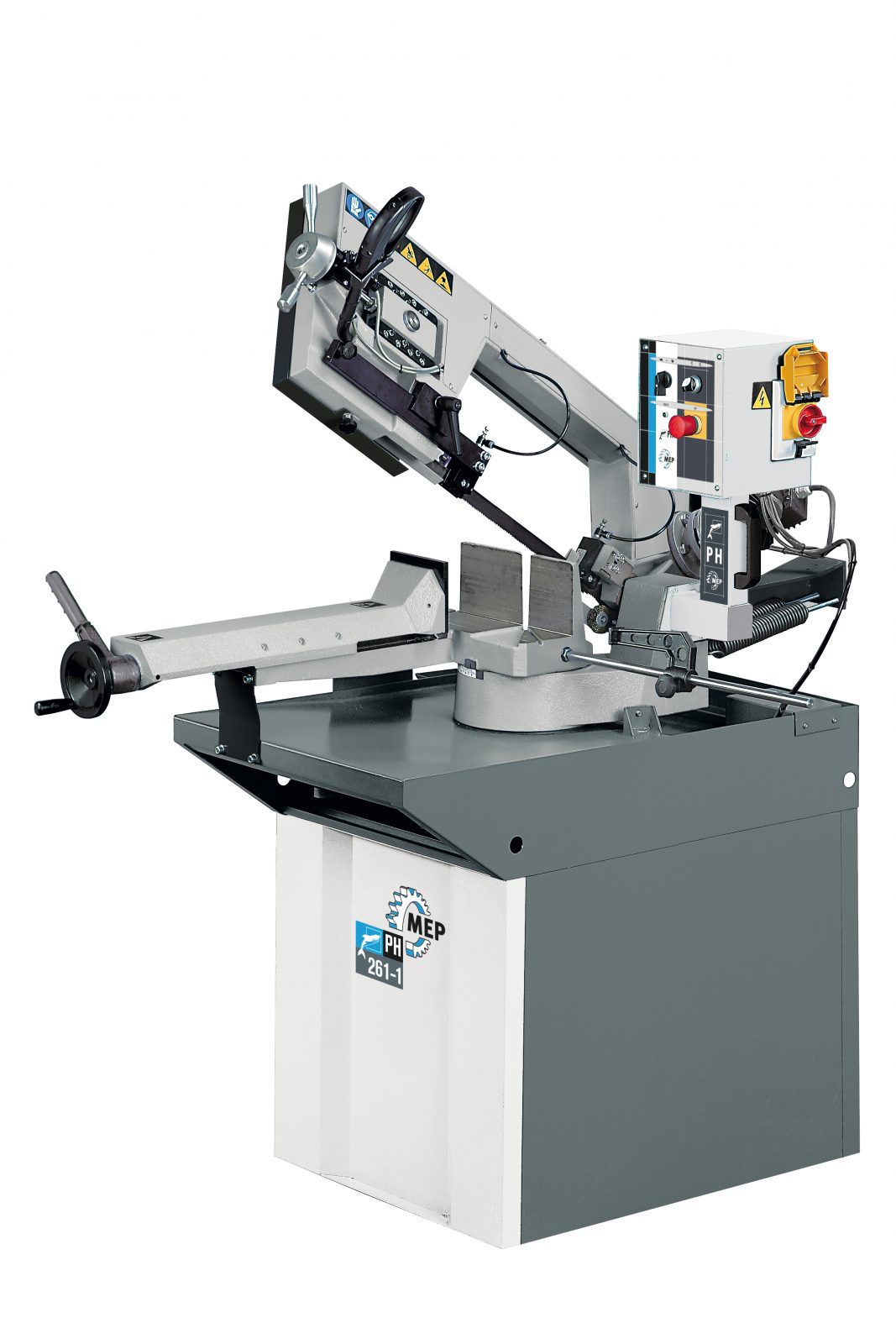

MEP PH261-1 – Manual Pull-Down Bandsaw Machine

Machine Description

The PH 261-1 is a manual pull-down band sawing machine to cut metals mitering from 0° to +60°, also available in the HB version to perform, in addition to manual cutting, even single cuts without operator.

The PH261-1 is a manual pulldown bandsaw machine with one way mitring from 0-60° on the left. Featuring a capacity of 240mm x 160mm.

  • Sturdy cast iron structure
  • Electrical control board with 24v equipped with motor overload protection
  • Carbide blade guides instead of bearings to ensure better stability
  • Quick release lever for mitring
  • Saw head pivots with tapered bearings
  • Vice with quick release lever
  • Self-contained coolant system within the saw base with electric pump
  • Double spring for counter balance for head return
  • Swarf brush driven by blade
  • Measuring rod with scale for repeat cutting Instruction manual and spare parts list also supplied.

Standard Features

Optional Features

  • HB Cutting Cycle (Automatic Downfeed)
  • Hydraulic circuit with control valve for downfeed
  • 1.5 K200 Roller Table for Infeed and Outfeed
  • R1, R2  Measuring system with flip over stop
Cutting Capacity (mm) Round Square Rectangle
0° 225mm 200mm 240mm x160mm
45° 160mm 140mm 155mm x 115mm
60° 90mm 90mm 90mm x 90mm
TECHNICAL DATA
Electric Motor Single Phase
0.75 KW
Electric Motor Three Phase
0.70/0.81 KW
Blade Size
2450mm x 27 x 0.9
Variable Blade Speed – Single Phase
N/A
Variable Blade Speed – Three Phase
46/92 m/min
Machine Dimensions
1700mm x 715mm
Machine Weight
240Kg
