MEP Shark 282 – Manual Pulldown Bandsaw Machine

The SHARK 282 is manual band sawing machine that cuts from 45° right to 60° left.

Capacity: 280mm x 220mm

Hydraulic transducer to visualize band tensioning.

– Wire chip brush for band cleaning.

– Double head return spring.

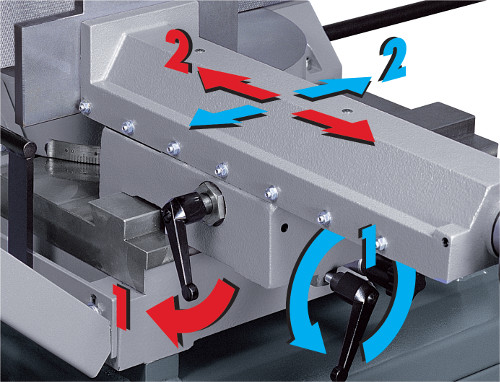

– Sliding vice with sideways movement and fast-positioning system.

– Wide working surface with rotating table installed on a roller bearing, dia. 265 mm, pre-loaded with thrust bearing.

– Adjustable precision stops for cuts at 0°, 45°, 60° left and 45° right.

– Steel base with removable coolant tray.

– Electric pump for band lubrication and cooling.

– Machine arranged for handling with movement equipment.

– Adjustable rod to measure stop to make cuts of the same length with millimetred steel rod.

– Stock support arm with roller predisposed to mount loading table.

– Bi-metal band for solids and sections.

– Service keys and instructions manual for maintenance and spare parts list.

– The CUT CONTROL SYSTEM (CCS) can be retrofitted on machines out in the field.
