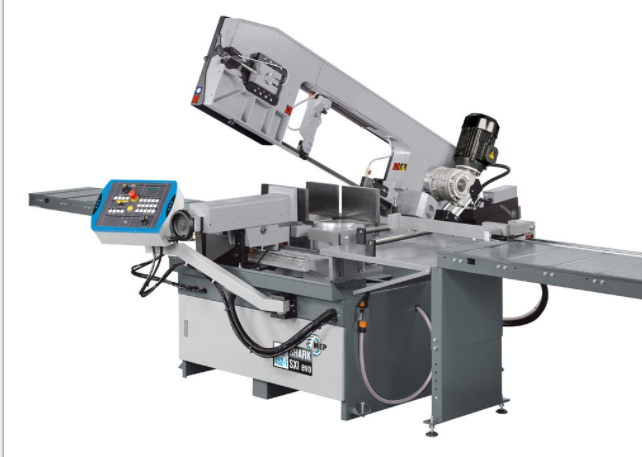

SHARK 452-1 SXI evo, semi-automatic electro hydraulic sawing machine with 4500x34x1,1 mm band, to cut pipes, profiles and beams up to 450 x 320 mm at 0°.
Capacity: 450 x 320 mm
| Cutting Capacity (mm) | Round | Square | Rectangle |
|---|---|---|---|
| 0° | 330 mm | 320 mm | 450 x 320 mm |
| 45° Left | 320 mm | 300 mm | 300 mm |
| 60 ° left | 210 mm | 200 mm | 200 mm |
| 45° right | 320 mm | 300 mm | 300 mm |
| 60° right | 210 mm | 200 mm | 200 mm |
| TECHNICAL DATA | |
|---|---|
| Electric Motor Three Phase
|
4,0 Kw
|
| Blade Size
|
4500 x 34 x 1,1
|
| Weight |
1100 kg
|
| Max Open Vice
|
455 |
