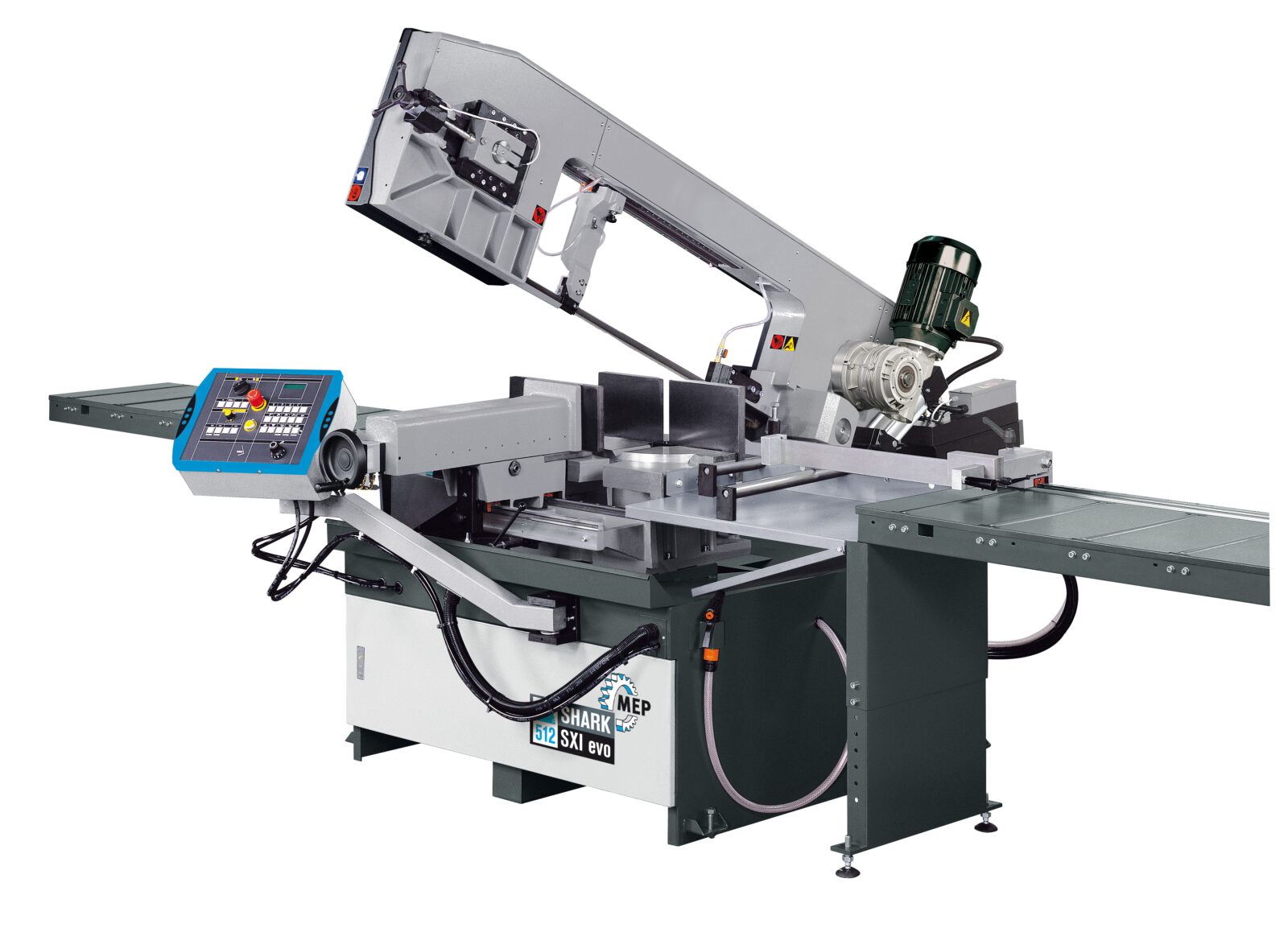

MEP Shark 512 SXI EVO – Semi-Automatic Bandsaw Machine

Machine Description

The MEP Shark 512 SXI EVO semi-automatic bandsaw designed for precision cutting of tubes, profiles, and beams in fabrication, engineering, and industrial workshops.

Built with robust cast iron construction, this versatile bandsaw delivers stable, accurate cuts with long blade life, and offers miter cutting from –60° to +60° and a cutting capacity of up to 510mm x 320mm, making it ideal for complex angle cutting tasks on structural steel and sections.

The Shark 512 SXI EVO features an intuitive operator console on an articulated arm, easy-to-use controls, and an LCD display for real-time machine status. Hydraulic vice and head feed systems ensure consistent cutting pressure, while an electronic inverter allows variable blade speed from 15–100 m/min, accommodating a wide range of metalwork requirements.

Designed for efficiency and safety, the saw includes chip and coolant recovery, a rotating cutting table with engraved scales, and a large vice opening up to 515 mm, supporting large sections up to 510 × 320 mm at 0°.

Whether used for standard straight cuts or demanding miter work, the MEP Shark 512 SXI EVO delivers reliable, high-performance cutting for modern metalworking operations.

Typical Materials it Can Cut

  • Steel bars and solid round material
  • Metal tubes and pipes (round, square, rectangular)
  • Structural steel profiles (I‑beams, H‑beams, L‑angles, channels)
  • Aluminium profiles and bars
  • Stainless steel sections
  • Fabrication components and beams



It’s ideal for both straight and angled cuts, with capacities suitable for large sections and heavy-duty materials, making it highly versatile for industrial metal cutting applications.



Cutting capacity

Cuts up to 330 mm round, 320 mm square, or 510 × 320 mm rectangular at 90°.

Standard Features

  • Main control panel:
  • Articulated arm for the main control panel for full control in all operating positions
  • LCD display showing the status of the sawing machine, its parameters allowing maximum live control
  • Adjustable head stroke limits according to the dimensions of the bars to be cut to speed up the cutting cycle
  • User friendly with display and mechanical buttons ensuring reliable, easy programming
  • Cutting range from –60° to +60° for maximum flexibility on angled cuts.
  • Lockable mechanical stops at –60°, –45°, 0°, +45° and +60° for fast and accurate angle positioning of the saw head.
  • Heavy cast‑iron construction on saw head, cutting table and vice to absorb vibration during the cut and extend blade life.

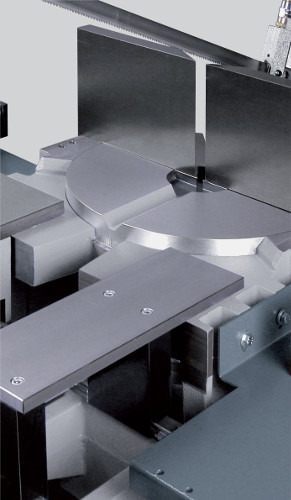

  • Large rotating cutting table on central pin and roller thrust bearing for smooth rotation at any angle adjustment
  • Angle scale is engraved on turning table to perform precise cuts to tolerance

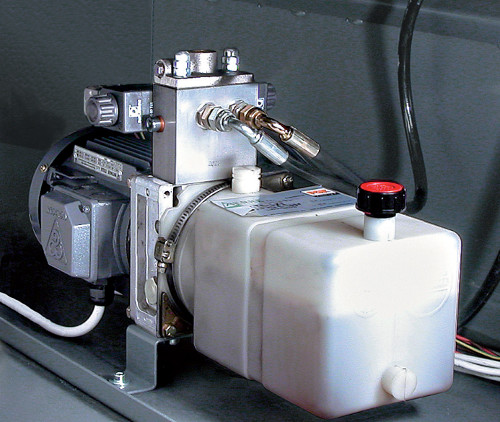

  • Hydraulic down‑feed and vice control system provides consistent cutting pressure and secure clamping.

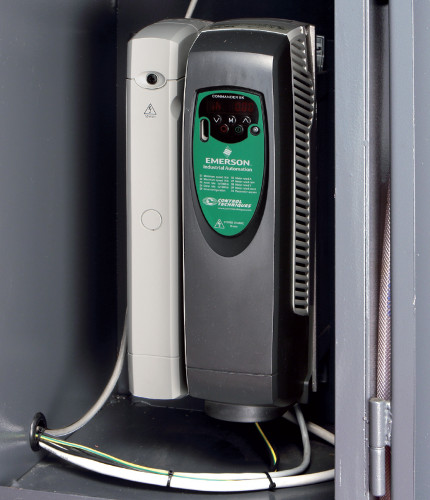

  • Vector inverter with variable blade speed (15–100 m/min) for cutting a wide range of metals.
  • Hardened steel replaceable wear plates on the working surface for durability and stability.
  • Integrated chip and coolant management with removable chip drawer and coolant recovery for clean working conditions.

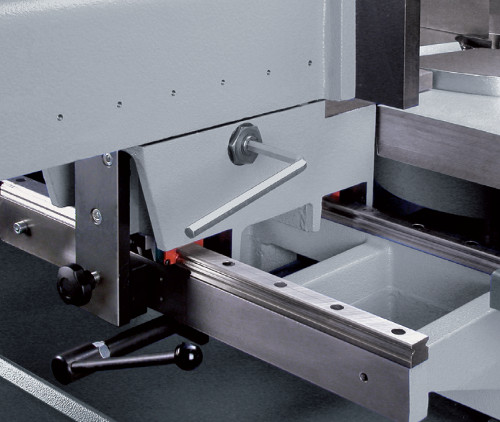

  • Bar support roller on linear guide for easy movement and safe handling at full cutting angles.
  • Quick release clamping system allows to manually open/close the vice easily

Cutting capacity

Cuts up to 330 mm round, 320 mm square, or 510 × 320 mm rectangular at 90°

Optional Features

  • Digital angle dispaly
  • variable vice pressure
  • laser projector & work light
  • hydraulic vertical vices for bundle cutting – cutting max. 510x180mm
  • sprya mist sytem
  • supplementary foot pedal with emergency stop
Cutting Capacity (mm) Round Square Rectangle
0° 330 mm 320 mm 510 x 320 mm
45° Left 320 mm 300 mm 350 x 320 mm
60 ° left 200 mm 200 mm 230 x 310 mm
45° right 320 mm 300 mm 380 x 320 mm
60° right 200 mm 200 mm 250 x 320 mm
TECHNICAL DATA
Electric Motor Three Phase
4 Kw
Blade Size
4640 x 34 x 1,1 mm
Weight
1190 kg
Weight
515 mm
