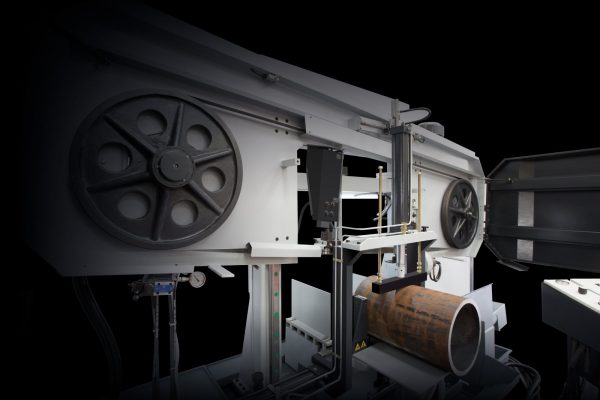

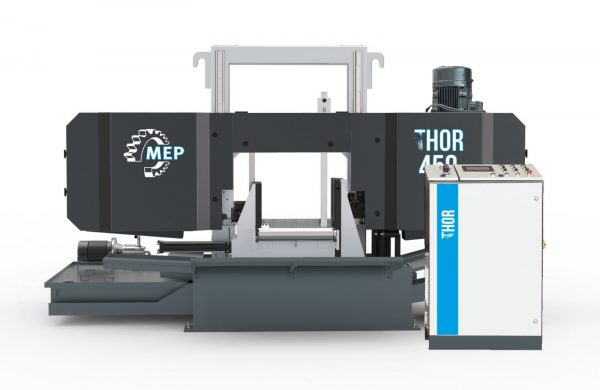

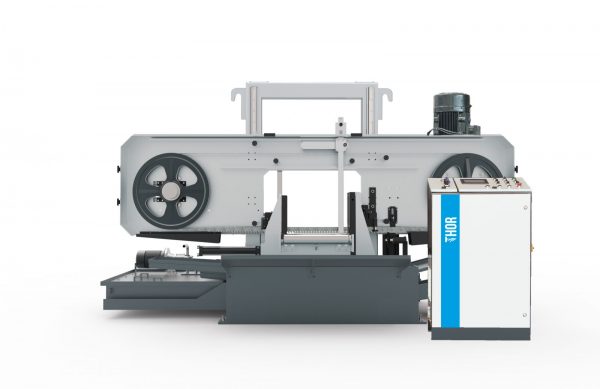

MEP Thor 450 – Semi-Automatic Double Column Bandsaw

THOR 450, dual-column semi-automatic band sawing machine for 0° cuts of structural steels, with size up to 450×450 mm.

Capacity: 450mm x 450mm

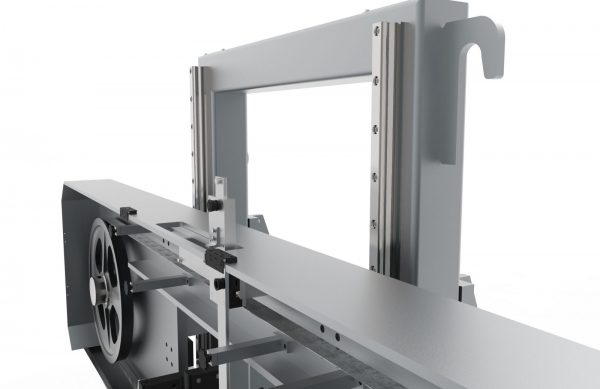

The MEP THOR range are semi automatic double column linear guides bandsaw machines suitable for cutting ferrous and non ferrous metals both in solid and structural metals. SIMPLE & POWERFUL.

• Straight cutting saw suitable for ferrous and non-ferrous materials solids and structural steels.

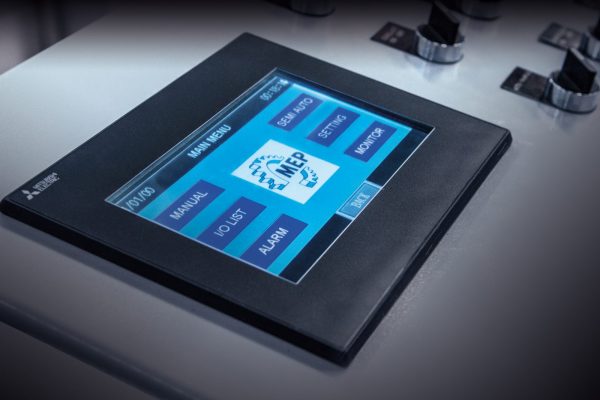

• User friendly programming cycles
• Use for both bi-metal and carbide tipped bandsaw blades
• Automatic down feed regulator to control feed rate depending upon the type of material to be cut
• Automatic height detector for saw head
• Built in coolant tank powered with coolant pump and flow nozzle

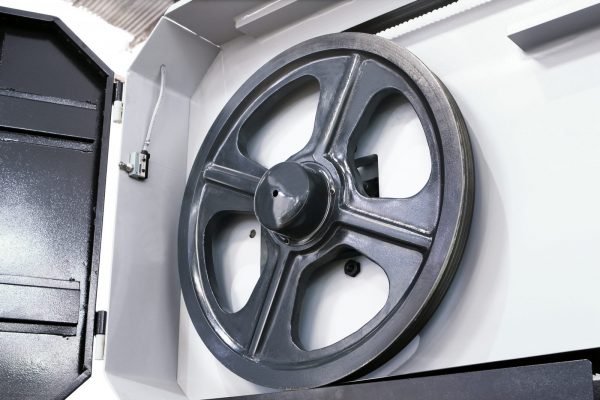

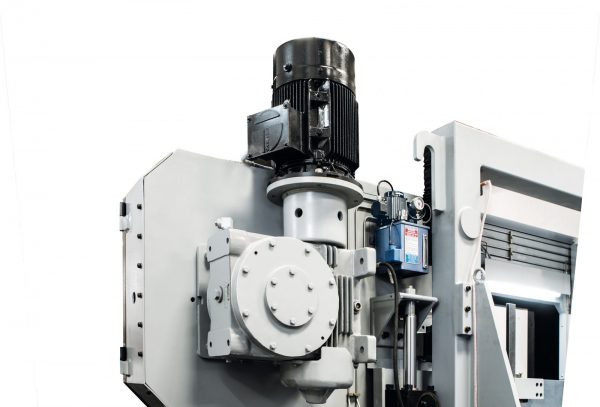

• Cast iron band wheels with worm reduction gear box

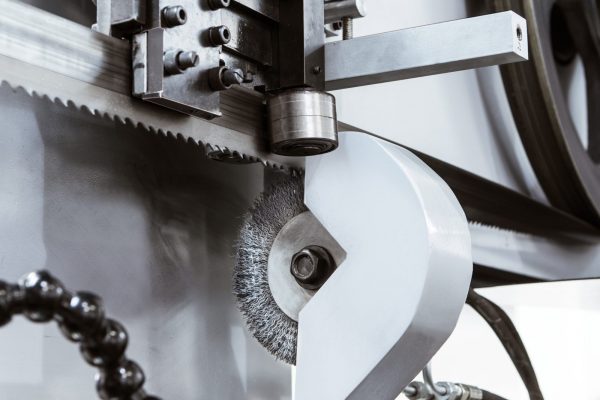

• Hydraulic driven swarf brush

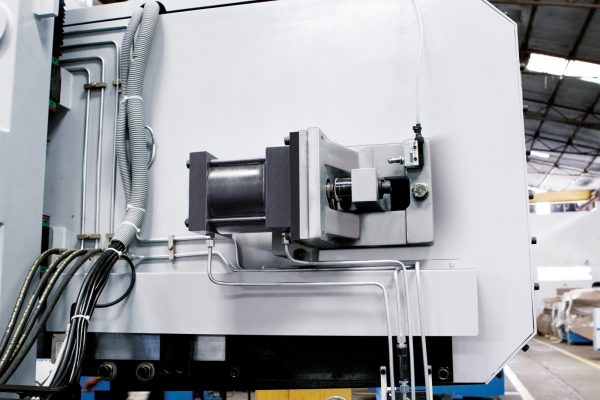

• Automatic hydraulic blade tensioning
• Automatic chip conveyor

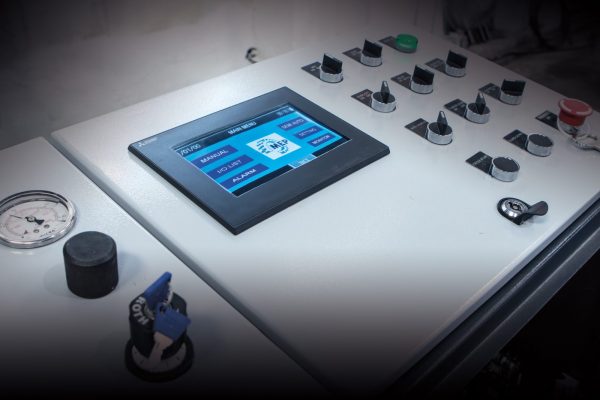

• Electrical control panel: push button, emergency stop, isolator, PLC, VFD, step down transformer, auxiliary contractor, cable connector and fuse connector
• Hydraulic valve and feed pressure adjustment valve are fitted on control panel for easy operation
• Moving blade guide
• Heavy duty structure to reduce vibrations and give maximum stability

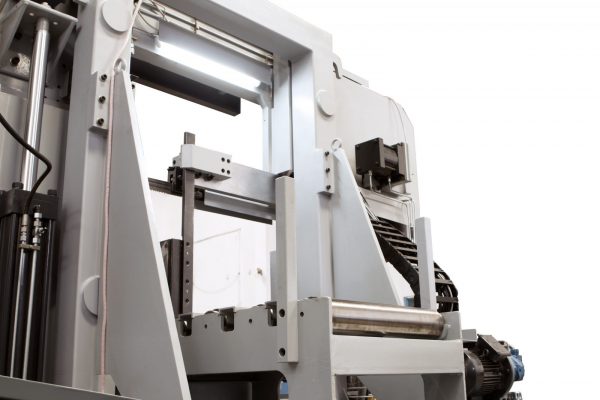

• Work light
• Split vice for rigid clamping and burrs free cuts

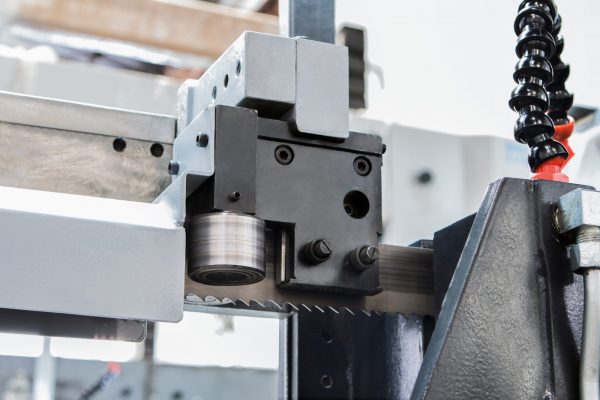

• Blade guides complete with carbide pads and anti-friction bearings
• Variable frequency blade speed drive
• Hydro mechanical sensor to adjust feed without operator involvement

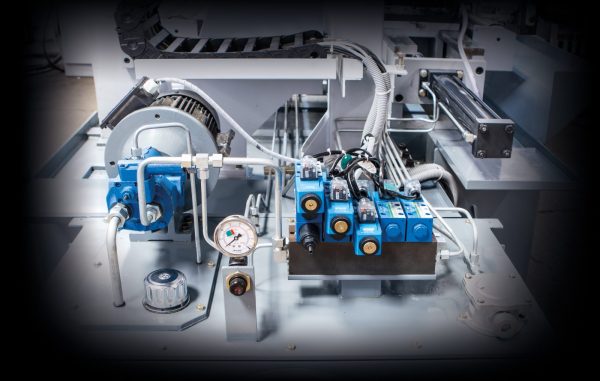

• Latest generation hydraulic power pack with high efficiency and low consumption
• Infinitely variable pressure and controlled cutting feed and upward return rapid movement by hydraulic cylinder
• Auto height stop on return stroke of cutting head
• Infinitely variable feed control valve. Hydraulic automatic feed regulation to adjust in automatic head feed rate according to size and hardness
• Automatic machine stops if blade breaks
• Hydraulically operated main vice with double acting hydraulic cylinder

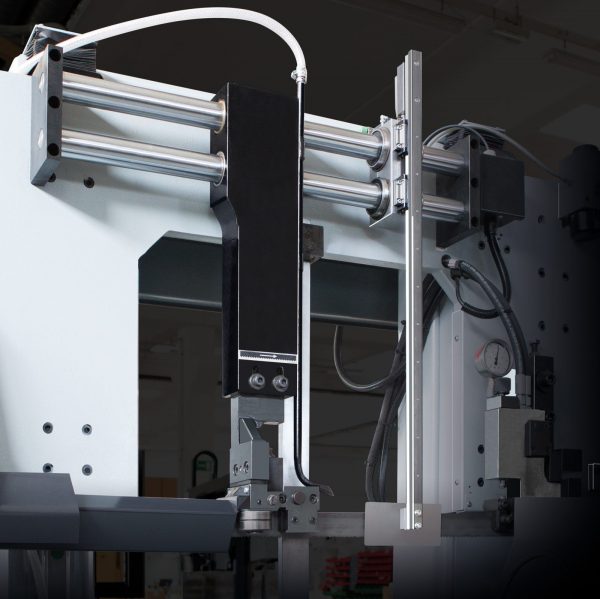

• Fast approach of saw head
• Fast approach blade device
