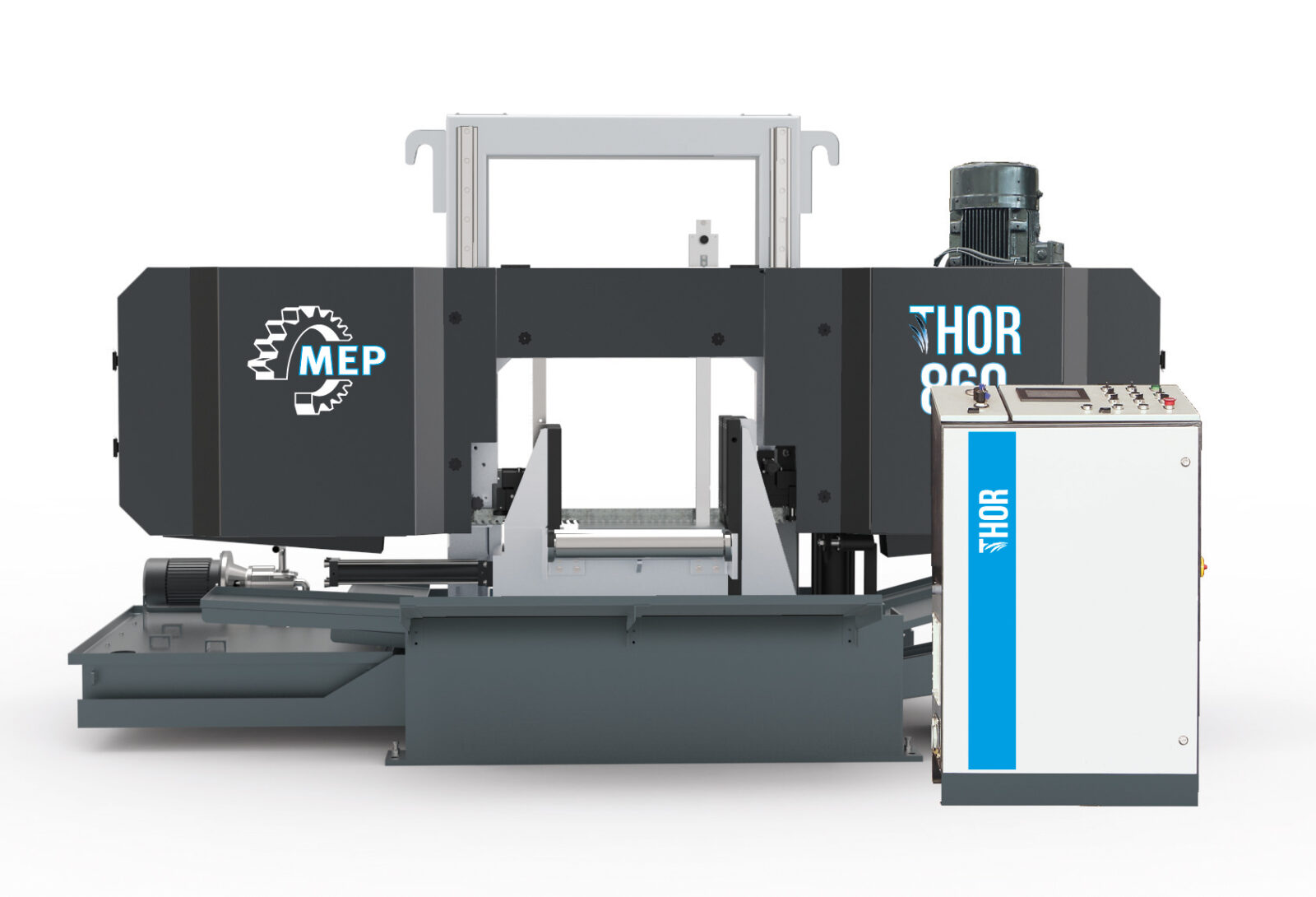

MEP Thor 860 – Semi-Automatic Double Column Bandsaw Machine

Machine Description

The MEP THOR range are semi automatic double column linear guides bandsaw machines suitable for cutting ferrous and non ferrous metals both in solid and structural metals. SIMPLE & POWERFUL.

Capacity: 860mm x 860mm

The MEP THOR range are semi automatic double column linear guides bandsaw machines suitable for cutting ferrous and non ferrous metals both in solid and structural metals. SIMPLE & POWERFUL.

  • Straight cutting saw suitable for ferrous and non-ferrous materials solids and structural steels.
  • User friendly programming cycles
  • Use for both bi-metal and carbide tipped bandsaw blades
  • Automatic down feed regulator to control feed rate depending upon the type of material to be cut
  • Automatic height detector for saw head
  • Built in coolant tank powered with coolant pump and flow nozzle

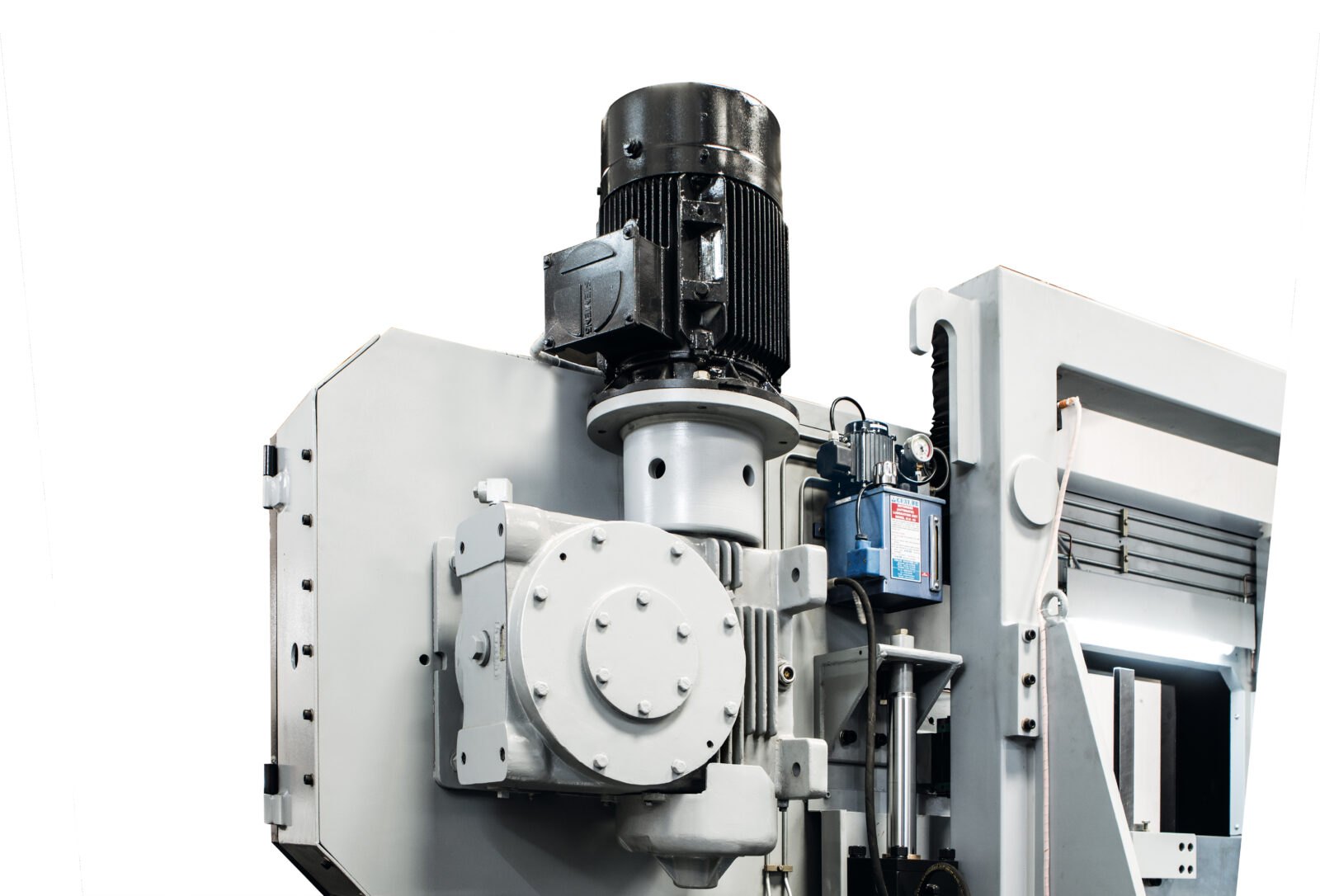

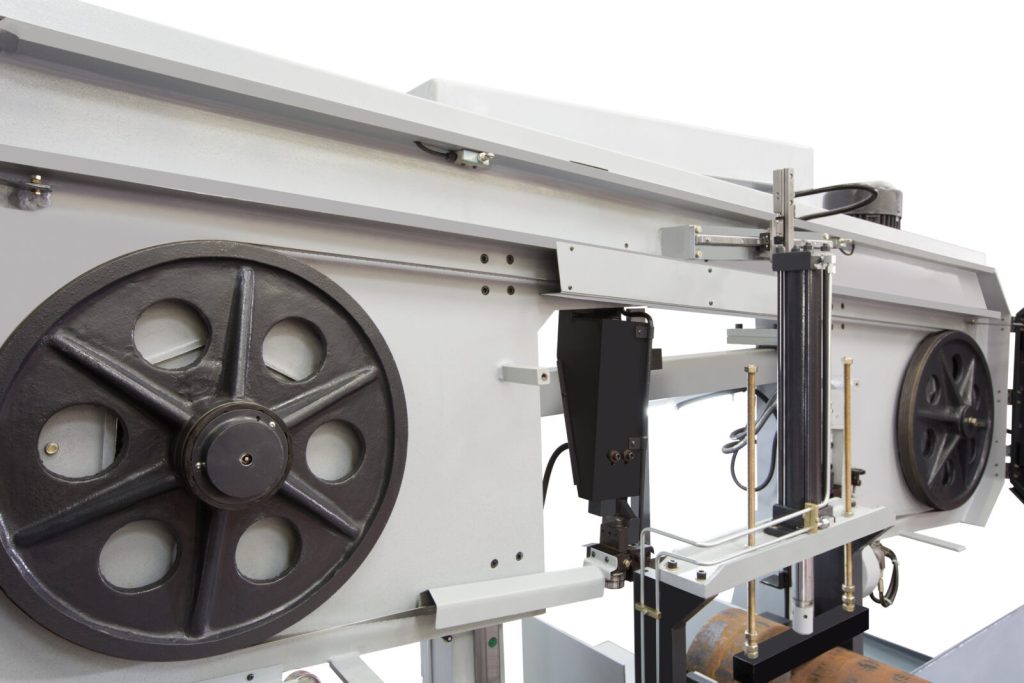

  • Cast iron band wheels with worm reduction gear box

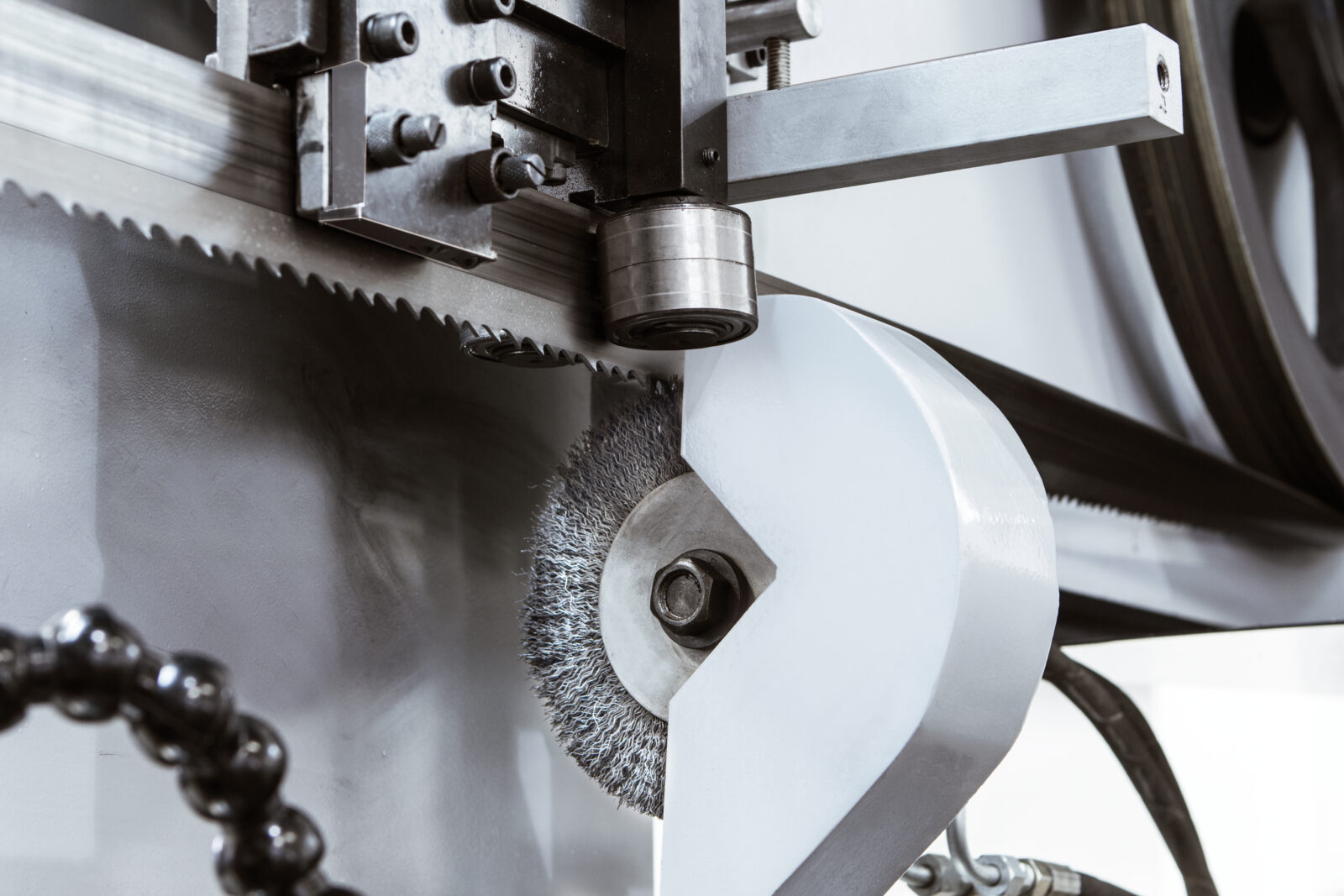

  • Hydraulic driven swarf brush

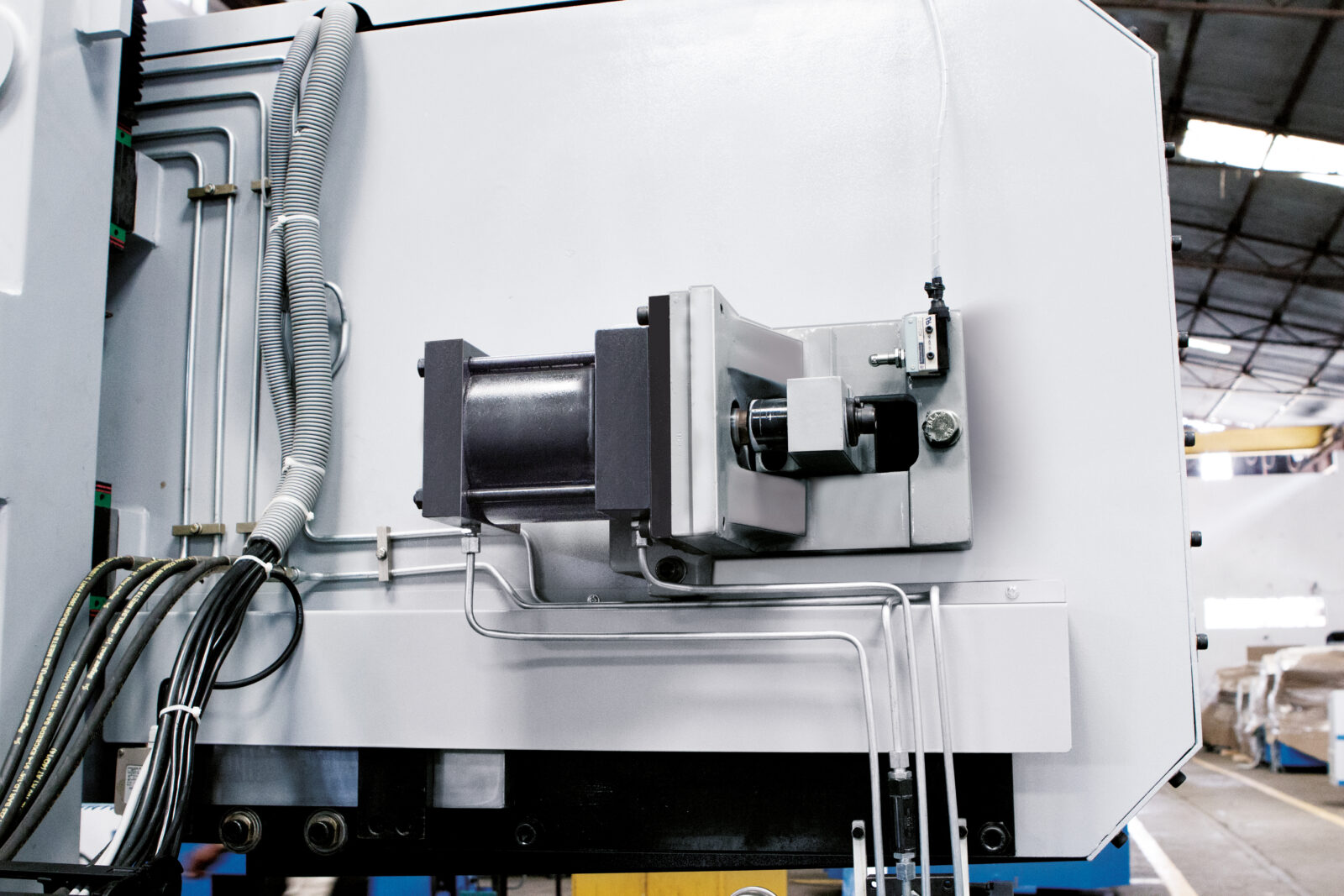

  • Automatic hydraulic blade tensioning

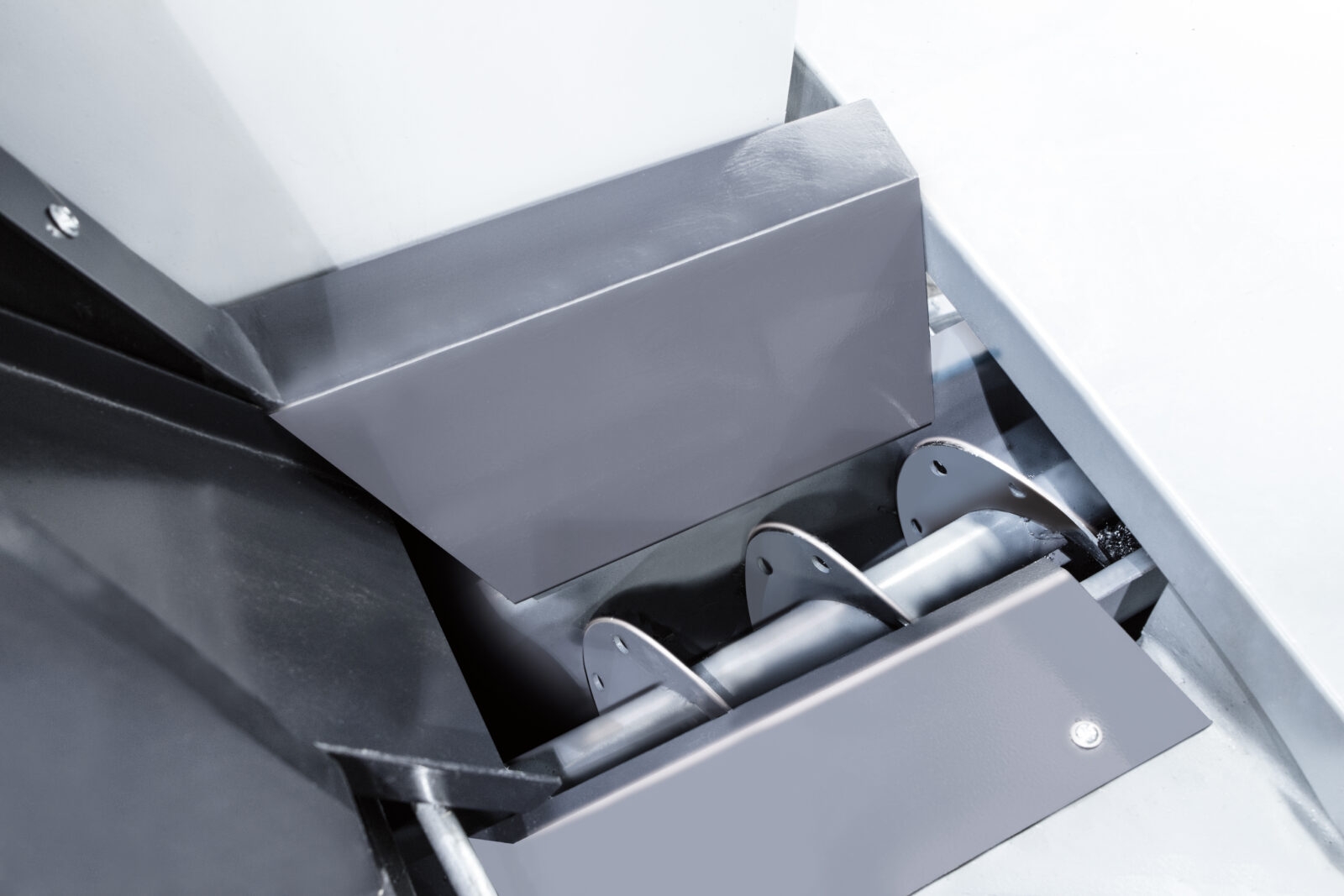

  • Automatic chip conveyor
  • Electrical control panel: push button, emergency stop, isolator, PLC, VFD, step down transformer, auxiliary contractor, cable connector and fuse connector
  • Hydraulic valve and feed pressure adjustment valve are fitted on control panel for easy operation
  • Moving blade guide
  • Heavy duty structure to reduce vibrations and give maximum stability

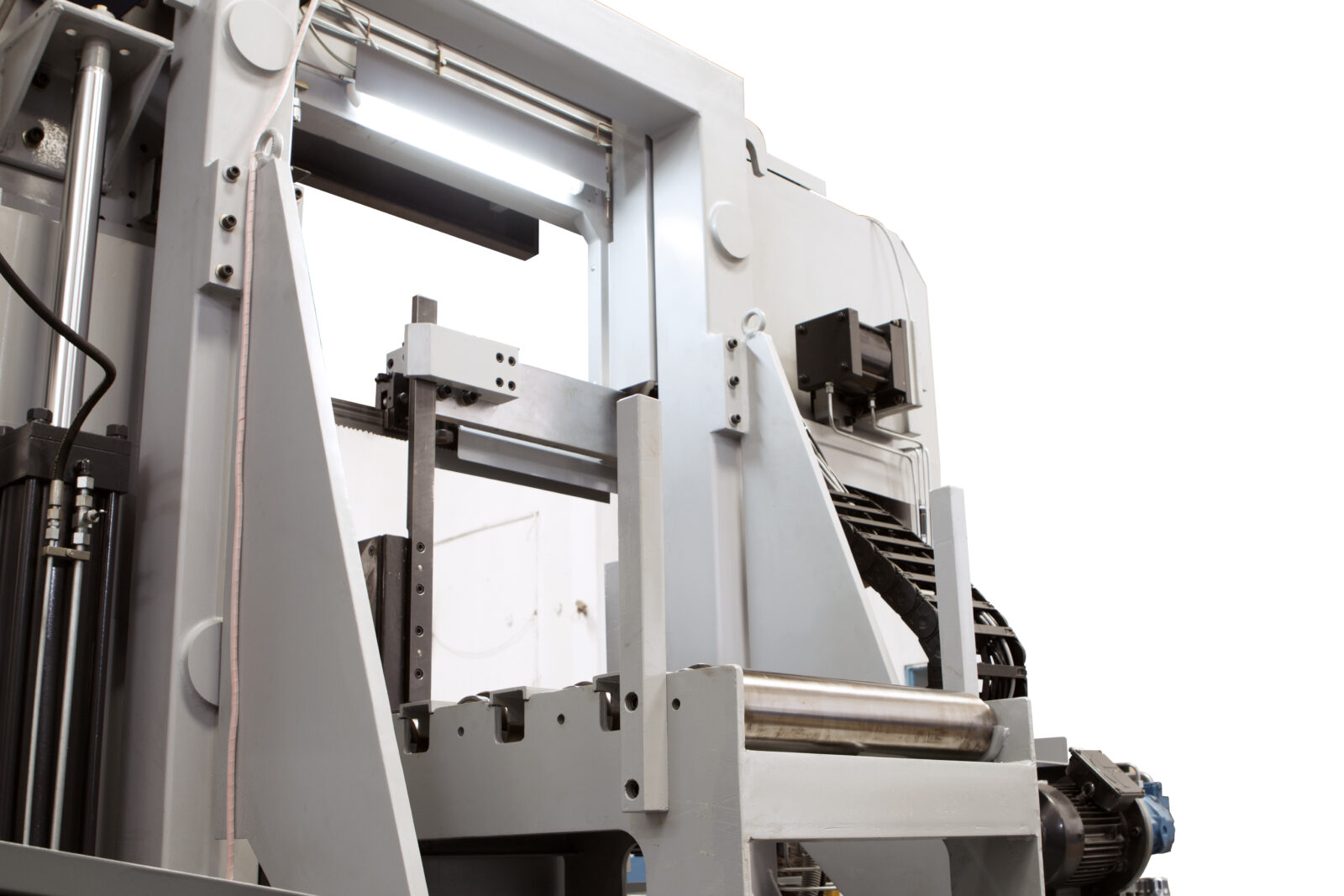

  • Work light

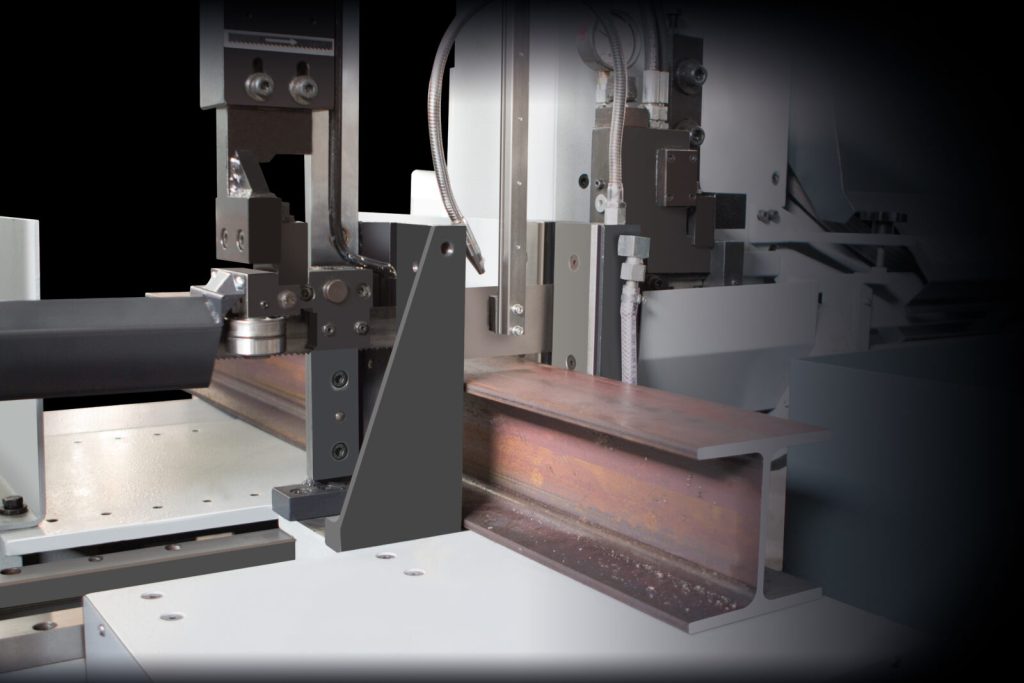

  • Split vice for rigid clamping and burrs free cuts

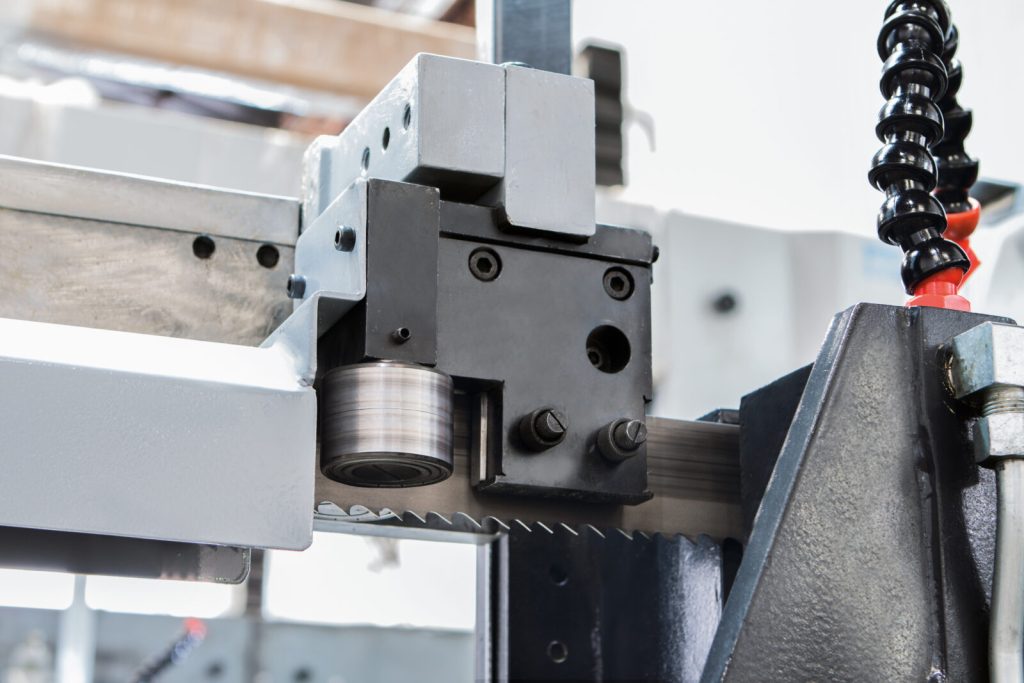

  • Blade guides complete with carbide pads and anti-friction bearings
  • Variable frequency blade speed drive
  • Hydro mechanical sensor to adjust feed without operator involvement

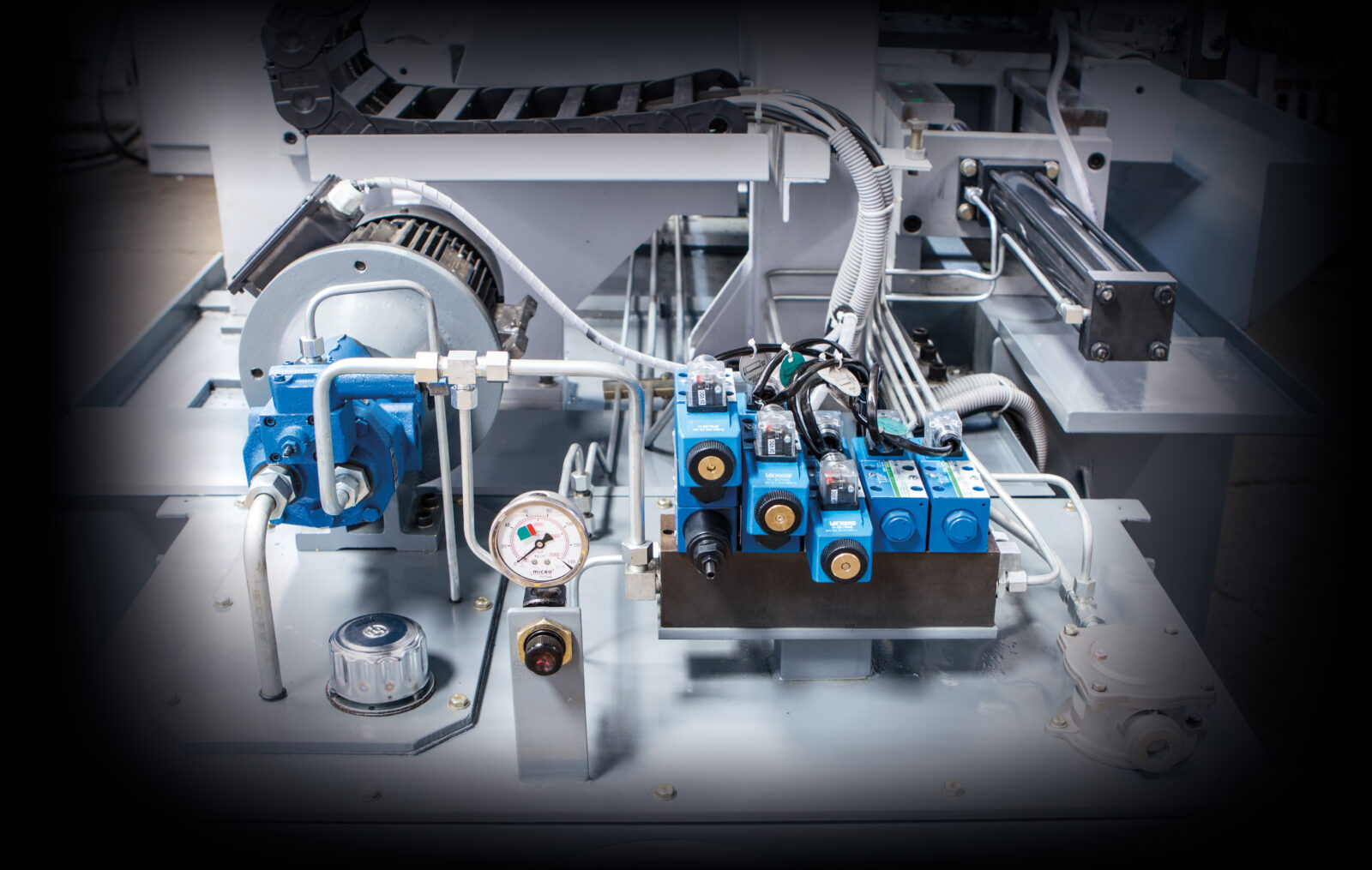

  • Latest generation hydraulic power pack with high efficiency and low consumption
  • Infinitely variable pressure and controlled cutting feed and upward return rapid movement by hydraulic cylinder
  • Auto height stop on return stroke of cutting head
  • Infinitely variable feed control valve. Hydraulic automatic feed regulation to adjust in automatic head feed rate according to size and hardness
  • Automatic machine stops if blade breaks
  • Hydraulically operated main vice with double acting hydraulic cylinder
  • Fast approach of saw head
  • Fast approach blade device

Standard Features

Optional Features

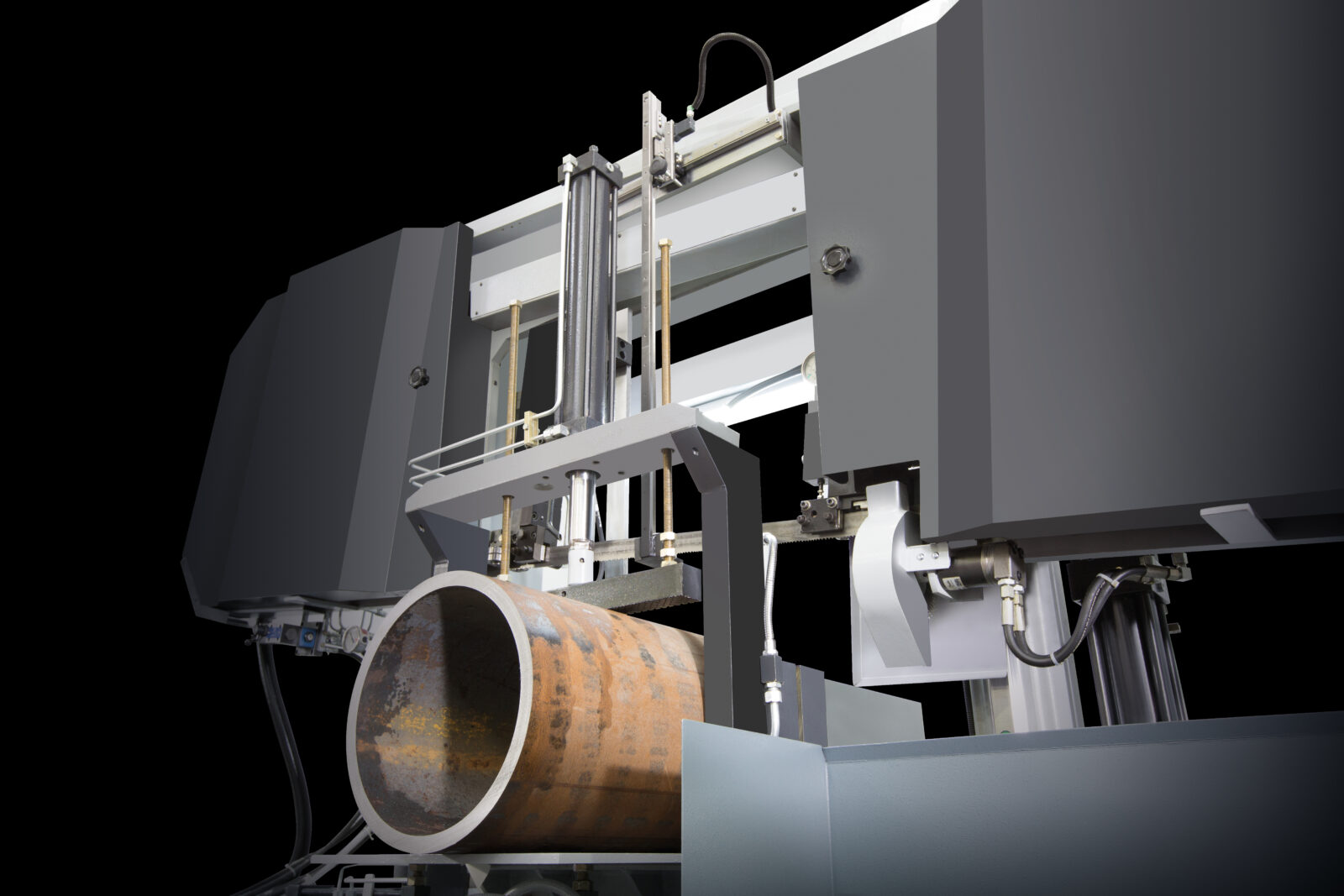

  • Hydraulic bundle clamping
  • 6° canted head
  • Laser light
  • Electronic feed sensor (with PLC)
  • Electronic feed sensor (without PLC)
  • Blade deflection sensor (with PLC)
  • Blade deflection sensor (without PLC)
  • Touch screen HMI
  • Hydraulic blade guide
  • Mist Lubrication
  • Power transformer
Cutting Capacity Round Square Rectangle
0° 860mm 860mm x 860mm 860mm x 520mm
TECHNICAL DATA
Minimum Cut Length (without bundle)
25mm
Minimum clamping
95mm
Max. open vice
870mm
Max. vertical open vice
865mm
Cutting tolerance (horizontal & vertical)
0.1mm/100mm (+/-)
Hydraulic motor
2.2Kw
Blade Motor
15 Kw
Blade Size
9300mm x 67 x 1.6
Blade Speed
20-100 m/min
Machine Dimensions
4370mm x 1900mm x 3020mm
Machine Weight
7200Kg
