MEP Tiger 352 SX Evo – Semi-Automatic Circular Saw Machine
MEP Tiger 352 SX Evo – Semi-Automatic Circular Saw Machine image 1 MEP Tiger 352 SX Evo – Semi-Automatic Circular Saw Machine image 2 MEP Tiger 352 SX Evo – Semi-Automatic Circular Saw Machine image 3 MEP Tiger 352 SX Evo – Semi-Automatic Circular Saw Machine image 4 MEP Tiger 352 SX Evo – Semi-Automatic Circular Saw Machine image 5 MEP Tiger 352 SX Evo – Semi-Automatic Circular Saw Machine image 6 MEP Tiger 352 SX Evo – Semi-Automatic Circular Saw Machine image 7 MEP Tiger 352 SX Evo – Semi-Automatic Circular Saw Machine image 8

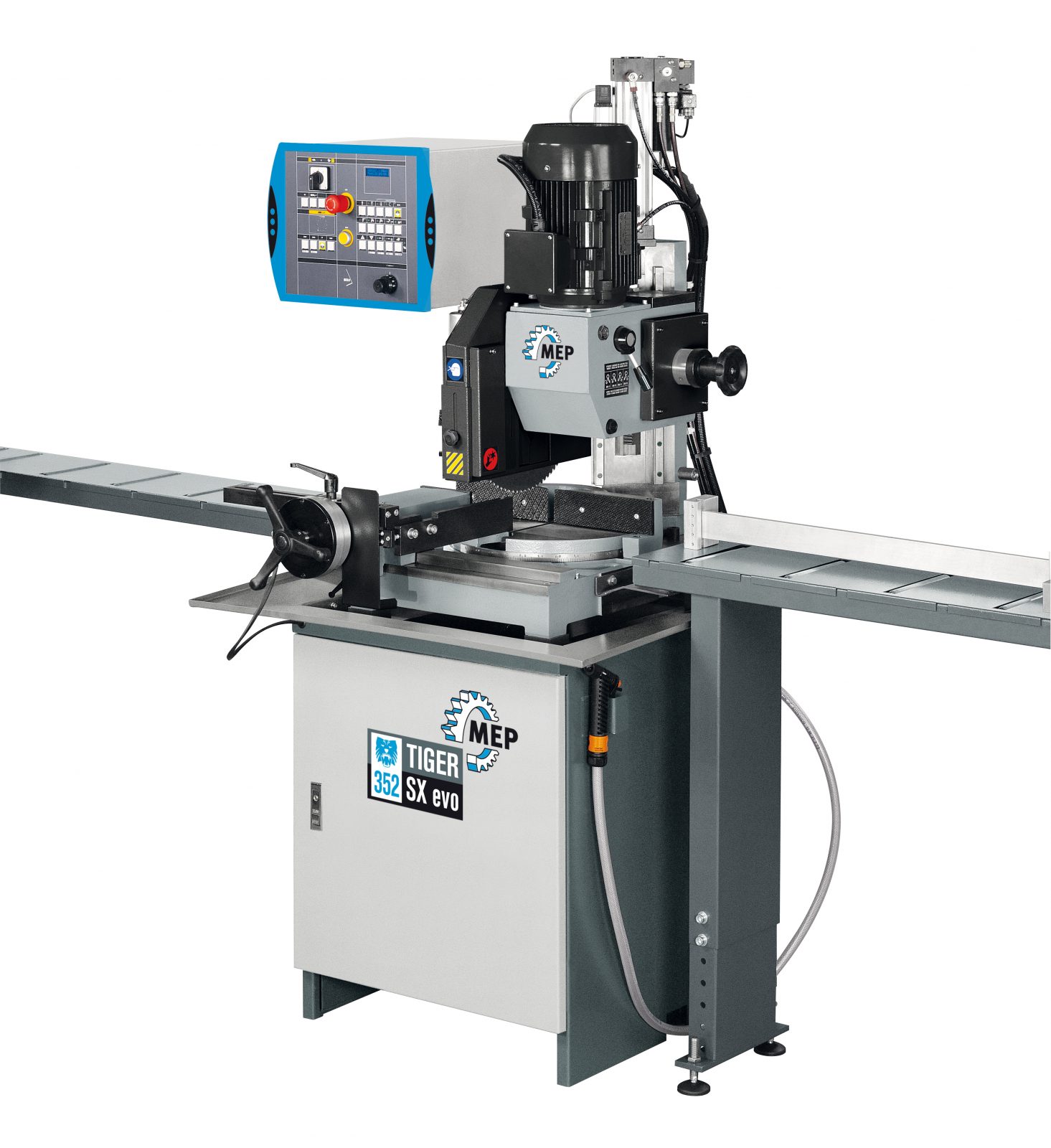

MEP Tiger 352 SX Evo – Semi-Automatic Circular Saw Machine

The MEP Tiger 352 SX EVO is a high-performance vertical circular saw designed for smooth, burr-free cutting of steel tubes, bars, and structural profiles. Perfect for workshops, fabrication facilities, and engineering environments, it combines precision, durability, and versatility for consistent, high-quality results.

Featuring a 350 mm HSS blade, two-way mitre cutting (0°–45° left / 0°–60° right), linear guide saw head, precision turning table, and adjustable pneumatic vice, the Tiger 352 SX EVO ensures accurate angled cuts and secure material handling. Its heavy-duty cast iron construction, two-stage gear transmission, and safety systems deliver reliable, long-lasting performance, making it ideal for small batch production, trim cuts, and component preparation.



Typical Materials Cut

Steel bars and solid round material

Metal tubes and pipes

Structural steel profiles

Square and rectangular sections

Fabrication components and beams



Cutting Capacity

Round material: up to 115 mm

Square material: up to 100 mm

Rectangular sections: approx. 130 × 80 mm at 90°

Enquire about this machine
ISO 9001:2015 certified
25+ years' experience
UK-wide service engineers
Download PDF datasheet

Standard features

350 mm HSS circular saw blade for smooth, bur-free metal cutting
Two-way mitre cutting from 0° to 45° left and 0° to 60°  right for angled cutting applications

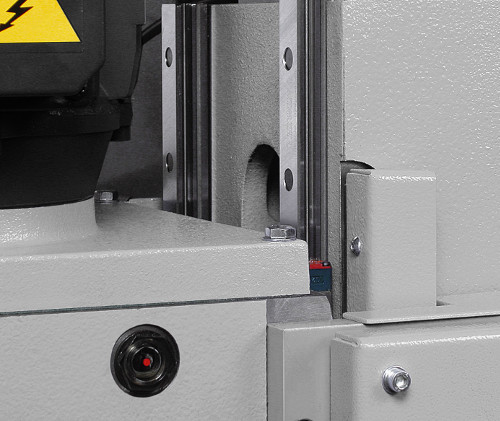

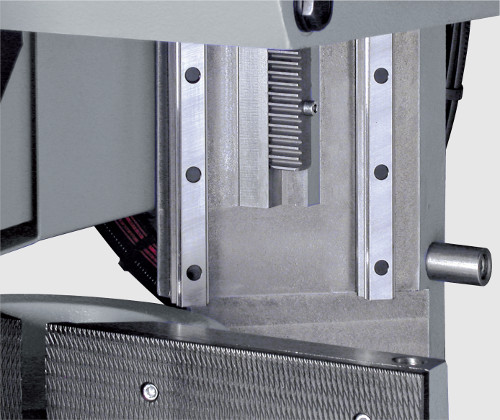

Saw head on linear guides with preload ball screw slides to reduce vibration during the cut

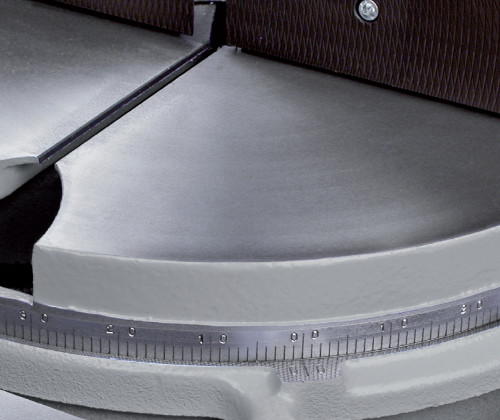

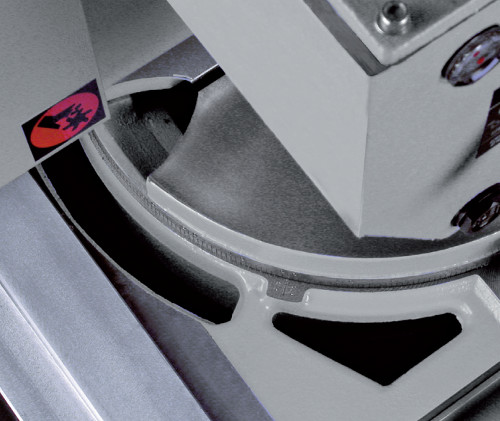

Precision turning table assembled on a central pin and thrust bearing for easy and precise rotation
Pneumatic system for downfeed rate ensuring constant down feed and cut speed run together for a better cutting finish
Vertical pneumatic vice ensures efficient and safe clamping when cutting tubes
Mechanical stop at -45°, 0°, -45°,  and +60°  for quick positioning of the saw head including angles in between
Sliding clamping unit to the right & left of the saw head to safely perform precise mitre cuts
Heavy-duty cast iron construction to minimise vibration, increase cutting stability and longer blade life

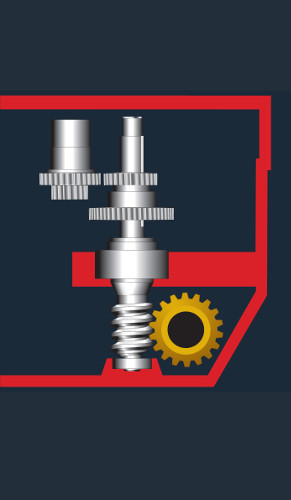

Two stage gear transmission for high cutting efficiency and torque
Engraved metric scale with flip-over length stop for repeatable cutting accuracy
Ability to set the saw head stroke to reduce cutting time
Adjustable steel anti-burr clamping device securing material on both infeed and outfeed sides = burr free cuts
Adjustable pneumatic vice press to adjust clamping pressure according to the hardness of the material to be cut
Safety protection system including thermal relay and minimum tension coil to protect against phase failure
Cutting Capacity
Round material: up to 115 mm
Square material: up to 100 mm
Rectangular sections: approx. 130 × 80 mm at 90°

Optional extras

MA – Pneumatic Vice
Pnuematic Vertica Vice
Foot Pedal for vice control
Spindle speed 30/60/90/180 rpm instead of standard
Supplementary pneumatic vice
Spray mist system
1.5 K200 Roller Table for Infeed and Outfeed
R1, R2 and R3 Measuring system with flip over stop

Cutting capacity

AngleRound (mm)Square (mm)Rectangle (mm)
Electric Motor Three Phase1.8/2.5kW
Blade SizeHSS 350mm X 32mm X 2.5mm
RPM15/30/45/90
Max Open Vice190mm
Machine Dimensions1140mm x 1050mm
Machine Weight410Kg

Technical data

0°
115mm|95mm|180mm x 95mm
+45°
110mm|95mm|125mm x 95mm
+60°
90mm|90mm|90mm x 90mm
– 45°
110|95|125 x 95

Machine in action

MEP Tiger 352 SX Evo – Semi-Automatic Circular Saw Machine

Machine Description

The MEP Tiger 352 SX EVO is a high-performance vertical circular saw designed for smooth, burr-free cutting of steel tubes, bars, and structural profiles. Perfect for workshops, fabrication facilities, and engineering environments, it combines precision, durability, and versatility for consistent, high-quality results.

Featuring a 350 mm HSS blade, two-way mitre cutting (0°–45° left / 0°–60° right), linear guide saw head, precision turning table, and adjustable pneumatic vice, the Tiger 352 SX EVO ensures accurate angled cuts and secure material handling. Its heavy-duty cast iron construction, two-stage gear transmission, and safety systems deliver reliable, long-lasting performance, making it ideal for small batch production, trim cuts, and component preparation.



Typical Materials Cut

  • Steel bars and solid round material
  • Metal tubes and pipes
  • Structural steel profiles
  • Square and rectangular sections
  • Fabrication components and beams



Cutting Capacity

  • Round material: up to 115 mm
  • Square material: up to 100 mm
  • Rectangular sections: approx. 130 × 80 mm at 90°

Standard Features

  • 350 mm HSS circular saw blade for smooth, bur-free metal cutting
  • Two-way mitre cutting from 0° to 45° left and 0° to 60°  right for angled cutting applications
  • Saw head on linear guides with preload ball screw slides to reduce vibration during the cut
  • Precision turning table assembled on a central pin and thrust bearing for easy and precise rotation
  • Pneumatic system for downfeed rate ensuring constant down feed and cut speed run together for a better cutting finish
  • Vertical pneumatic vice ensures efficient and safe clamping when cutting tubes
  • Mechanical stop at -45°, 0°, -45°,  and +60°  for quick positioning of the saw head including angles in between
  • Sliding clamping unit to the right & left of the saw head to safely perform precise mitre cuts
  • Heavy-duty cast iron construction to minimise vibration, increase cutting stability and longer blade life
  • Two stage gear transmission for high cutting efficiency and torque
  • Engraved metric scale with flip-over length stop for repeatable cutting accuracy
  • Ability to set the saw head stroke to reduce cutting time
  • Adjustable steel anti-burr clamping device securing material on both infeed and outfeed sides = burr free cuts
  • Adjustable pneumatic vice press to adjust clamping pressure according to the hardness of the material to be cut
  • Safety protection system including thermal relay and minimum tension coil to protect against phase failure

Cutting Capacity

  • Round material: up to 115 mm
  • Square material: up to 100 mm
  • Rectangular sections: approx. 130 × 80 mm at 90°

Optional Features

  • MA – Pneumatic Vice
  • Pnuematic Vertica Vice
  • Foot Pedal for vice control
  • Spindle speed 30/60/90/180 rpm instead of standard
  • Supplementary pneumatic vice
  • Spray mist system
  • 1.5 K200 Roller Table for Infeed and Outfeed
  • R1, R2 and R3 Measuring system with flip over stop
Cutting Capacity (mm) Round Square Rectangle
0° 115mm 95mm 180mm x 95mm
+45° 110mm 95mm 125mm x 95mm
+60° 90mm 90mm 90mm x 90mm
– 45° 110 95 125 x 95
TECHNICAL DATA
Electric Motor Three Phase
1.8/2.5kW
Blade Size
HSS 350mm X 32mm X 2.5mm
RPM
 15/30/45/90
Max Open Vice
190mm
Machine Dimensions
1140mm x 1050mm
Machine Weight
410Kg
