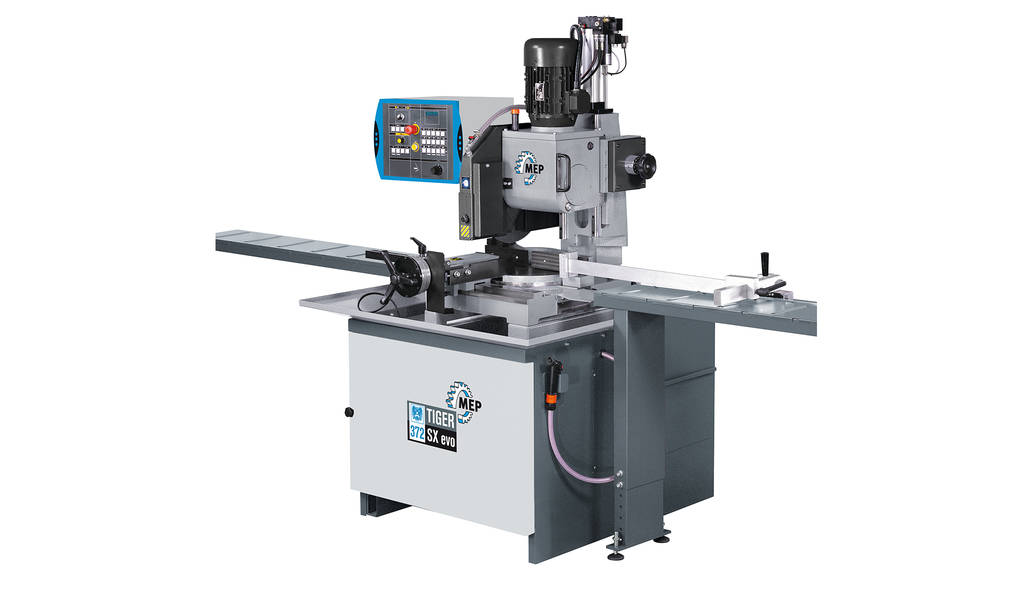

TIGER 372 SX EVO, electropneumatic semi-automatic vertical sawing machine with HSS blade to cut steels mitering from -45° to +60°.
Technical Data
Blade motor power -5.0 Kw – Three-phase
Blade Size – HSS 370 x 32 x 3 mm
Blade rotation speed – 15 ÷ 150 rpm

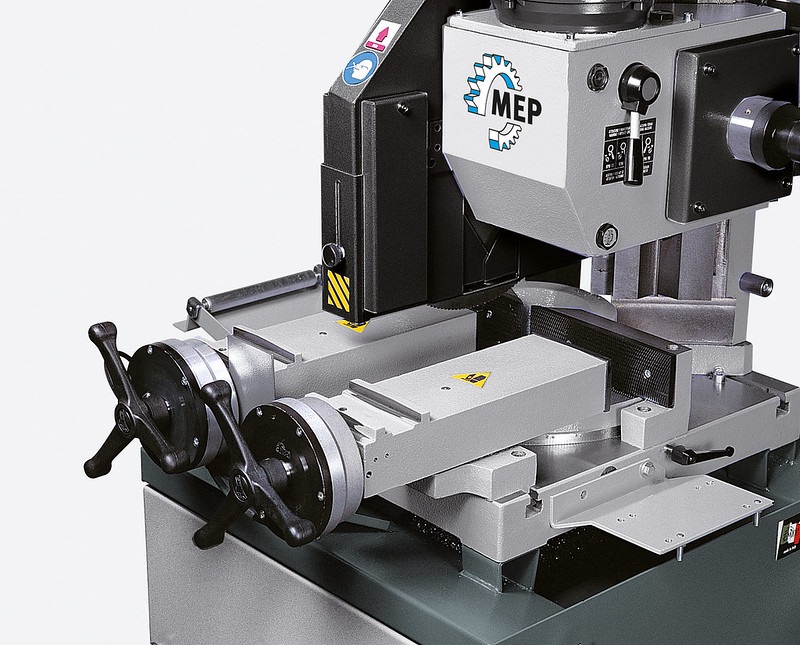

Max Open Vice
190 mm
Machine Weight
600 kg
| Cutting capacity | Ø | Profile tube | Profile Box Section | Profile Rectangle | Solid Round Bar | Solid Square Bar | Solid Rectangular Bar |
|---|---|---|---|---|---|---|---|
| 0° | 370 | 120 mm | 110 mm | 180 x 100 mm | 120 mm | 110 mm | 180 x 100 mm |
| + 45° | 370 | 115 mm | 100 mm | 120 x 100 mm | 70 mm | 70 mm | 70 x 70 mm |
| + 60° | 370 | 115 mm | 90 mm | 90 x 90 mm | 50 mm | 50 mm | 50 x 50 mm |
| – 45° | 370 | 115 mm | 100 mm | 120 x 100 mm | 70 mm | 70 mm | 70 x 70 mm |
