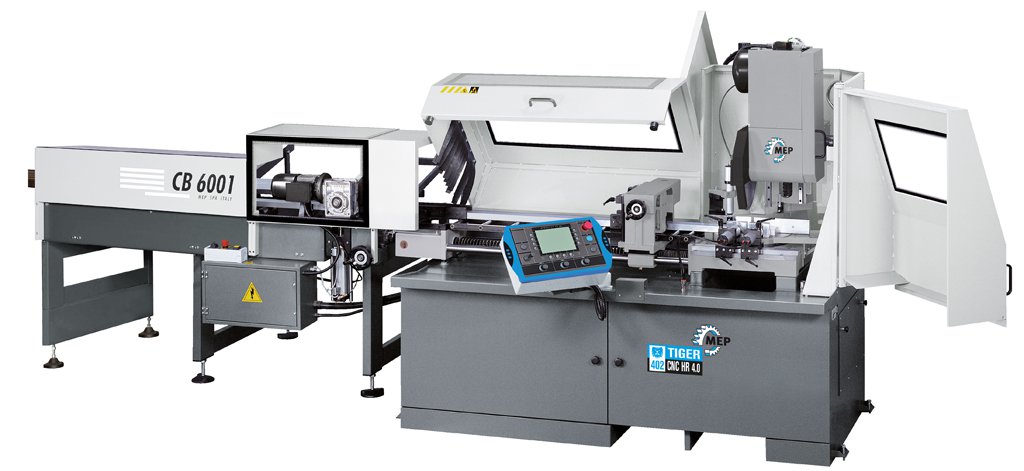

MEP Tiger 402 CNC HR 4.0 RC – Automatic Circular Saw Machine

Machine Description

ABSOLUTE EFFICIENCY

The two working modes (semi-automatic and automatic ones) allow to perform any kind of cut in the most efficient way.

The control allowing to store up to 300 cutting programs, each one with different quantities and lengths, minimizes programming time of regular jobs.

The automatic acquisition of the saw head cutting start position reduces setting time.

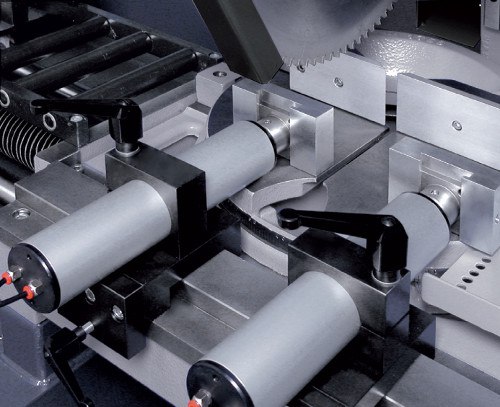

The clamping unit, which is equipped with both two horizontal pneumatic cutting-off vices sliding on the left and right side of the blade and a vertical vice, ensures an efficient and safe clamping of the material even in case of tube cutting, thus granting a burr-free cut.

The transmission system equipped with pulleys and toothed belts allows cutting at high speed thus ensuring exceptional blade stiffness and longer blade life.

The brushless motor for the programmable automatic rotation of the saw head mitering between -45° and +60° coupled with the encoder reader allow a precise control in speed, torque and positioning – tolerance 1′.

EXCEPTIONAL FLEXIBILITY

The material library allows the automatic setting of the blade speed (S) and head down feed rate (F) according to the type of material. Moreover, from the extendable material library, you can choose the type and the geometry of the material, the hardness and the type of blade. Accordingly, the control sets the right blade speed and head down feed rate.

The two-speed motor (1400/2800 rpm) for the HM disc rotation allows to cut any section of material in an efficient way.

The bar feeder with single stroke 1000 mm is repeatable to cut at any length.

Standard Features

Optional Features

Optional Features

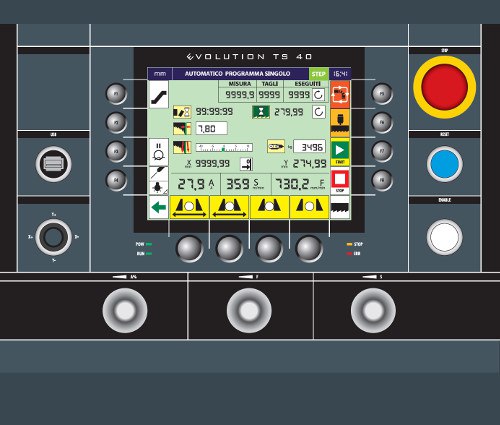

  • 8” touch screen display operator interface and push buttons for all functions of the sawing machine. It is simple and intuitive with a self-learning feature, it guarantees a reliable use and it controls all cutting parameters in real time.
  • Panel with low tension controls: polyester membrane keypad with tactile thermo-shaped buttons which give out an acoustic signal when pressed.
  • The headstroke, according to the dimensions of the material which has to be cut, is set directly from the control panel.

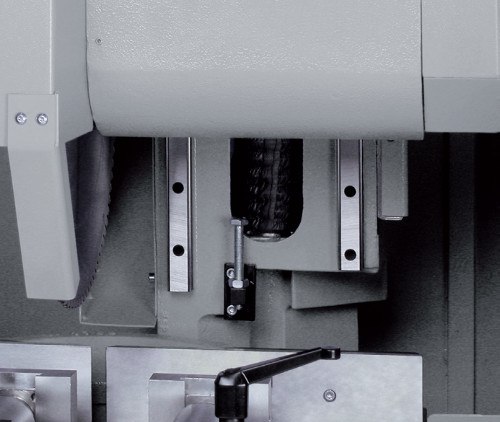

  • Sawing head movement on double linear guide with preloaded slides with recirculating ballscrews.
  • The headstroke, according to the dimensions of the material which has to be cut, is set directly from the control panel.
  • Head down stroke by means of pneumatic cylinder with coaxial hydraulic brake to obtain the maximum cutting rigidity.
  • Shearing stress control.
  • Transmission system with serrated  pulleys and belts.
  • Blade rotation with 2-speed motor at 1400/2800 rpm.
  • Automatic device to lubricate the blade only when the machine is cutting.
  • Rotation pin with thrust bearing to grant rotation precision and stability.

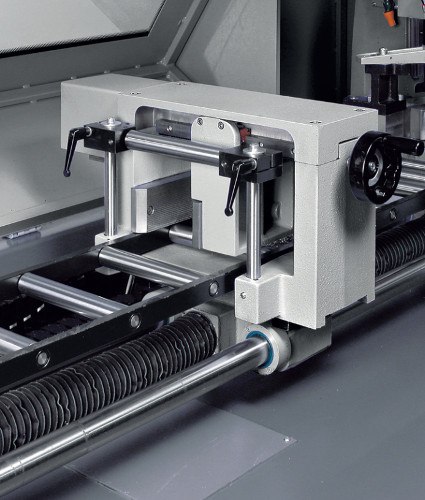

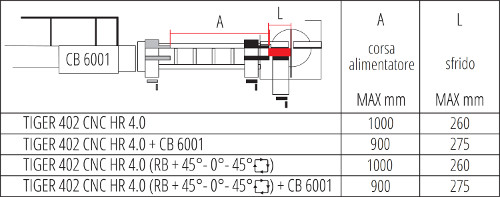

  • Bar feeder has a length of 1000 mm and consists in a system given by screw/nut with recirculating ballscrews with stepper motor and vice with sideways movement so as to feed in also deformed bars.
  • Chip conveyor predisposed to mount optional chip collector.
  • Pneumatic double locking vice.
  • Pneumatic vertical vice.
  • Indicator with flashing light in case cycle is stopped.
  • Control and function system protected against in-going and/or out-going electrical and electromechanical phenomenon.
  • Machine arranged for handling with movement equipment.
  • Circular blade Ø 400 mm.
  • Service keys and instructions manual for maintenance and spare parts list.
Cutting capacity
Ø 400 Round Square Rectangle
0° 130 mm 120 mm 180 x 100 mm
45° left 115 mm 100 mm 120 x 100 mm
60° left 115 mm 90 mm 90 x 90 mm
45° right 115 mm 100 mm 120 x 100 mm
