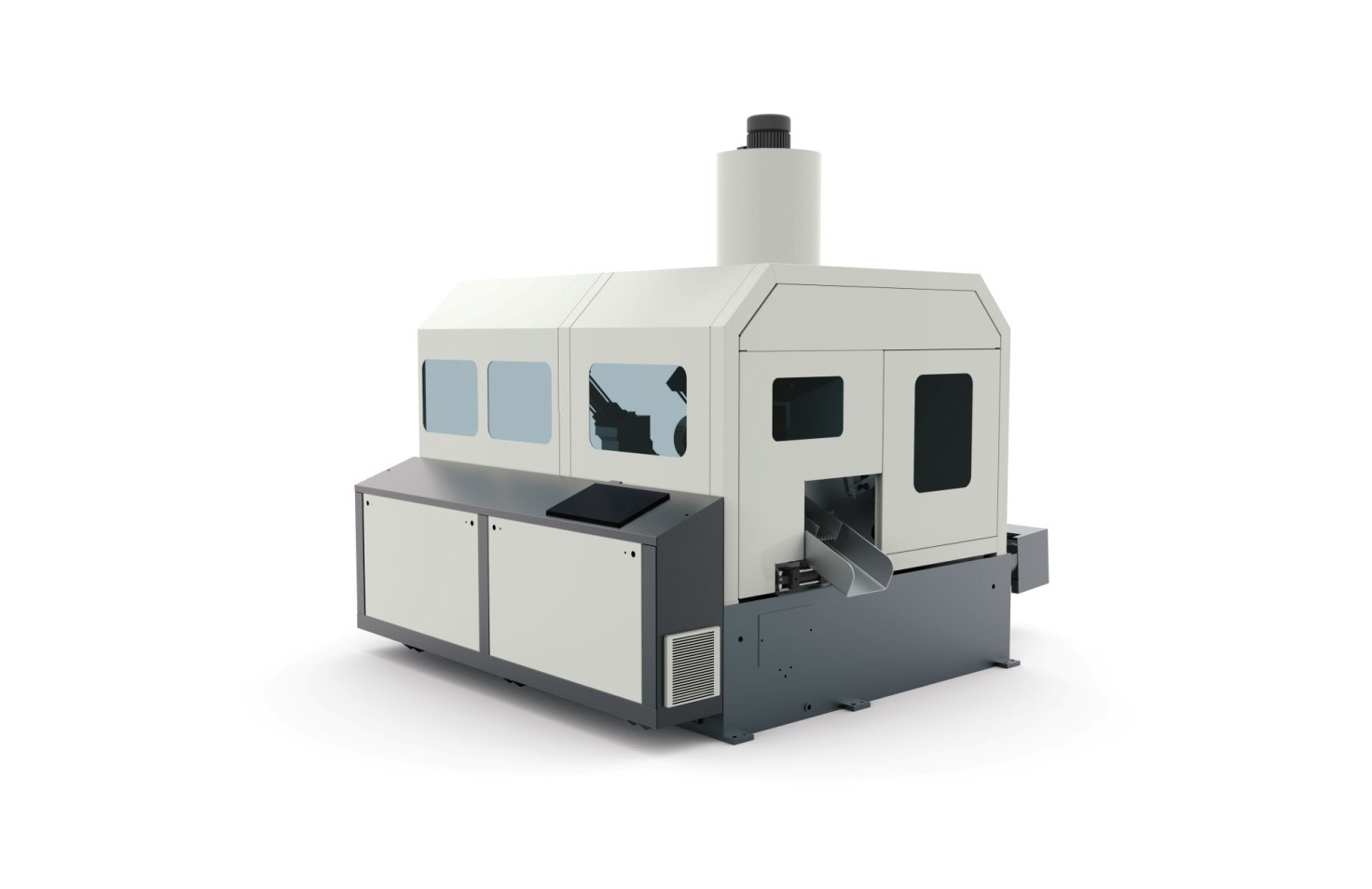

MEP Velocex 80 – Automatic High-Speed Circular Saw Machine

MINIMUM USE OF RESOURCES TO MAXIMIZE PROFIT!

Highly efficient and productive high speed circular sawing machine for use with tungsten carbide tipped saw blade.

0° cuts, suitable for metals, ferrous & non-ferrous materials to cut solid / structural – section round / square / rectangular / hollow tubes at 0°

Capacity: 10-80 mm

“USER FRIENDLY” PROGRAMMING OF CUTTING CYCLES:

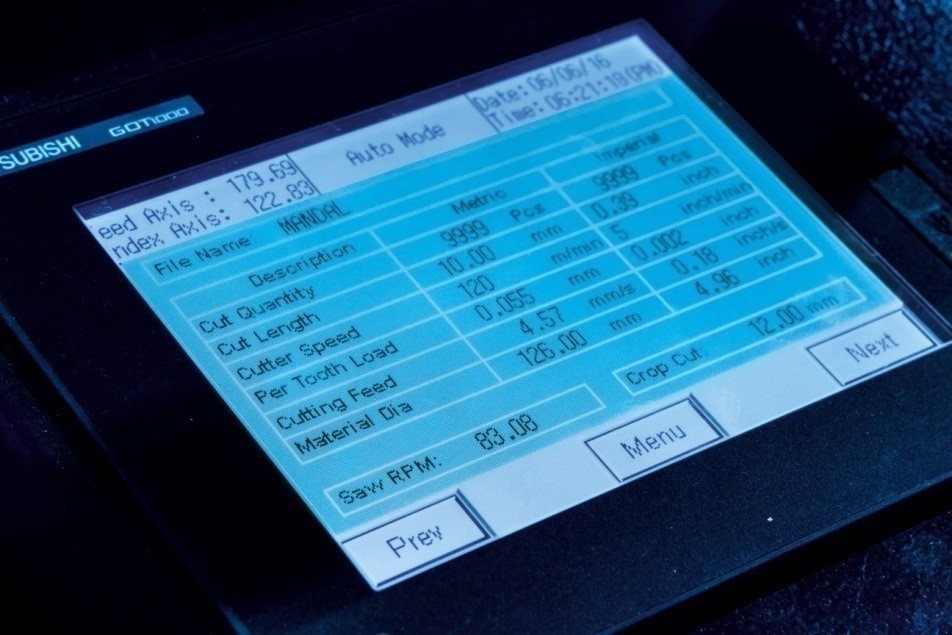

• PLC & Colour touch screen HMI (Mitsubishi): easy operation and maintenance, HMI display features cut completed, program number in use, current drawn by motor with adjustable overload shut-off, feed rate, load per tooth, blade speed, number of cuts to be cut, job size, cut length can be set, cutting time, cycle time & number of cuts completed.
• For sections and tubes special feature to slow the downfeed and return
• “Set up wizard” for easy setup of jobs.
• 200 program can be saved with a 12-digit name.
• Comprehensive steel grades menu with capability to program additional custom material grades.
• Job monitoring with cycle time, job duration, parts count, tool life counter.
• Up to 5 different cut off lengths per bar.
• Bar optimization by repeating same sequence per bar.
• Manual operation for all moveable units and easy control.
• Saw speed can be changed.
• Auto home facility to achieve-conditions for automatic operation.
• Error codes displayed with detailed explanation and diagnostics of all input, outputs and axis parameters.
• Material detection sensor

PRODUCTIVITY

• Bar loader for storage and loading of the bars into the shuttle infeed.

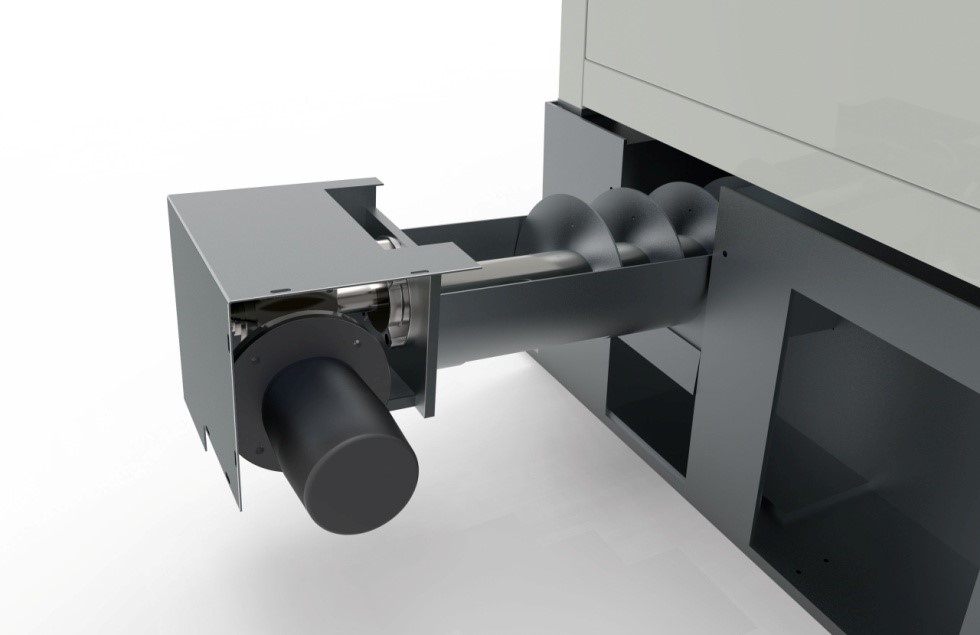

• Swarf conveyor for all type of materials with max discharge height of 400mm

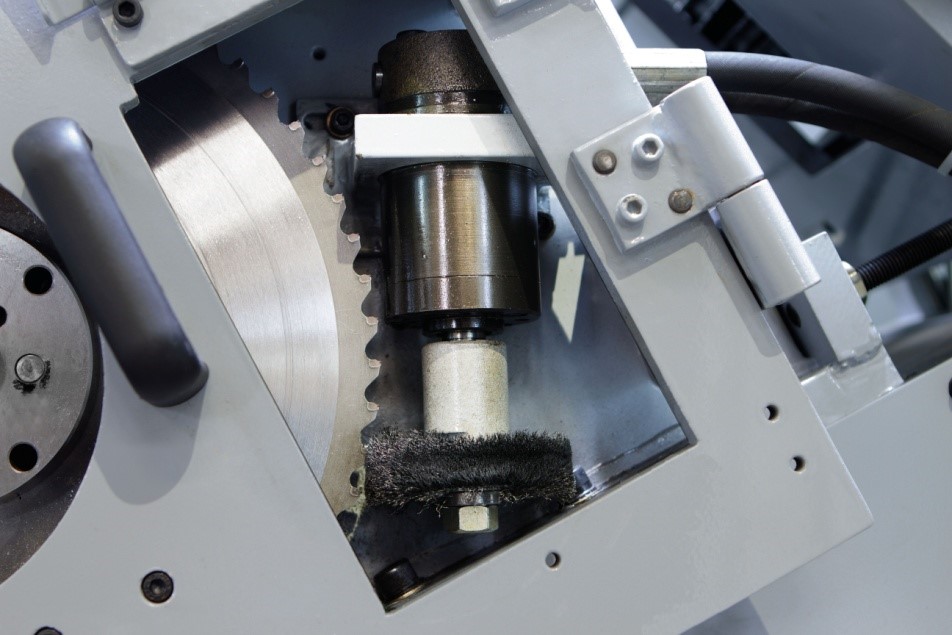

• Hydraulic wire chip brush for constant removal of chips from the blade teeth granting a longer blade life.
• Automatic oil lubrication of the most critical moving parts
• Low oil level detection sensor to avoid any stop in the production process or the saw blade dry cutting

PRECISION

• Trim cuts and remnants are sorted automatically from good parts via heavy-duty discharge sorting chute (single point adjustment of bar diameter)
• Automatic retraction of bar
• Easily replaceable Wear resistant carbide blade guides

SAFETY

• Machine is completely enclosed.
• All access doors on the saw have electronic interlocks which stops the saw should the doors be open during saw use.

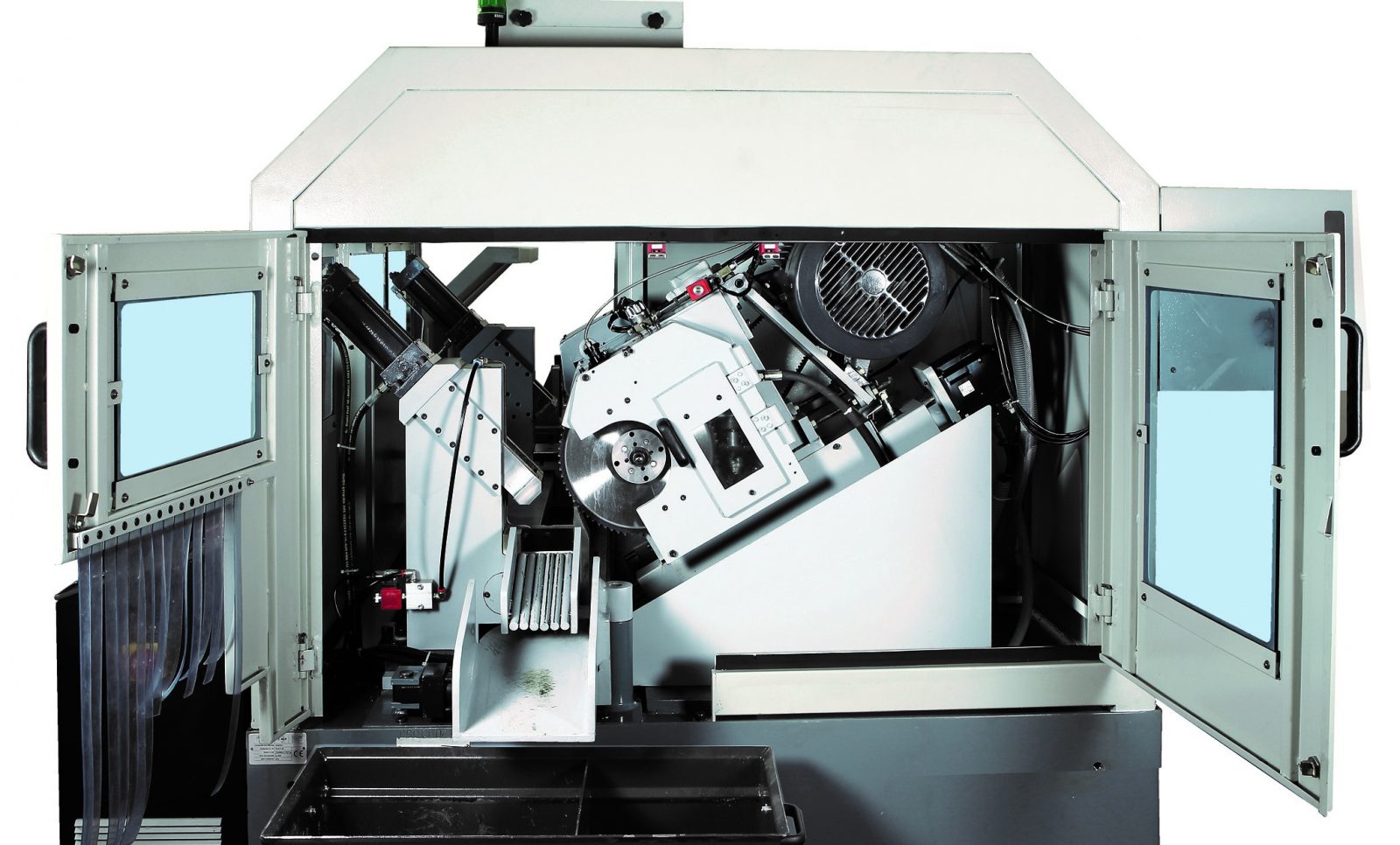

• Front access door opens on hinges to allow complete and easy access for blade change.
• Low pneumatic pressure shut down sensor switch for spray mist

ADVANCED TECHNOLOGY FOR HIGH PERFORMANCE AT HIGH SPEED

• AC servo driven ball screw arrangement.
• Variable cutting speed with frequency drive and rpm display.
• Electromagnetic Powder Break to eliminate gearbox backlash and enhance blade life.
• Saw head slides on heavy duty Roller LMG bearings with ball screw.

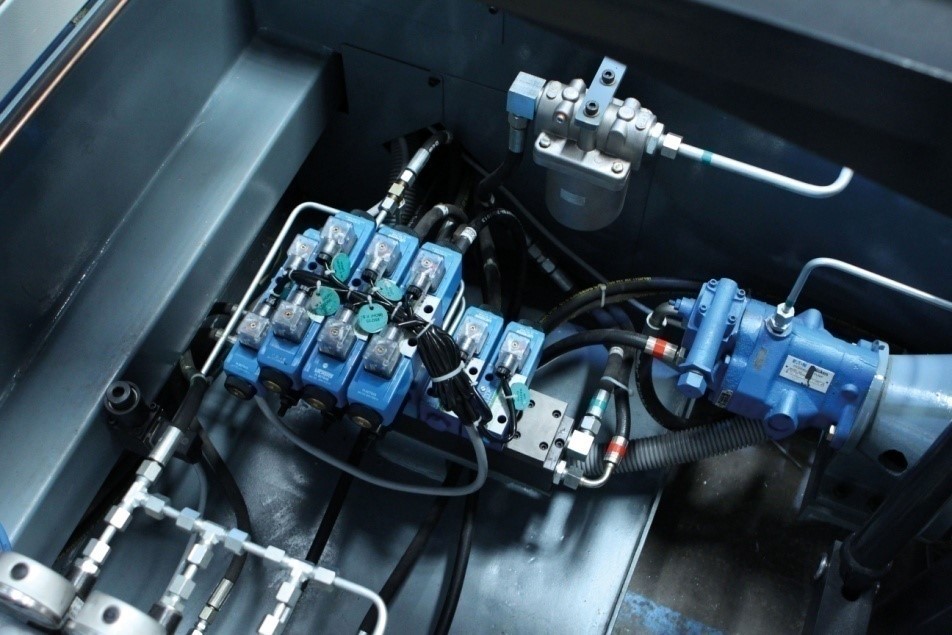

LATEST GENERATION HYDRAULIC POWER PACK, WITH HIGH EFFICIENCY AND LOW CONSUMPTION.

Few specifications:

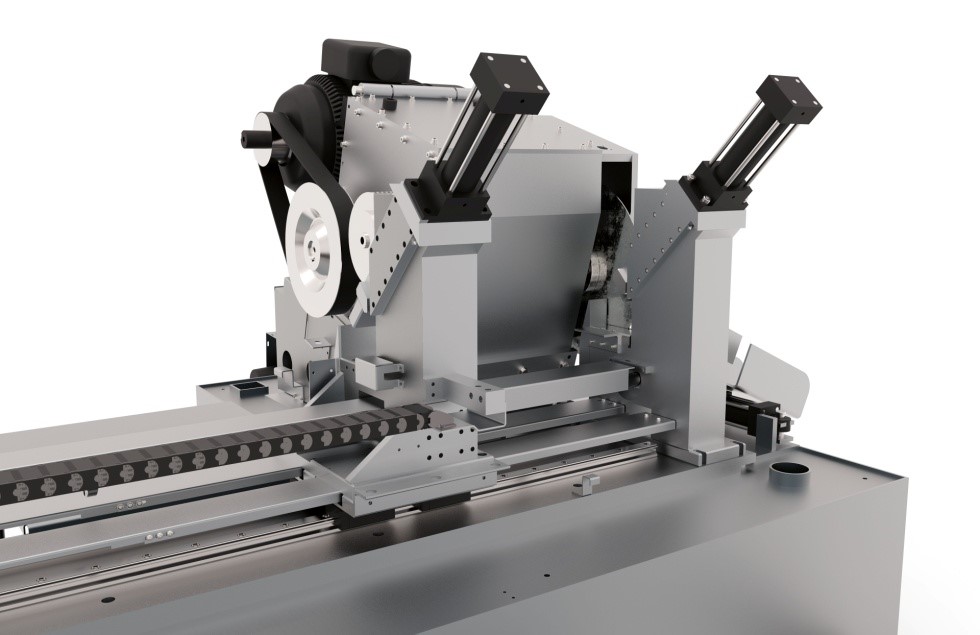

• Electric motor is directly coupled to the reduction Gear Box trough-timing pulley & Belt and inclined cutter drive arrangement is mounted on inclined Linear Guides in order to have the most suitable touch of the blade into the material.
• Electro Magnetic Particle Clutch is provided for good finish and enhanced tool life.
• The blade feed is controlled by ball screw and servo motor.

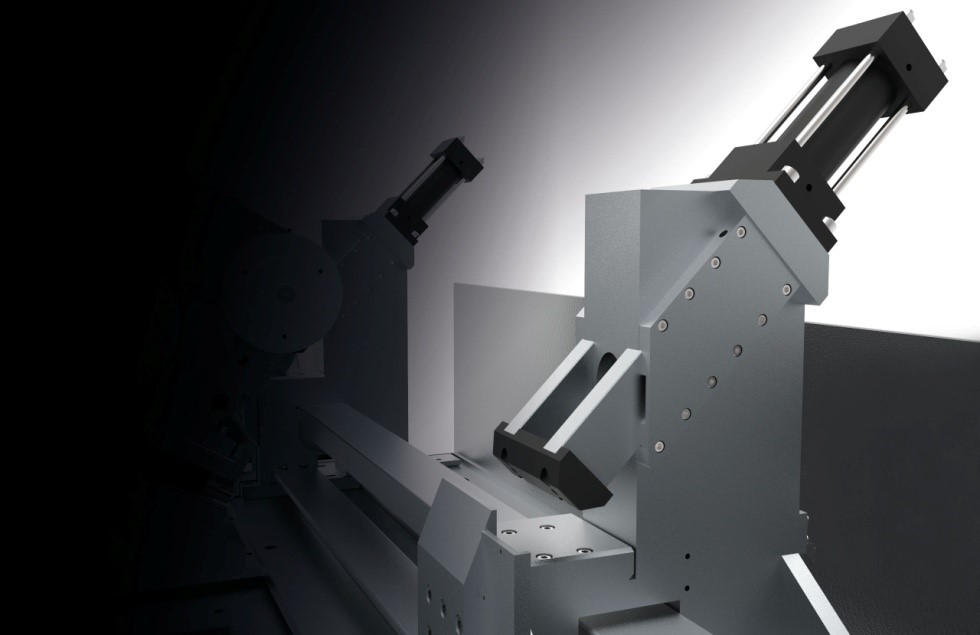

• Hydraulic, full stroke, inclined clamp cylinders with pressure regulators.
• Highly wear resistant hardened and ground tool alloy steel clamping Jaws on both sides of Saw blade.
• Inclined clamping is used on shuttle system to index raw material stock of desired length.
• The shuttle stroke is 1000 mm controlled by Ball Screw & Servo motor. Special feature is provided wherein for small piece cutting, shuttle vice remains clamped until it reaches the end position to optimize productivity.
• Thin cut pc up to 6 mm possible on model up to Velocex 100
• Material feed carriage mounted on linear guides, driven by a ball screw and AC servo drive.
• New bar entry in main vice made contact free by hydraulically lifting the bar in shuttle (Velocex 65-80) or through a sliding self-adjusting device (Velocex 100-125-150-175)
• Ergonomical machine designed provides ample space for blade change, regular check up and preventive maintenance.
