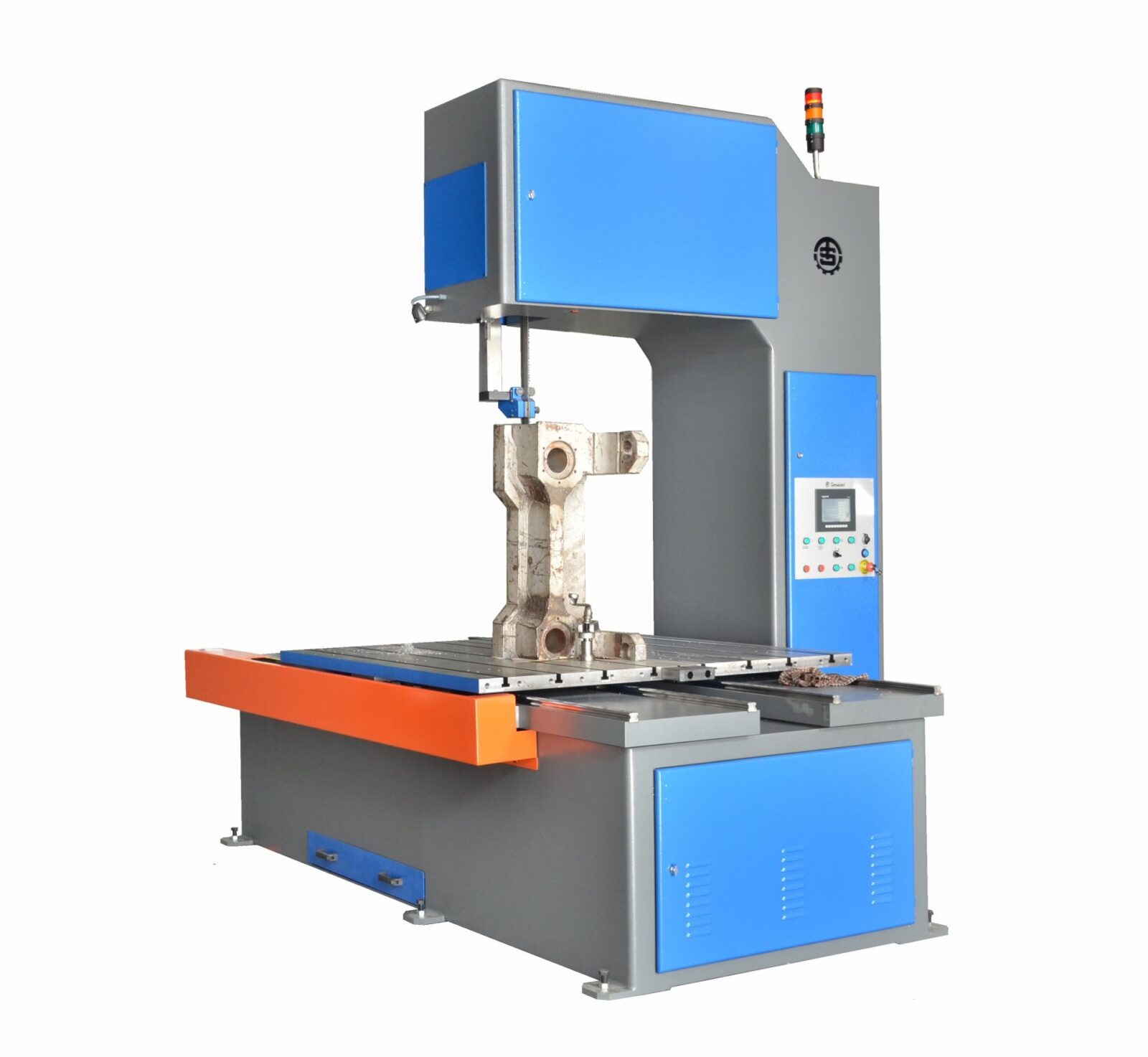

DK 2000 LS is a Vertical Block Plate Metal Cutting Bandsaw machine designed for heavy duty industrial use. This machine was designed to high capacity of cutting on less floor area to save the customers place. With a capacity of 810mm with a hydrualic strok up to 2000mm.
For more information on Temelsan’s range, give us a call or visit their website https://www.temelsan.com/
Basic Equipment
Heavy-duty Rigid Frame
Frequency Invertor
Hydraulic Table
Hydraulics-control with Electro-valve
Hydraulic Bandsaw Tensioning System
Stops Running upon Bandsaw Blade Breakage
1 pc. of Bandsaw Blade on the Machine
Chips protection
Workpiece Hydraulic Clamping Vises

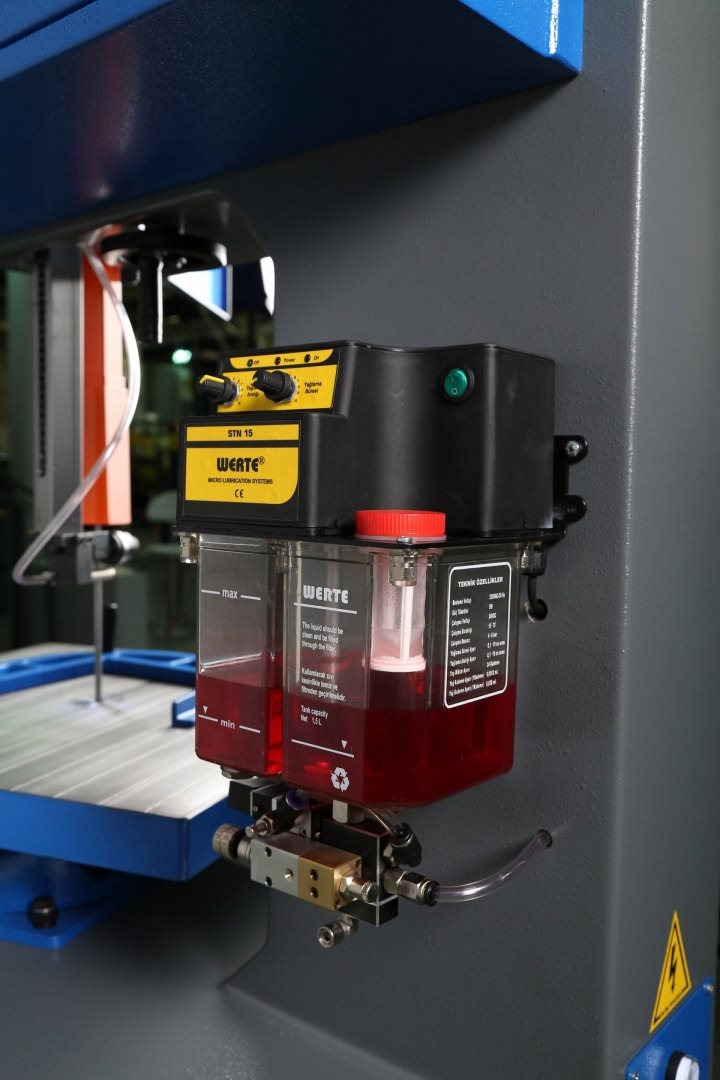

Mist Spray Unit
Cutting with Liquid Coolant
Chips Absorbtion System Pipe
| Technical Data | ||
|---|---|---|
| Main Motor Power | kW | 10 Kw |
| Total Power | kW | 20 Kw |
| Table Dimensions | mm | 1600 x 2000 |
| Cutting Height | mm | 810 |
| Throat Width | mm | 800 |
| Hydraulic Table Stroke | mm | 2000 |
| Band Saw Speed Control | Speed Adjustment with under | control of Frequency Invertor |
| Cutting Speed | Will be calculated on cutting application | |
| Max. Load Capacity on Table | kg | 5.000 |
| Table Height | mm | 890 |
| Floor Space | mm x mm | 2400 x 3900 |
| Overall Height | mm | 2600 |
| Weight | kg | 8.000 |
