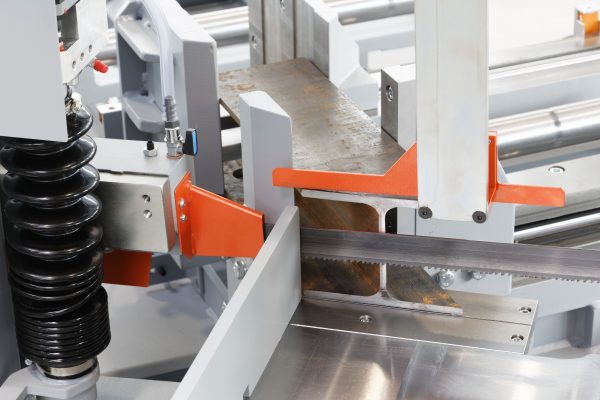

MEBA ECO 335 GA NC Automatic Straight Cutting Bandsaw

Product Information

MEBA SAW LOGO
Capacity: 500mm x 335mm
Download Product PDF Contact Us
PRODUCT OPTIONS
  • Laser Light
  • Driven Swarf Brush
  • MEBA spray mist system
  • Hydraulic clamping pressure regulator
  • Hydraulic bundle clamping (full stroke width)
  • Control panel mounted seperately
  • Zero face positioning (Bar end finder)
  • LED Work light
  • Hydraulic saw blade clamping
  • Swarf conveyor
  • Swarf bucket
  • Roller track also available for infeed and outfeed
TECHNICAL DATA

  • 45° L

  • –

  • 90°

  • Ø 335mm

    500mm x 335mm

  • 45° R

  • Ø 335mm

    320mm x 335mm

  • 30° R

  • Ø200mm

    200mm x 335mm

  • motor

  • 3.0 Kw AC

  • Saw blade size

  • 4400mm x 34mm x 1.1mm

  • Saw blade speed

  • 15-150 m/min

  • length of remaining piece without bundle clamp

  • manual: 65mm

    automatic: 120mm

  • length of remaining piece with bundle clamp

  • manual: 165mm

    automatic: 275mm



  • max. material size with bundle clamp

  • Ø 320 / 500 x 320 mm

  • shortest Ø

  • 5mm

  • Dimensions

  • 2000mm x 2800mm x 2000mm

  • Working Height

  • 750mm

  • Weight

  • 1510Kg
