MEP Shark 652 SXI H 5.0 Semi Automatic Bandsaw

The MEP Shark 652 SXI H 5.0 is a twin column semi automatic bandsaw with two way mirting up to 60 degrees each side. Ideal for production customers cutting pipes and beams up to 650mm x 450mm.

• Two options available:
  • Manual Positioning: Saw head rotation is moved by a handle and hydraulic brake to lock the head position
  • Automatic Positioning: Programming of the cutting angle from the electrical control panel with automatic hydraulic locking system

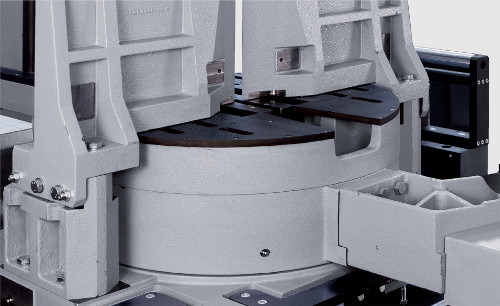

• Cast Iron structure to absorb vibration, stability and increased blade life
• 9.2Kw blade motor
• Variable blade drive 15 to 150m/min
• Coolant flood system
• Work light and laser projector to position the material accurately
• Saw head stroke operated by double hydraulic cylinders on linear guides with ball bearings and pre loaded slides

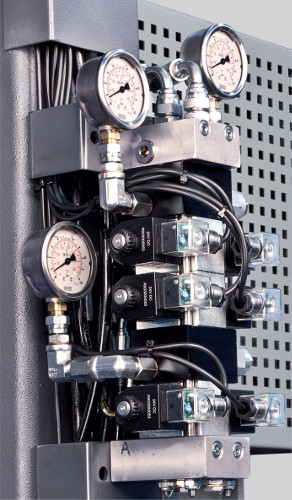

• Lastest generation hydraulic control unit with high efficiency and low energy consumption
• 7″ touch screen
• Hydraulic cutting vices to clamp the material on both sides, and one vertical hydraulic cylinder
• powered swarf brush

• Powered swarf conveyor
• Hydraulic pop up roller left and right
• spray mist system
• powered and idler conveyors – contact us for more details

• Cutting Capacity (mm)

• Round

• Square

• Rectangle

• 0°

• 450mm

• 450mm

• 650mm x 450mm

• 45° Left

• 400mm

• 400mm

• 400mm x 450mm

• 60° Left

• 250mm

• 250mm

• 250mm x 450mm

• 45° Right

• 400mm

• 400mm

• 400mm x 450mm

• 60° Right

• 250mm

• 250mm

• 250mm x 450mm

• TECHNICAL DATA

• Electric Motor Single Phase

  Electric Motor Three Phase

• N/A

  9.2 KW

• Blade Size

• 6700mm x 41 x 1.3

• Variable Blade Speed – Single Phase

  Variable Blade Speed – Three Phase

• N/A

  15/150 m/min

• Machine Dimensions

• 3400mm x 3000mm

• Machine Weight

• 3300Kg
