MEP Tiger 352 SX Evo Semi Automatic Pull Down Circular Saw

MEP Tiger 352 SXI EVO Semi-Automatic vertical circular saw machine. Featuring a capacity of 180mm x 95mm and mitring 0.60° left and 0-45° right.

• Multifunction display for machine parameters
• Diagnostic display and alarms
• Work height set directly from control panel
• Double set of gears to obtain high performance

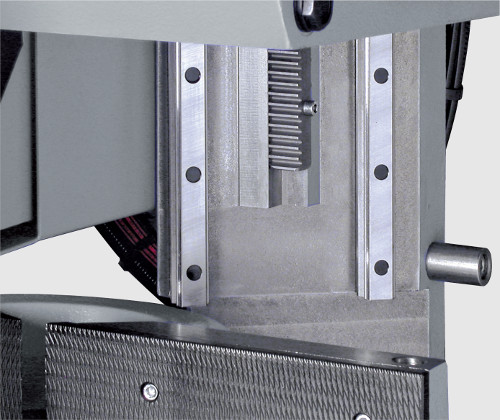

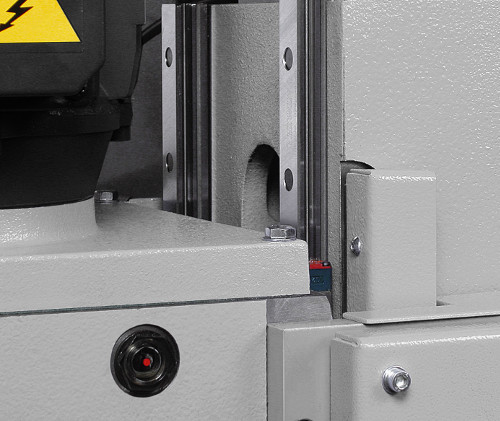

• Head movement on double linear guides
• Coaxial cylinder with bypass valve for fast approach and linear transducer for head position reading

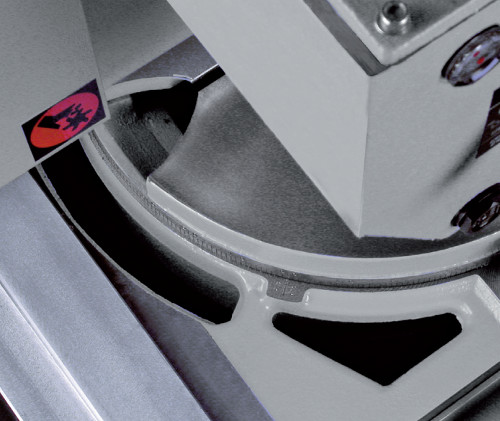

• Rotating table on a centre pin with axial bearing which allows high precision when setting the cutting angle
• Pneumatic vertical vice

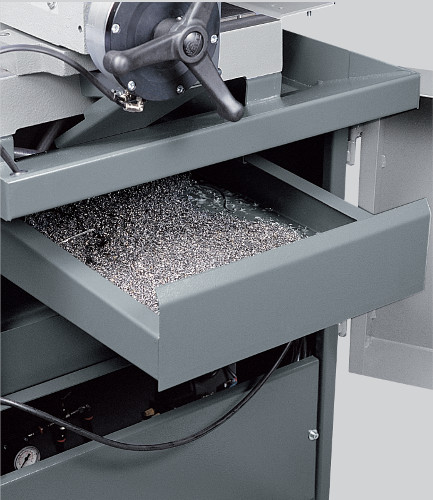

• Steel base with swarf drawer and removable coolant tray
• Electric coolant pump
• Chip brush for blade cleaning
• Measuring rod with scale for repeat cutting

• MA – Pneumatic Vice
• Pnuematic Vertica Vice
• Foot Pedal for vice control
• Spindle speed 30/60/90/180 rpm instead of standard
• Supplementary pneumatic vice
• Spray mist system
• 1.5 K200 Roller Table for Infeed and Outfeed
• R1, R2 and R3 Measuring system with flip over stop

• Cutting Capacity (mm)

• Round

• Square

• Rectangle

• 0°

• 115mm

• 95mm

• 180mm x 95mm

• +45°

• 110mm

• 95mm

• 125mm x 95mm

• +60°

• 90mm

• 90mm

• 90mm x 90mm

• – 45°

• 110

• 95

• 125 x 95

• TECHNICAL DATA

• Electric Motor Three Phase

• 1.8/2.5kW

• Blade Size

• HSS 350mm X 32mm X 2.5mm

• RPM

• 15/30/45/90

• Max Open Vice

• 190mm

• Machine Dimensions

• 1140mm x 1050mm

• Machine Weight

• 410Kg
